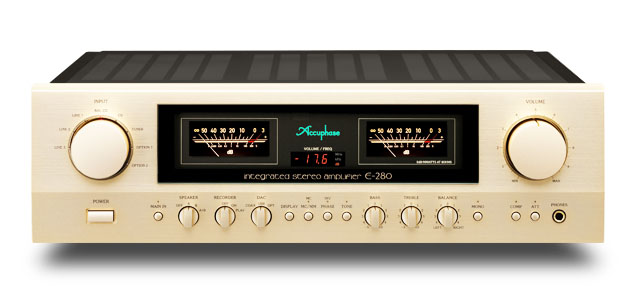

The AAVA volume control builds upon the knowledge of high-end equipment to control volume without loss of information. The power amplification section utilizes the instrumentation amplifier principle to create an ideal speaker driver. The low impedance design of the output circuitry brings out the full potential of every speaker. Two option boards can be added for improved expandability. The E-280 sound performance will defy the imagination.

• AAVA volume control
• Power amplification stage with bipolar transistors in double parallel push-pull configuration
• Rated for 120 watts into 4 ohms and 90 watts into 8 ohms
• High damping factor of 500
• Power amplification stage configured as instrumentation amplifier
• Current feedback amplification topology in power amplification stage
• Logic-control relays for shortest signal paths
• Strong power supply with massive high-efficiency transformer and large filtering capacitors
• Protection circuitry using MOS-FET switches

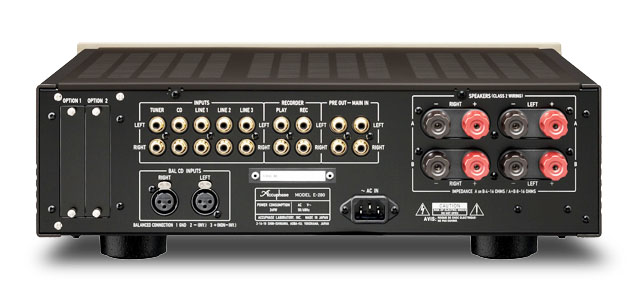

• Two rear panel expansion slots allow use of option boards

Continuous Average Output Power (both channels driven, 20-20,000 Hz): 120 watts per channel into 4 ohms, 105 watts per channel into 6 ohms, 90 watts per channel into 8 ohms

Total Harmonic Distortion (both channels driven, 20-20,000 Hz): 0.05% with 4 to 16-ohm load

Intermodulation Distortion: 0.01%

Frequency Response: HIGH LEVEL INPUT/POWER INPUT 20 - 20,000 Hz +0, -0.5 dB (for rated continuous average output), 3 - 150,000 Hz +0, -3.0 dB (for 1 watt output)

Damping Factor: 500 (For rated output with 8-ohm load, 50 Hz)

Output Voltage, Output Impedance (at rated continuous average output): PRE OUTPUT: 1.07 V, 50 ohms

Gain: HIGH LEVEL INPUT →　PRE OUTPUT : 18 dB, POWER INPUT →　OUTPUT: 28 dB

Tone Controls Turnover frequency and adjustment range: BASS: 300 Hz ±10 dB (50 Hz), TREBLE: 3 kHz ±10 dB (20 kHz)

Loudness Compensation: +6 dB (100 Hz)

Attenuator: －20 dB

Power Level Meters: Logarithmic compression, peak reading meters, output dB and % scale

Load Impedance: 4 - 16 ohms

Stereo Headphones:Suitable impedance: 8 ohms or higher

Power Requirements: AC 230 V 50 Hz (Voltage as indicated on rear panel)

Power Consumption: 46 watts idle 245 watts in accordance with IEC 60065

Maximum Dimensions: Width 465 mm x Height 151 mm x Depth 420 mm

Mass: 20.0 kg net, 26.0 kg in shipping carton
