The E-380 realizes a 20% increase in rated output power thanks to a reinforced power amplification stage and power supply. The further evolved AAVA volume control system allows music enjoyment at any level without even the slightest degradation of signal quality. The power amplifier section utilizes the instrumentation amplifier principle to achieve outstanding S/N ratio. Low impedance design of the output circuitry results in a damping factor of 500, ensuring that the potential of every speaker can be brought out to the fullest. Enjoy a musical performance of amazing transparency and dynamism.

由于功率放大级和电源增强，E-380 的额定输出功率提高了 20%。进一步改进的 AAVA 音量控制系统可让您在任何级别享受音乐，而信号质量丝毫不会降低。功率放大器部分利用仪表放大器原理实现出色的信噪比。输出电路的低阻抗设计可实现 500 的阻尼系数，确保每个扬声器的潜力都能得到最大发挥。享受令人惊叹的透明度和动态的音乐表演。

• AAVA volume control
• Power amplification stage with bipolar transistors in double parallel push-pull configuration
• Rated for 180 watts into 4 ohms and 120 watts into 8 ohms
• High damping factor of 500
• Power amplification stage configured as instrumentation amplifier
• Current feedback amplification topology in power amplification stage
• Logic-control relays for shortest signal paths
• Strong power supply with massive high-efficiency transformer and large filtering capacitors
• Protection circuitry using MOS-FET switches

• AAVA 音量控制
• 功率放大级采用双并联推挽配置的双极晶体管
• 额定功率为 180 瓦（4 欧姆）和 120 瓦（8 欧姆）
• 高阻尼系数 500
• 功率放大级配置为仪表放大器
• 功率放大级中的电流反馈放大拓扑
• 逻辑控制继电器，用于最短信号路径
• 强大的电源，配备大量高效变压器和大型滤波电容器
• 使用 MOS-FET 开关的保护电路

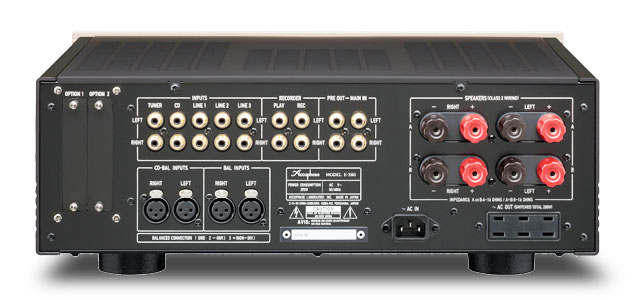

The pre-amp section uses Accuphase's AAVA system, which offers extremely accurate and linear volume control. The output circuit is low impedance, with a damping factor of 500, ensuring that each speaker can be optimally driven. The E-380 is equipped with a number of inputs, including balanced XLR, unbalanced RCA, recorder and headphones. A remote control is also available for easy and convenient control.

前置放大器部分采用 Accuphase 的 AAVA 系统，提供极其精确和线性的音量控制。输出电路阻抗低，阻尼系数为 500，确保每个扬声器都能得到最佳驱动。E-380 配备了多个输入，包括平衡 XLR、非平衡 RCA、录音机和耳机。还提供遥控器，可轻松方便地进行控制。

The E-380 is a high-quality integrated amplifier that delivers world-class audio performance. It is ideal for audiophiles who want the best in sound quality.

E-380 是一款高品质集成放大器，可提供世界一流的音频性能。它是追求最佳音质的发烧友的理想之选。

Here are some of the benefits of using the Accuphase E-380 balanced stereo integrated amplifier:

• Absolute level audio performance
• High power
• Extremely accurate and linear volume control
• Low impedance output circuit with a damping factor of 500
• Wide range of inputs
• Remote control included

If you're looking for a high-quality integrated amplifier that delivers world-class audio performance, the Accuphase E-380 is the perfect choice for you.

以下是使用 Accuphase E-380 平衡立体声集成放大器的一些好处：

• 绝对级别的音频性能
• 高功率
• 极其精确和线性的音量控制
• 阻尼系数为 500 的低阻抗输出电路
• 广泛的输入范围
• 包括遥控器

如果您正在寻找一款能够提供世界一流音频性能的高品质集成放大器，Accuphase E-380 是您的完美选择。

Specifications:

• Output Power: 120 watts per channel into 8Ω (stereo)
• Frequency Response: 20Hz to 20kHz
• Total harmonic distortion: 0.05%
• Damping factor: 500
• Input sensitivity: 155mV (line)
• Signal-to-noise ratio: 109 dB (line)
• Output: 1,23V (pre out)
• Speaker load impedance: 4Ω to 16Ω
• Size: x 465 171 422 mm x
• Weight: 22,8 kg

规格：

• 输出功率：每声道 120 瓦，8Ω（立体声）
• 频率响应：20Hz 至 20kHz
• 总谐波失真：0.05%
• 阻尼系数：500
• 输入灵敏度：155mV（线路）
• 信噪比：109 dB（线路）
• 输出：1.23V（预输出）
• 扬声器负载阻抗：4Ω 至 16Ω
• 尺寸：x 465 171 422 毫米 x
• 重量：22.8 千克
