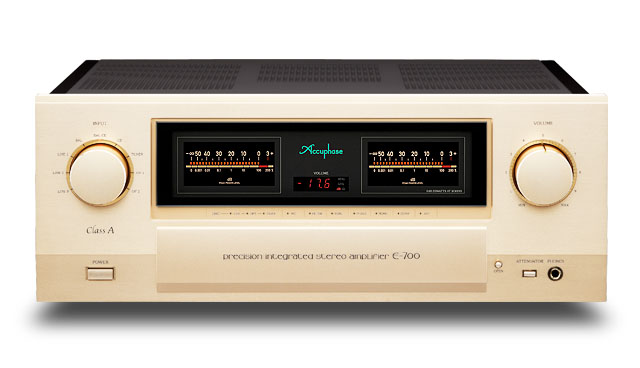

The E-700 is an evolutionary integrated amplifier that incorporates numerous technologies from our 50th anniversary flagship model, the E-800. The preamplifier section uses a Balanced AAVA type volume control with ANCC to create a balanced configuration from input to output and achieve driving perfection. The power amp stage that drives the speakers has been fortified from three elements to four, further increasing reliability. Experience the full breadth of emotion in live performances with the E-700’s superior expression.

• Integrated amplifier with fully balanced configuration from input to output
• Balanced AAVA type volume control
• High-accuracy, high-rigidity volume sensor construction
• Power amplification stage configured as an instrumentation amplifier
• Four-fold parallel push-pull configuration using power MOS-FETs driven in Class A
• Linear power output of 35watts into 8ohms, 70 watts into 4ohms, or 140 watts into 2ohms
• 160 W output into 1-ohm load (music signals)
• High damping factor of 1,000
•  Strong power supply with high-efficiency toroidal transformer and large filtering capacitors
• Protection circuitry using MOS-FET switches

SPECS

Rated Continuous Average Output Power (both channels operating simultaneously, 20 - 20,000 Hz): 150 W/ch  1-ohm load (music signal only), 140 W/ch  2-ohm load, 70 W/ch  4-ohm load, 35 W/ch  8-ohm load

Total Harmonic Distortion (both channels operating simultaneously, 20 - 20,000 Hz): 0.05% 2-ohm load, 0.03% 4 to 16 ohm load

Intermodulation Distortion: 0.01%

Frequency Response: HIGH LEVEL INPUT, At rated continuous average output: 20  -   20,000 Hz ＋0, –0.5 dB, MAIN IN, At rated continuous average output:  20  -   20,000 Hz ＋0, –0.2 dB, At 1 watt output:3  - 150,000 Hz ＋0, –3.0 dB

Damping Factor: 1000 (with 8-ohm load, 50 Hz)

Input sensitivity and impedance (rated output/1W output/Impedance): High Level input -77.7mV/14.2mV/20kΩ, Balanced Input -77.7mV/14.2mV/40kΩ, Main In Line-0.617V/113mV/20Ω, Main In Balanced -0.617V/113mV/40kΩ

Output Voltage and Impedance: PRE OUTPUT 0.617 V, 50 ohms (at rated continuous average output)

Gain: HIGH LEVEL INPUT → PRE OUTPUT :18 dB, MAIN IN → OUTPUT: 28 dB

Tone Controls - Turnover frequency and adjustment range: BASS; 300 Hz   ±10 dB (50 Hz),TREBLE; 3 kHz   ±10 dB (20 kHz)

Loudness compensator: ＋6dB（100 Hz)

Attenuator: ─20 dB

S/N Ratio, Input-converted Noise (SN ratio at rated output/SN ratio EIA): High level Input - 102dB/97dB, Balanced input - 102dB/97dB, Main In - 117dB/101dB

Bar Meter: Represents output voltage value (dB) using 26 points With meter on/off switching function

Output Load Impedance: 2 to 16 ohms

Stereo Headphones Suitable impedance: 8 ohms or higher

Power Requirements: 230v AC, 50Hz

Dimensions (WxHxD, mm): 465 x 191 x 428

Weight: 25.3kg net, 32kg shipped
