• Best-in-Class Sound: Amplifier tech inspired by our flagship Edge M monobloc delivers an incredibly wide, detailed soundstage. Be moved by your music like never before.
  • Power With Control: 100 Watts per channel of perfectly tuned Class AB amplification skilfully drives even the most demanding speakers with ease.
  • Digital Connectivity: Get your TV, CD, USB drives and more connected via HDMI eARC, TOSLINK, Coaxial & USB Audio digital inputs
  • Balanced XLR Inputs: Enjoy the best possible analogue sound quality with these premium analogue connections.
  • ESS ES9018K2M SABRE32 DAC: For exceptional digital-to-analogue conversion; tuned in London like no other for peak performance.
  • Bluetooth aptX HD: Wirelessly connect devices such as the Alva TT V2 turntable and stream in glorious hi-def quality.
  • Power Amp Mode: For use with a dedicated preamp or as part of a multi-channel system.
  • Dual Speaker Zones: Why limit the fun to just one room? Two sets of speaker outputs offer a second zone option.
  • 一流的声音：受我们旗舰 Edge M 一体式放大器技术启发的放大器可提供令人难以置信的宽广、细腻的音场。前所未有地沉浸在音乐中。
  • 功率与控制：每通道 100 瓦完美调谐的 AB 类放大器可轻松驱动要求最苛刻的扬声器。
  • 数字连接：通过 HDMI eARC、TOSLINK、同轴和 USB 音频数字输入连接电视、CD、USB 驱动器等
  • 平衡 XLR 输入：使用这些高级模拟连接享受最佳模拟音质。
  • ESS ES9018K2M SABRE32 DAC：实现卓越的数模转换；在伦敦进行调音，可实现无与伦比的最佳性能。
  • 蓝牙 aptX HD：无线连接 Alva TT V2 转盘等设备，并以出色的高清质量播放。
  • 功率放大器模式：用于专用前置放大器或作为多通道系统的一部分。
  • 双扬声器区域：为什么要将乐趣限制在一个房间内？两组扬声器输出提供第二个区域选项。
  •

Different Class

Boosted by trickledown technology from our flagship Edge M monobloc power amplifier, EXA100 uses its 100W of beautifully refined Class AB amplification to drive even high-end speakers with ease.

Effortless power with bags of control.



不同级别


EXA100 采用了我们旗舰 Edge M 一体式功率放大器的涓流技术，使用 100W 精致的 AB 类放大器轻松驱动高端扬声器。

轻松控制，功率强大。

Sounding Great Since 1968

Back in the Summer of Love, our P40 amplifier was the very first to feature a toroidal transformer – and transformed audio forever.

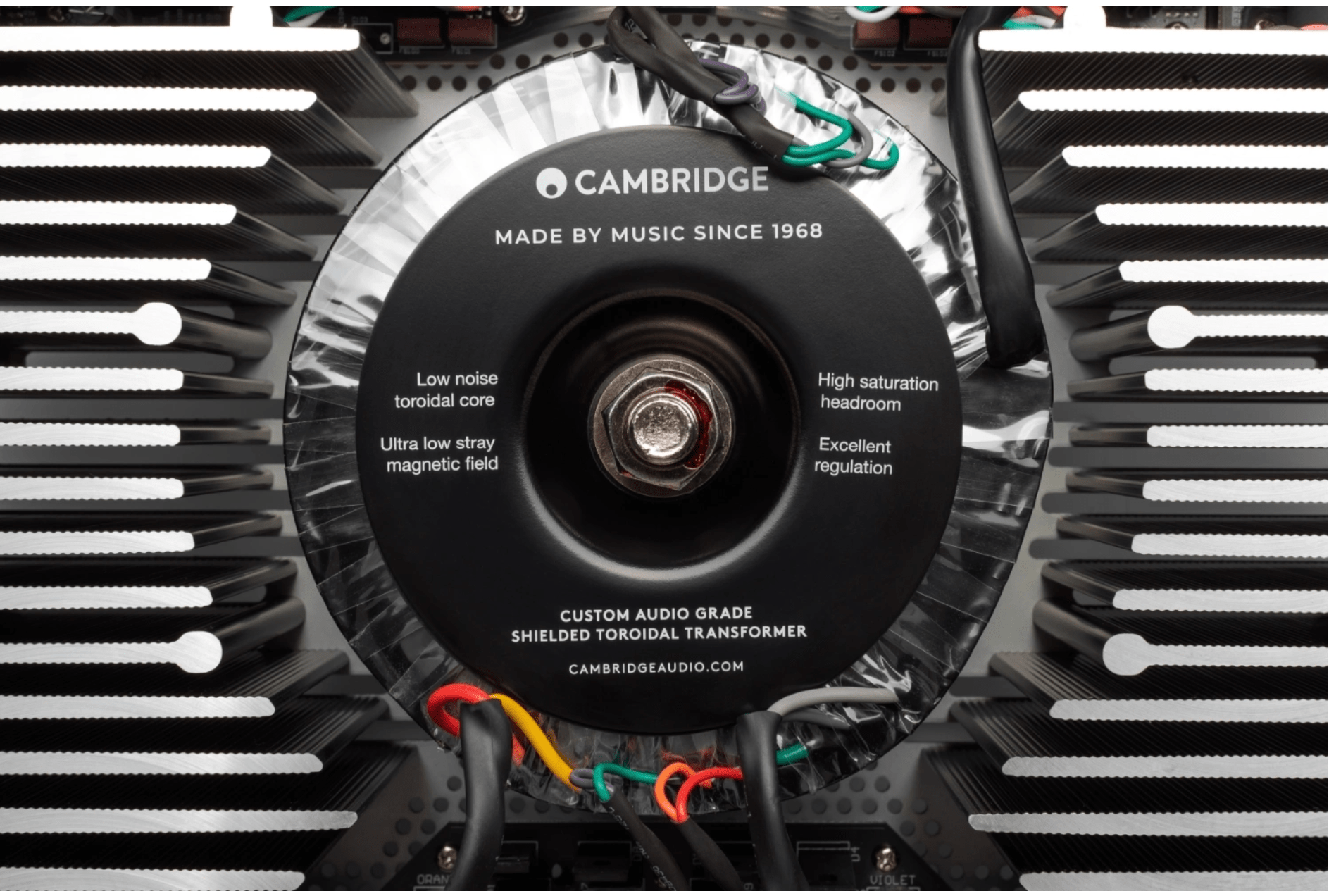

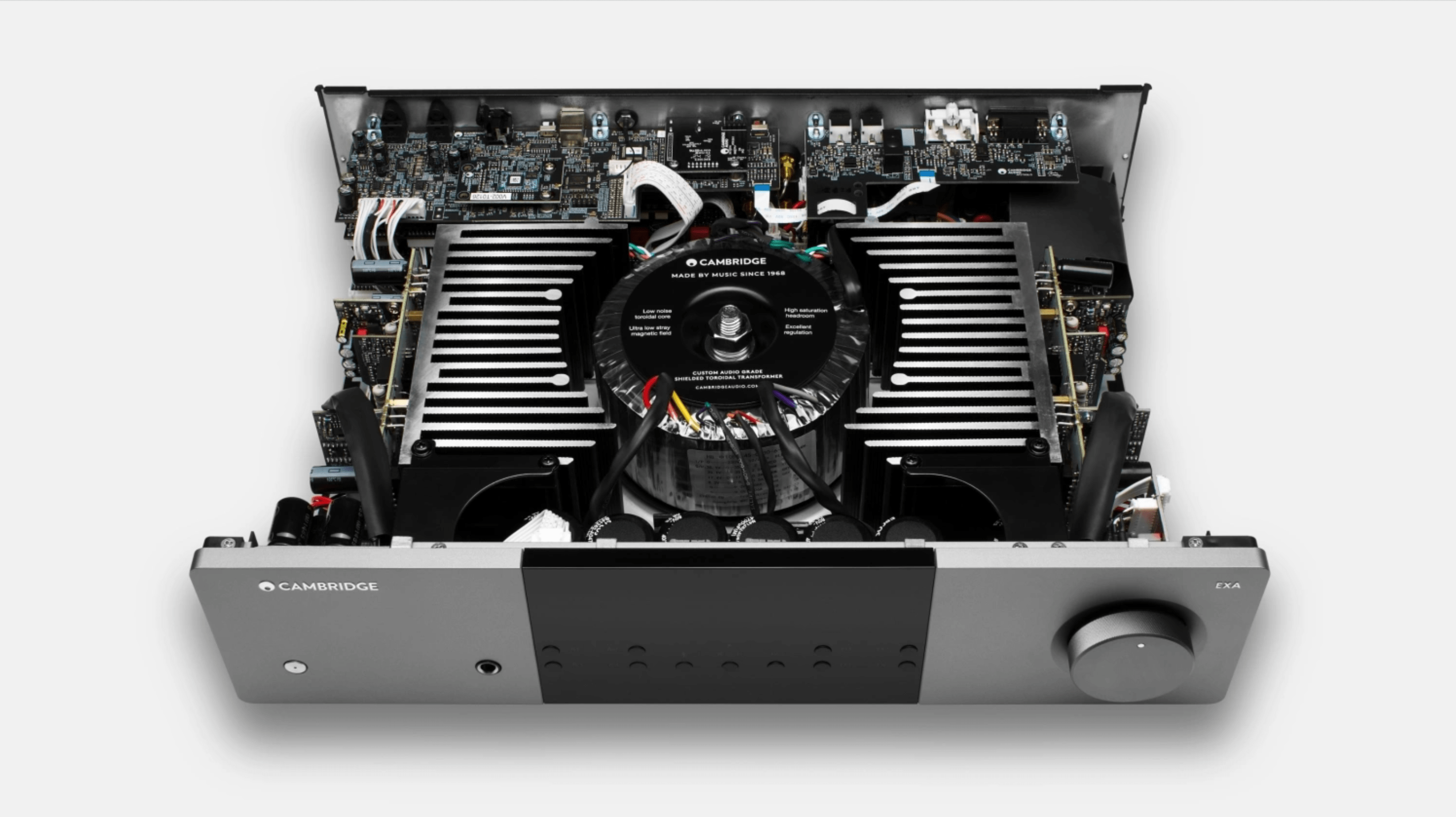

EXA100’s advanced toroidal transformer is amply shielded, super-quiet and flanked by heavy-duty heat sinks for impeccable performance that’s more than worthy of extending the P40 legacy.



自 1968 年以来音质出色


早在“爱之夏”，我们的 P40 放大器就率先采用环形变压器 - 并彻底改变了音频。

EXA100 的先进环形变压器具有充分的屏蔽、超静音，两侧配有重型散热器，性能无可挑剔，足以延续 P40 的传统。

Shout Out to My EX

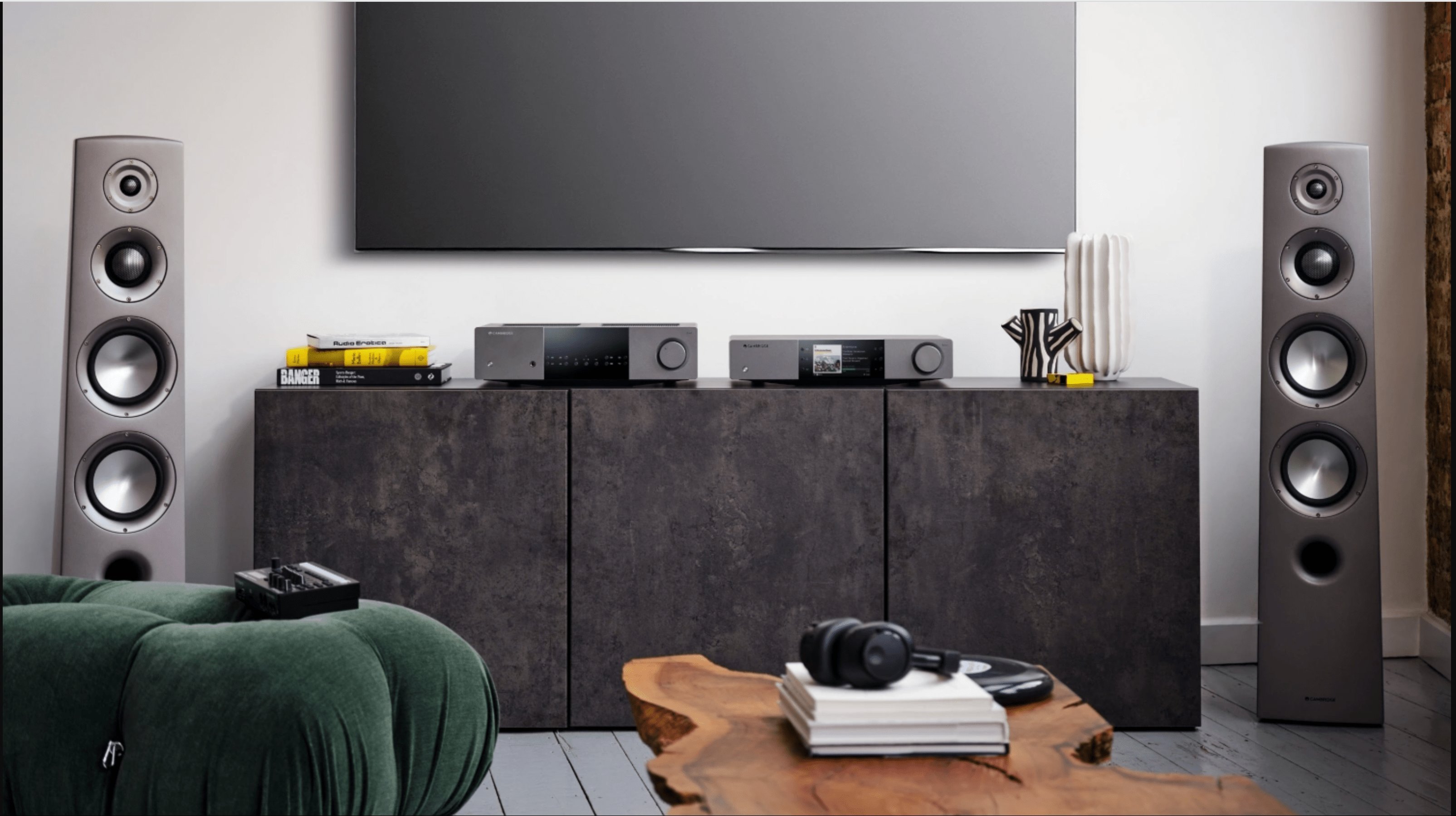

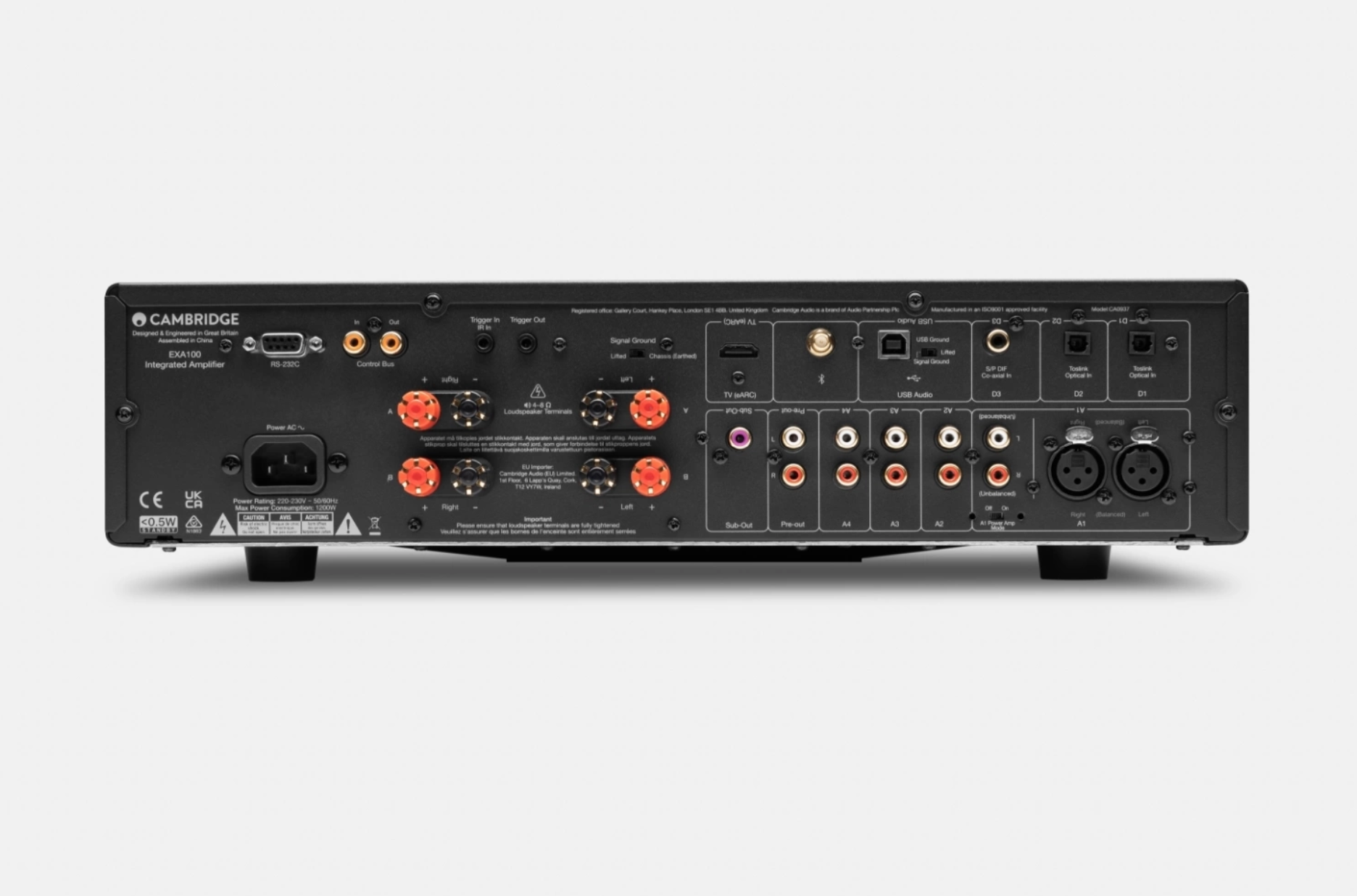

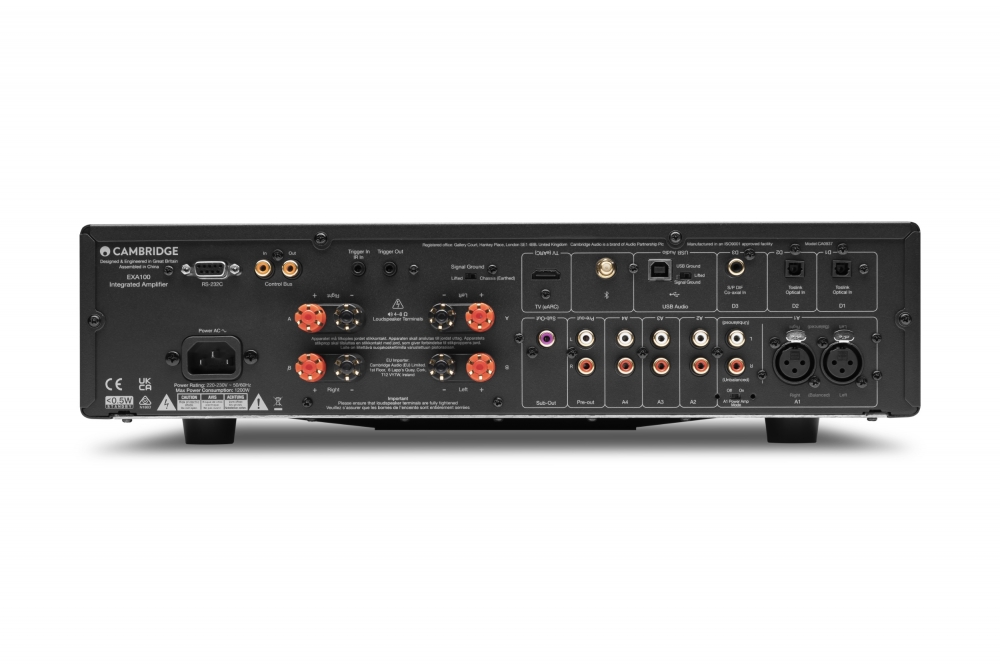

The EXA100 lets you listen how and wherever you want, in sublime quality. Balanced XLR inputs offer a premium analogue connection, while two sets of speaker outputs can power music in two different rooms.

Bass-heads can even add a subwoofer to the dedicated pre-out. With EX, you get a world of listening possibilities.



向我的 EX 致敬


EXA100 让您随时随地聆听，音质卓越。平衡 XLR 输入提供优质模拟连接，而两组扬声器输出可以为两个不同的房间播放音乐。

低音爱好者甚至可以在专用的预输出中添加低音炮。有了 EX，您将获得无限的聆听可能性。

Digital Love

From its exceptional hi-res DAC to the HDMI eARC input and Bluetooth aptX HD, EXA100 is a digital audio powerhouse. Whatever music service or source device you choose, EXA100 will breathe new life into your digital sounds.



数字之爱


从其卓越的高分辨率 DAC 到 HDMI eARC 输入和蓝牙 aptX HD，EXA100 是一款强大的数字音频设备。无论您选择哪种音乐服务或源设备，EXA100 都会为您的数字声音注入新的活力。

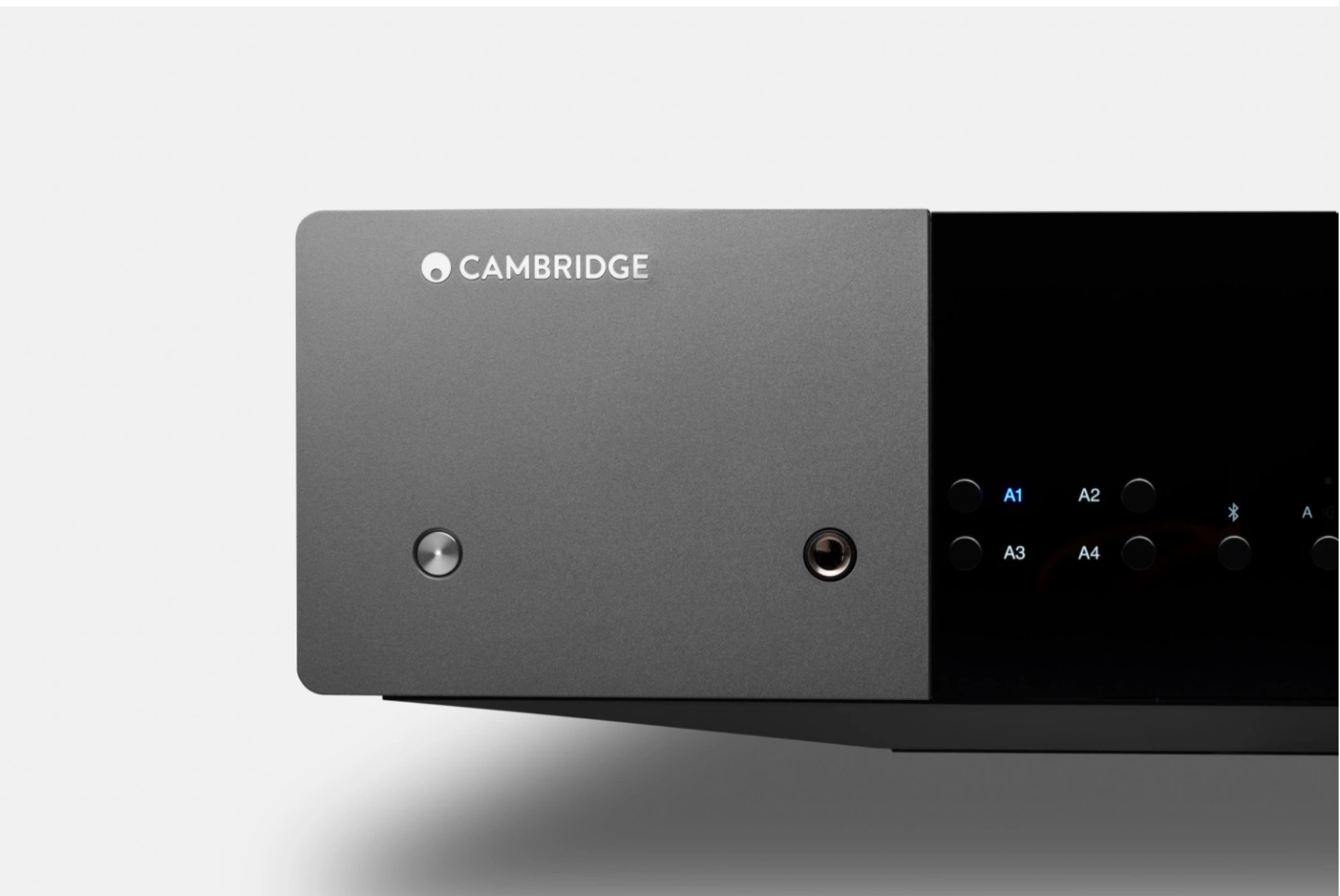

A Strong Look

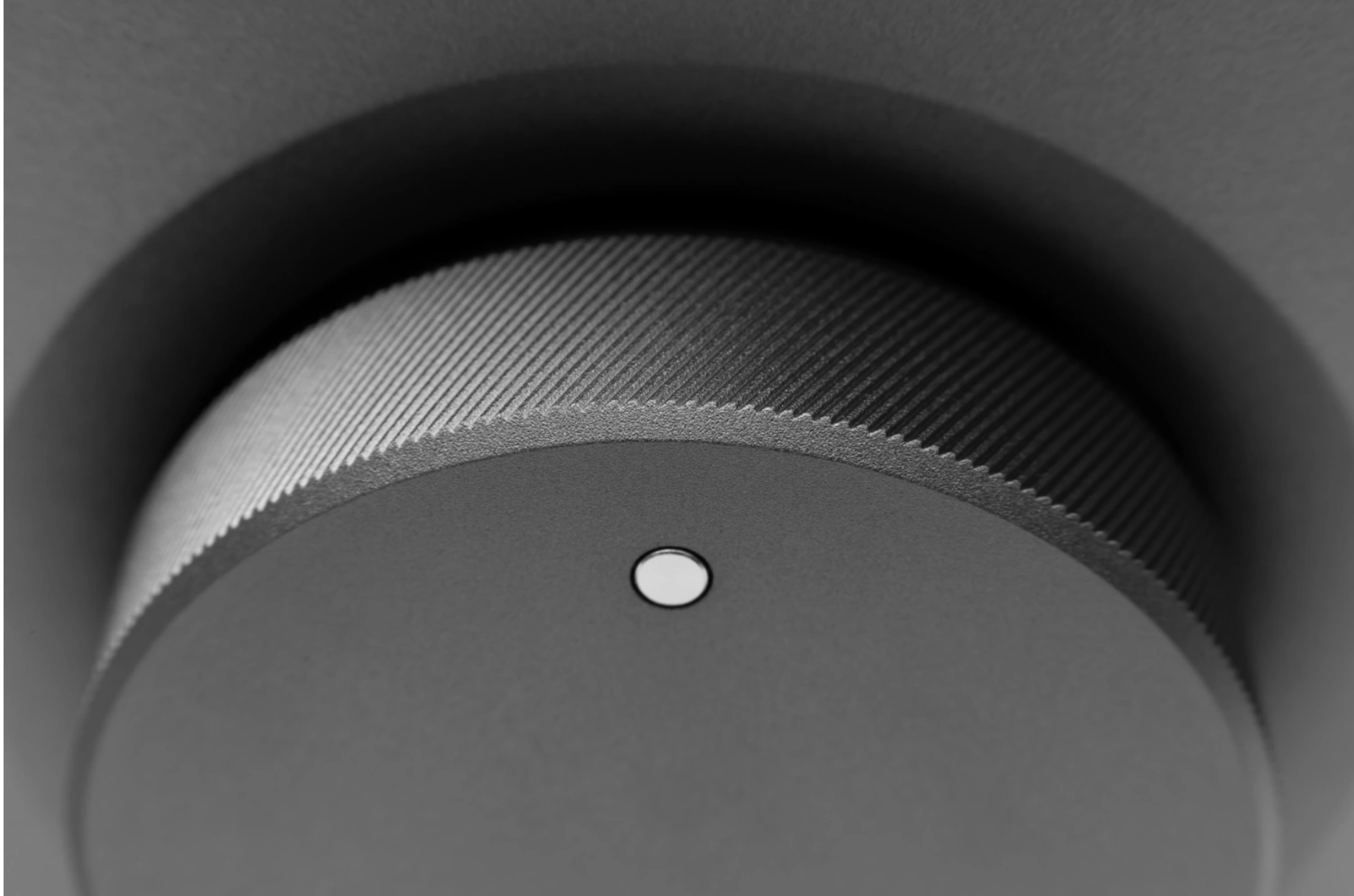

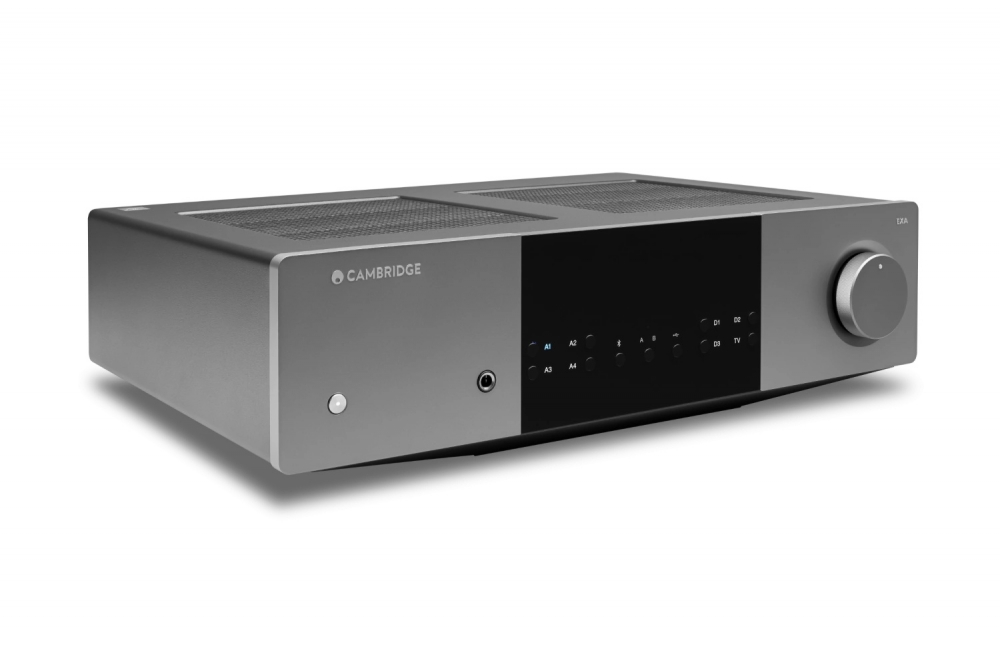

Our innovation doesn’t stop on the inside: the EXA100 has a stunning new design, complete with a milled aluminium front panel and a tactile knurled volume knob you can’t keep your hands off.

This jaw-dropping amp looks as powerful as it sounds



外观强劲


我们的创新不仅限于内部：EXA100 拥有令人惊叹的全新设计，配有铣削铝制前面板和触感滚花音量旋钮，让您爱不释手。

这款令人惊叹的放大器外观和音质一样强大

Power to the People

Switch it to Power Amp Mode and the EXA100 pairs brilliantly with any pre-amp, giving flexibility you never knew you needed – whether in a stereo or multi-channel system.



为人民提供力量


将其切换到功率放大器模式，EXA100 可以与任何前置放大器完美配对，提供您从未想过的灵活性 - 无论是在立体声还是多声道系统中。

And The Beat Goes On

To ensure a longer, happier listening life for our amps and the speakers they power, we developed an exceptional proprietary protection system, CAP.

It uses an array of different methods to detect potential issues, such as power and temperature overloads, and take preventive action. So you can just relax and enjoy the music, worry-free.



节拍继续


为了确保我们的放大器及其驱动的扬声器拥有更长、更愉悦的聆听体验，我们开发了一种卓越的专有保护系统 CAP。

它使用一系列不同的方法来检测潜在问题（例如电源和温度过载），并采取预防措施。这样您就可以放松身心，无忧无虑地享受音乐。

Everything and Then Some

From its precision build to the technology inside, the EXA100 is gloriously over-engineered. Whether it’s a four-layer PCB or a reservoir capacitor, every component is specially selected and expertly implemented. We sweat the small stuff; it matters.



一切，甚至更多


从精密构造到内部技术，EXA100 的设计都十分出色。无论是四层 PCB 还是储能电容器，每个组件都经过精心挑选和专业实施。我们为小事操心；这很重要。



Technical Specifications


Power Output    100W RMS into 8 Ohms @ <1%THD+N, 155W RMS into 4 Ohms @ 1kHz <1%THD+N
Amplification    Class-A/B
DAC    ES9018K2M
Preamp Mode    Yes
Frequency Response    <3Hz – >40kHz +/-1dB
Toroidal Transformer    Yes
Bi-wiring possible    Yes
Analogue RCA Inputs    4 pairs
Balanced XLR Input    1 pair
S/PDIF TOSLINK Input    2
S/PDIF Coaxial Input    1
Asynchronous USB Input    USB Type B conforming to USB Audio Class 1 or USB Audio Class 2 (user selectable)
Bluetooth    5.0 aptX HD
HDMI ARC Input    1 (eARC compatible)
Preamp Output    RCA pre-out
Headphone Output    Yes
Subwoofer Output    1 x RCA
Speaker Outputs    Yes
S/PDIF TOSLink Optical    TOSLINK: 16/24-bit 32-96kHz
S/PDIF Coaxial    Coax SPDIF: 16/24-bit 32-192kHz
HDMI eARC    PCM up to 24bit/192kHz
USB Audio    USB Audio Class 1: Up to 24-bit 96kHz (asynchronous) | USB Audio Class 2: Up to 24-bit 384kHz (asynchronous) and up to DSD-256
Bluetooth    5.0 A2DP/AVRCP supporting SBC, aptX and aptX HD codecs
RS232 Control    Yes
THD (Unweighted)    <0.002% 1kHz at 80% of rated power (8 Ohms) | <0.02% 20Hz – 20kHz at 80% of rated power
S/N Ratio (REF 1W)    >91 dB
Crosstalk @1kHz    >90
Input Sensitivity    Input A2-A4 (unbalanced) 395mV RMS
Input Impedances    Input A1 (balanced) 100 kOhm Input A2-A4 (unbalanced) 45 kOhm
Power Amp Damping Factor    >160 at 1kHz
Subwoofer Output    1 x RCA
Max Power Consumption    1200w
Standby Power Consumption    <0.5W
Dimensions (W x H x D)    115 x 430 x 341mm (4.5 x 16.9 x 13.4”)
Weight    12.8kg (28.2Lbs)
In the box    Power cords, Remote control, Welcome letter, Registration Card, Safety guide

技术规格


输出功率 100W RMS 至 8 欧姆 @ <1%THD+N，155W RMS 至 4 欧姆 @ 1kHz <1%THD+N
放大 A/B 类
DAC ES9018K2M
前置放大器模式 是
频率响应 <3Hz – >40kHz +/-1dB
环形变压器 是
可双线连接 是
模拟 RCA 输入 4 对
平衡 XLR 输入 1 对
S/PDIF TOSLINK 输入 2
S/PDIF 同轴输入 1
异步 USB 输入 USB B 型符合 USB 音频类 1 或 USB 音频类 2（用户可选）
蓝牙 5.0 aptX HD
HDMI ARC 输入 1（兼容 eARC）
前置放大器输出 RCA 预输出
耳机输出 是
低音炮输出 1 x RCA
扬声器输出 是
S/PDIF TOSLink 光纤TOSLINK：16/24 位 32-96kHz
S/PDIF 同轴 同轴 SPDIF：16/24 位 32-192kHz
HDMI eARC PCM 最高 24 位/192kHz
USB 音频 USB 音频类 1：最高 24 位 96kHz（异步）| USB 音频类 2：最高 24 位 384kHz（异步）和最高 DSD-256
蓝牙 5.0 A2DP/AVRCP 支持 SBC、aptX 和 aptX HD 编解码器
RS232 控制 是
THD（未加权）<0.002% 1kHz，额定功率的 80%（8 欧姆）| <0.02% 20Hz – 20kHz，额定功率的 80%
信噪比 (REF 1W) >91 dB
串扰 @1kHz >90
输入灵敏度输入 A2-A4（非平衡）395mV RMS
输入阻抗输入 A1（平衡）100 kOhm输入 A2-A4（非平衡）45 kOhm
功率放大器阻尼系数 >160，1kHz
低音炮输出 1 x RCA
最大功耗 1200w
待机功耗 <0.5W
尺寸（宽 x 高 x 深）115 x 430 x 341mm (4.5 x 16.9 x 13.4”)
重量 12.8kg (28.2Lbs)
包装盒内电源线、遥控器、欢迎信、注册卡、安全指南
