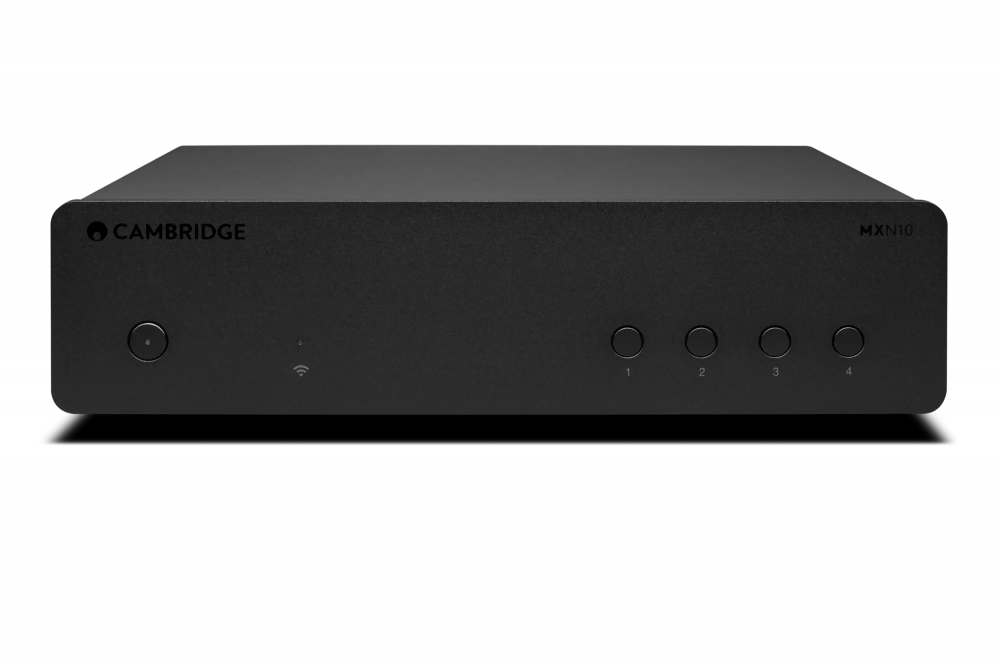

MXN10
Compact Size, Massive Choice
Our MXN10 network player can bring the world of Hi-Res music to much-loved hi-fi set-ups and other audio systems. Its half-width compact footprint offers flexibility of placement. MXN10 can access free music, including internet radio, as well as subscription services – many of which offer free trials, so you’ll soon find your perfect streaming partner. MXN10 can play Hi-Res music from USB and NAS drives too. That’s digital music from limitless sources routed through one compact unit – all conveniently controlled with our StreamMagic app from your mobile.
THE DETAILS
|
INPUTS |
Ethernet, USB socket (mass storage), Wi-Fi, Bluetooth |
|
OUTPUTS |
Line out (unbalanced), Digital out (Coax and Optical) |
|
DAC |
ESS Sabre ES9033Q |
|
FREQUENCY RESPONSE |
20Hz – 70kHz +0/-1dB |
|
ETHERNET |
IEEE 802.3 10 Base-T or 100 Base-T |
|
WI-FI |
Wi-Fi 5 dual band 2.4/5gHz |
|
BLUETOOTH |
5.0 A2DP/AVRCP supporting SBC and AAC |
|
COMPATIBILITY |
UPnP, Local USB media, Internet Radio, Chromecast, Spotify connect, Tidal, Qobuz, Roon Ready, Airplay 2 |
|
AUDIO FORMATS |
ALAC, WAV, FLAC, AIFF, DSD (x512), WMA, MP3, AAC, HE AAC, AAC+, OGG Vorbis |
|
HI-RES SUPPORT |
Up to 768KHz 32bit PCM, up to DSD512 |
|
MAX POWER CONSUMPTION |
20W |
|
STANDBY POWER CONSUMPTION |
<0.5W |
|
DIMENSIONS (W X H X D) |
215 x 52 x 191mm |
|
WEIGHT |
1.2kg |
|
BOX CONTENTS |
MXN10 player, WiFi/BT Antenna (x2), Safety Guide, Quick start guide, Regional mains lead |

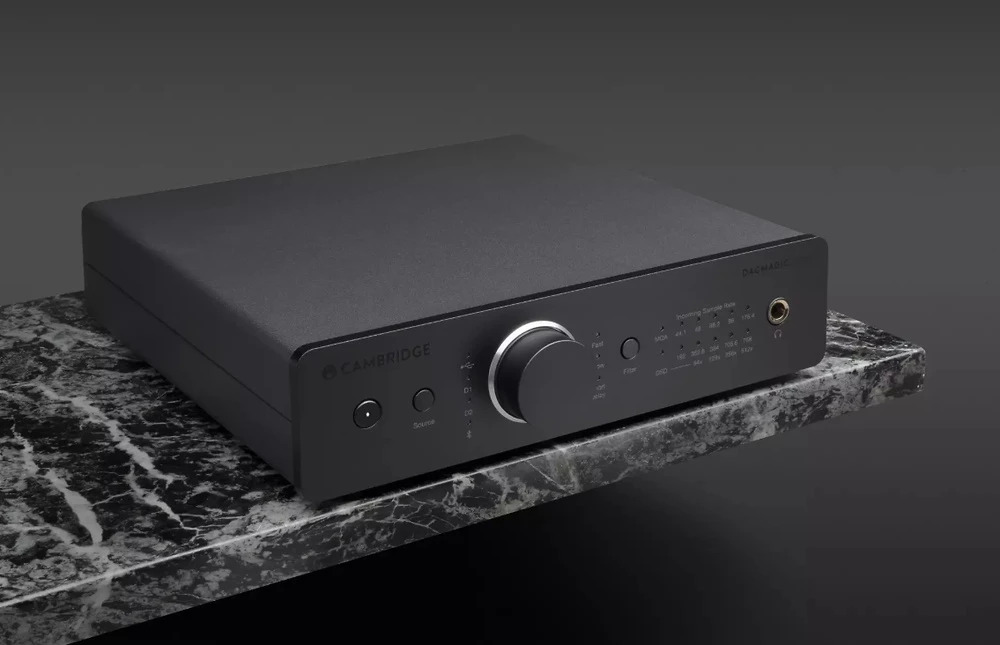

Shine a Light on Music
Digital audio files can be packed with incredible musical detail, but they need to be converted to analogue first for you to hear it. And how good it sounds will depend on how well the digital audio from your computer, network player or CD is converted. DacMagic 200M’s twin ESS DACs decrease crosstalk and improve separation because there’s a DAC dedicated to both left and right channels. These fully balanced, optimised, and efficient signal paths reveal previously hidden glittering musical prizes.
THE DETAILS
|
DIGITAL TO ANALOGUE CONVERTERS |
Dual ESS ES9028Q2M DACs |
|
DIGITAL FILTER |
Selectable, Fast – Slow – Short delay |
|
FREQUENCY RESPONSE |
10Hz to 50kHz (±1dB) |
|
THD+N @ 1KHZ 0DBFS |
<0.0005% (A-Weighted) |
|
SIGNAL TO NOISE RATIO |
>115dB (A-Weighted) |
|
CROSSTALK @ 10KHZ |
< -110dB |
|
OUTPUT IMPEDANCE |
<50 Ohms (unbal), <100 Ohm (bal) |
|
MAX. OUTPUT LEVEL (UNBALANCED) |
2.1V rms (fixed or variable – user selectable) |
|
MAX. OUTPUT LEVEL (BALANCED) |
4.2V rms (fixed or variable – user selectable) |
|
DIGITAL INPUT WORD WIDTHS SUPPORTED |
16bit (Bluetooth), 16-24bit (Optical, Coaxial), 16-24bit (USB) |
|
DIGITAL INPUT SAMPLING FREQUENCIES SUPPORTED |
44.1kHz to 96kHz PCM, DoP64 (Optical), 44.1kHz to 192kHz PCM, DoP64 (Coaxial), 44.1kHz to 768kHz PCM, Native DSD 64x to 512x, DoP 64x to 256x (USB) |
|
MQA COMPATIBILITY |
Full decoding (Core + Renderer) |
|
BLUETOOTH |
v4.2, A2DP profile, SBC and AptX codecs |
|
ROON TESTED |
Yes |
|
HEADPHONE OUTPUT THD+N |
< 0.001% at 1kHz 0dBFS @ 100mW into 32ohm |
|
HEADPHONE OUTPUT S/N |
> 115dB (A-Weighted) |
|
MAX OUTPUT POWER |
>300mW @ 32ohm, >65mW @ 150ohm |
|
FREQUENCY RESPONSE |
10Hz - 50kHz (±1dB) |
|
RECOMMEND HEADPHONE IMPEDANCE |
10 Ohm to 600 Ohm |
|
MAX POWER CONSUMPTION |
12W |
|
COLOUR |
Lunar Grey |
|
DIMENSIONS (HXWXD) |
52 x 215 x 191mm; (2.0 x 8.6 x 7.6”) |
|
WEIGHT |
1.2kg/2.6lbs |

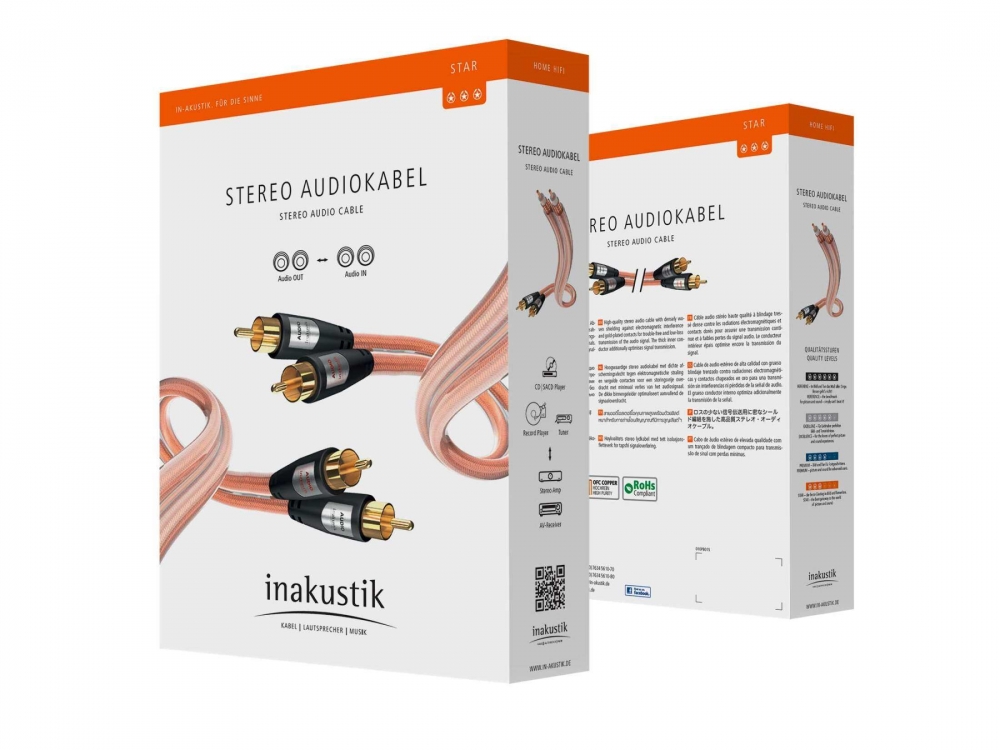

FOC 1 PAIR INAKUSTIK RCA 1.5M CABLE
