Ceiling Speakers - Invisa 600

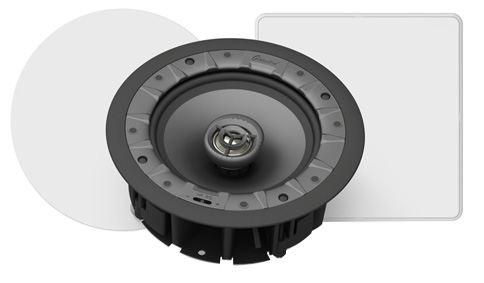

Invisa 600 Overview

Looking for a high performance affordable alternative to the “Contractor Quality” in-walls your builder might suggest? The Invisa 600 is based on our best-selling Invisa 650, with the same one-piece marble-infused unitized driver/frame/flange construction built around the same 6.5" driver. It also offers the same minimal footprint, which delivers the exceptional performance advantages of a 6.5" driver based system, in a compact size comparable to the size of most competitors' 5.25" systems. Of course, it also features a paintable MagneLock grille with an optional square grille available.

Instead of our signature HVFR tweeter, the 600 incorporates a newly developed 1" pure titanium dome tweeter, which has a special silk surround. It is pivotable, of course. Its performance, while not quite that of our folded ribbon, is excellent and we believe the best of any dome tweeter available in in-wall, in-ceiling architectural products. Of course, a complex crossover is utilized to ensure seamless blending and voicing is signature GoldenEar all the way.Click here to read the Brochure.

Invisa Series Specifications



INVISA 650



INVISA SP 652



INVISA 525



INVISA 600

Speaker
Dimensions
  8-5/8˝ (20.63 cm) diameter
x 3-7/16˝ (8.73 cm) depth
  8-5/8˝ (21.90 cm) diameter
x 3-7/16˝ (8.73 cm) depth

  7-3/16˝ (19.6 cm) diameter
x 3-7/16˝  (8.6 cm) depth
  8-5/8" (21.9 cm) diameter
x 3-7/16" (8.6 cm) depth
Square Grille
Dimensions


  8-21/32˝ (21.98 cm)
x 8-21/32˝ (21.98 cm)
  8-21/32˝ (21.98 cm)
x 8-21/32˝ (21.98 cm)

  7-23/32˝ (19.6 cm)
x 7-23/32˝ (19.6 cm)
   8-21/32˝ (21.98 cm)
x 8-21/32˝ (21.98 cm)
Round Grille
Dimensions


  8-11/16˝ (22.06 cm)
diameter
  8-11/16˝ (22.06 cm)
diameter
  7-23/32˝ (19.6 cm)
diameter
   8-11/16˝ (22.06 cm)
diameter
Cutout   7-1/8˝ (18 cm) diameter

  7-1/8˝ (18 cm) diameter   6-3/16˝ (15.7 cm) diameter   7-1/8" (18.1 cm) diameter
Weight   Product: 4 lbs (1.8 kg) /
Shipping: 5.5 lbs (2.5 kg)

  Product: 4.25 lbs (1.9 kg) /
Shipping: 5.75 lbs (2.6 kg)
  Product: 3.5 lbs (1.7 kg) /
Shipping: 5 lbs (2.3 kg)
  Product: 4 lbs (1.8 kg) /
Shipping: 5 lbs (2.3 kg)
Frequency
Response


  25 Hz - 35 kHz

  25 Hz - 35 kHz   27 Hz - 35 kHz   38 Hz – 22 kHz
Efficiency   90 dB

  86 dB   89 dB   90 dB
Nominal
Impedance


  Compatible with
8 ohms
  Compatible with
8 ohms
  Compatible with
8 ohms
  Compatible with 8 ohms
Driver
Complement
  One - 6-1/2˝(16.51 cm)  High-Definition Cast-Basket Mid/Bass Driver
One - Pivotable HVFR™ High-Velocity Folded Ribbon Tweeter
  One - 6-1/2˝ (16.51 cm) Dual-
Wound Voice-Coil Mid/Bass Driver
Two - HVFR™
High-Velocity Folded Ribbon
Tweeters

  One - 5-1/4˝ (13.33 kg) High-Definition Cast-Basket Mid/Bass Driver
One - Pivotable HVFR™ High-Velocity Folded Ribbon Tweeter
  One 6.5"  (16.5 cm) high-definition cast-basket MVPP™ mid/bass driver
One 1" (2.54 cm) Pivoting Titanium Dome Tweeter with Silk Surround
Recommended
Amplification
  10 - 250 watt/channel   10 - 125 watt/channel   10 - 200 watt/channel   10 – 200 Watt/channel
