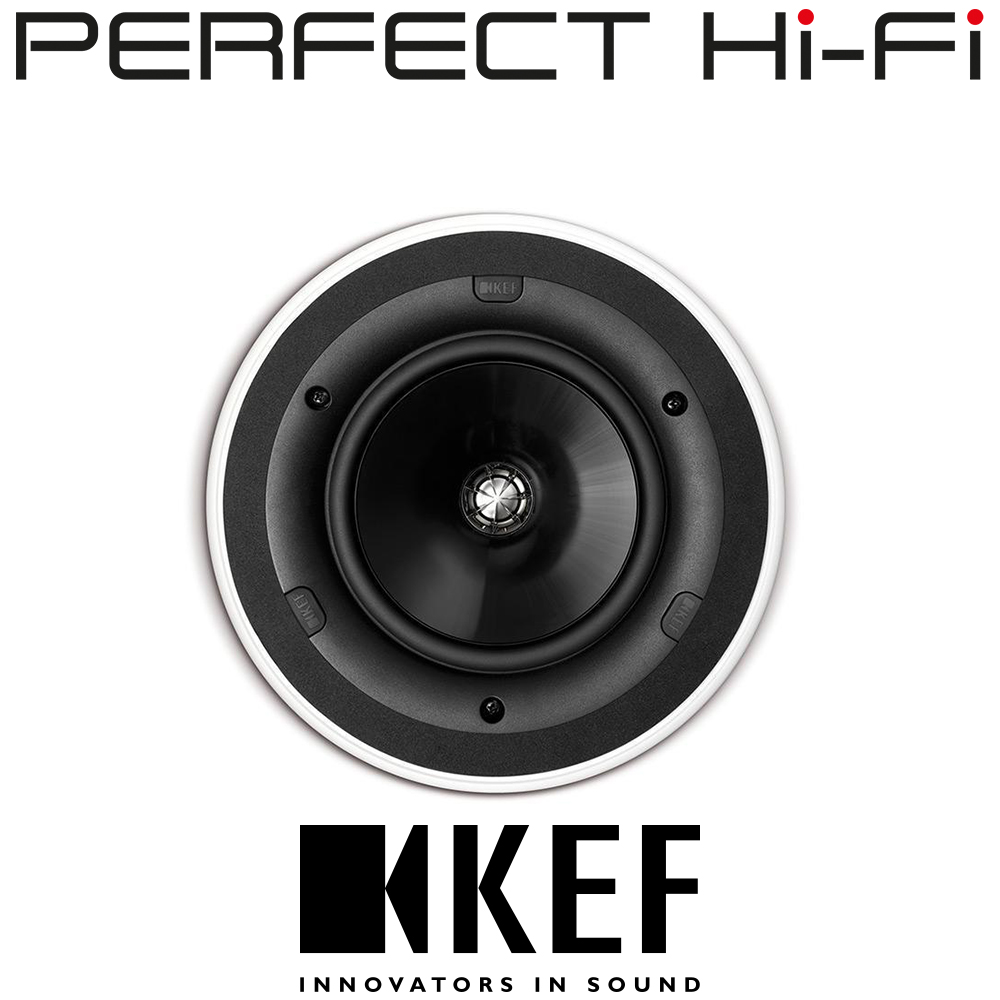

Ci160QR

Featuring KEF's sophisticated 'sit anywhere' Uni-Q driver array, which places the tweeter in the acoustic centre of the bass/midrange cone, this allows both the tweeter and woofer to act as a single point source that disperses the sound widely and evenly throughout the room. Together with the discreet Ultra Thin Bezel (UTB) design, offering the slimmest possible visible rim around the speaker, the Ci Q Series range gives you tremendous freedom to position the speakers where you please.

Key Features

• UTB™ Ultra Thin Bezel
• 160mm (6.5in.) Uni-Q driver array
• 19mm (0.75in.) Aluminium dome tweeter and 'tangerine' waveguide
• Gold plated spring loaded binding posts

Specifications

NOMINAL IMPEDANCE

8 Ohm

SENSITIVITY

89dB (2.83V/ 1m)

CROSSOVER FREQUENCIES

3.0kHz

FREQUENCY RESPONSE

38Hz - 34kHz (±6dB) 2pi/open-backed

DRIVE UNITS

LF: 160mm (6.5in.)
HF: 19mm (0.75in.)

RECOMMENDED AMPLIFIER POWER

10 - 125W

PRODUCT EXTERNAL DIMENSION (H X W X D)

Diameter : 234.6mm (9.24in.)
Depth : 98mm (3.86in.)

CUT-OUT DIMENSIONS (H X W)

Diameter :196mm (7.71in.)

MOUNTING THICKNESS

Ceiling Thickness (Maximum): 36mm (1.42 in.)
Ceiling Thickness (Minimum): 6mm (0.24 in.)

MOUNTING DEPTH FROM SURFACE

Product only: 91mm (3.58in.)

OPTIONAL ROUGH IN FRAME

RIF160R

NET WEIGHT

2.05kg (4.51lbs.)

UNIT MEASUREMENT

Piece
