The Details

SPECIFICATIONS

Design

Two-way bass reflex

Drive units

Uni-Q Driver Array:
HF: 25 mm (1 in.) vented aluminium dome
with MAT
LF/MF: 130 mm (5.25 in.) aluminium cone

Frequency range (-6dB)

47 Hz - 20 kHz

Typical in-room bass response (-6dB)

42 Hz

Frequency response (±3dB)

51 Hz - 20 kHz

Crossover frequency

2.1 kHz

Amplifier requirements

10 - 150 W

Sensitivity (2.83V/1m)

86 dB

Harmonic distortion (90dB, 1m)

<2% 140 Hz and above
<1% 170 Hz - 20 kHz

Maximum output

108 dB

Impedance

4 Ω (min. 3.2 Ω)

Weight *

6.1 kg (13.4 lbs.)

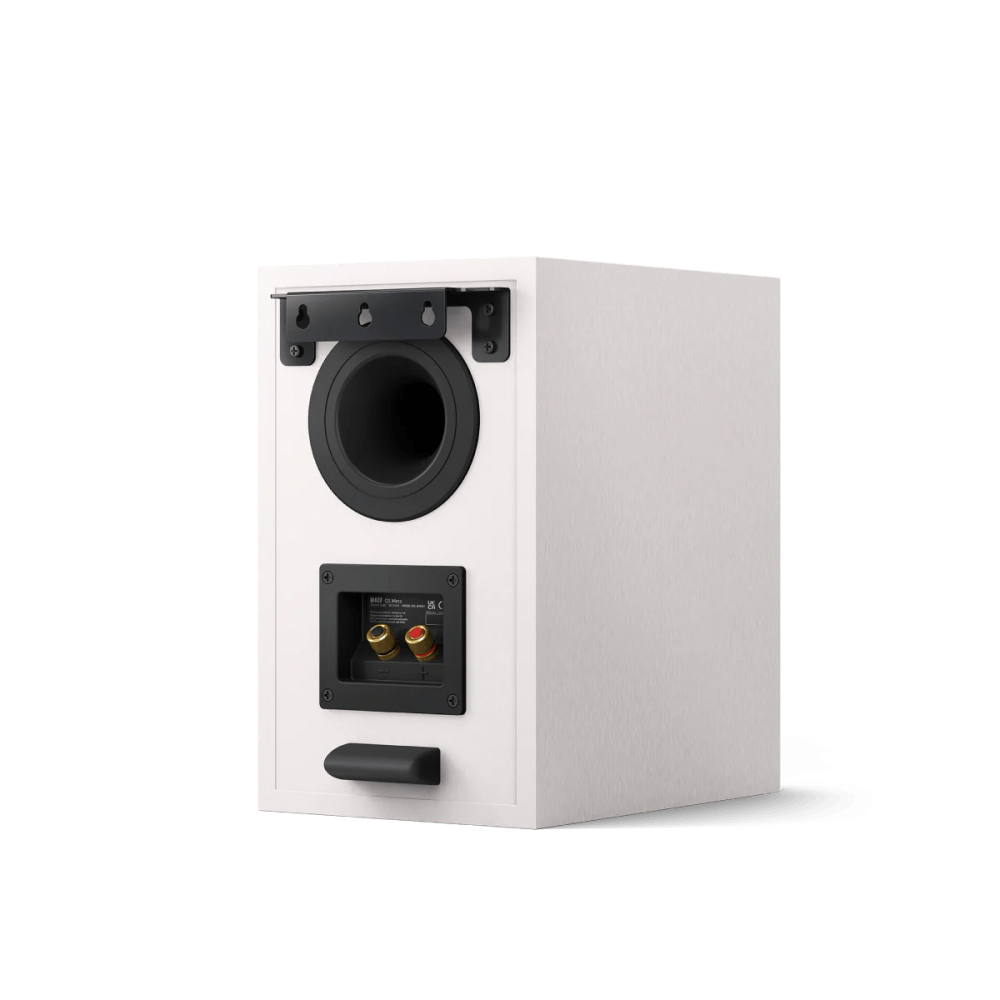

Dimension (H x W x D) with terminal *

302 x 180 x 277 mm (11.9 x 7.1 x 10.9 in.)

Finishes

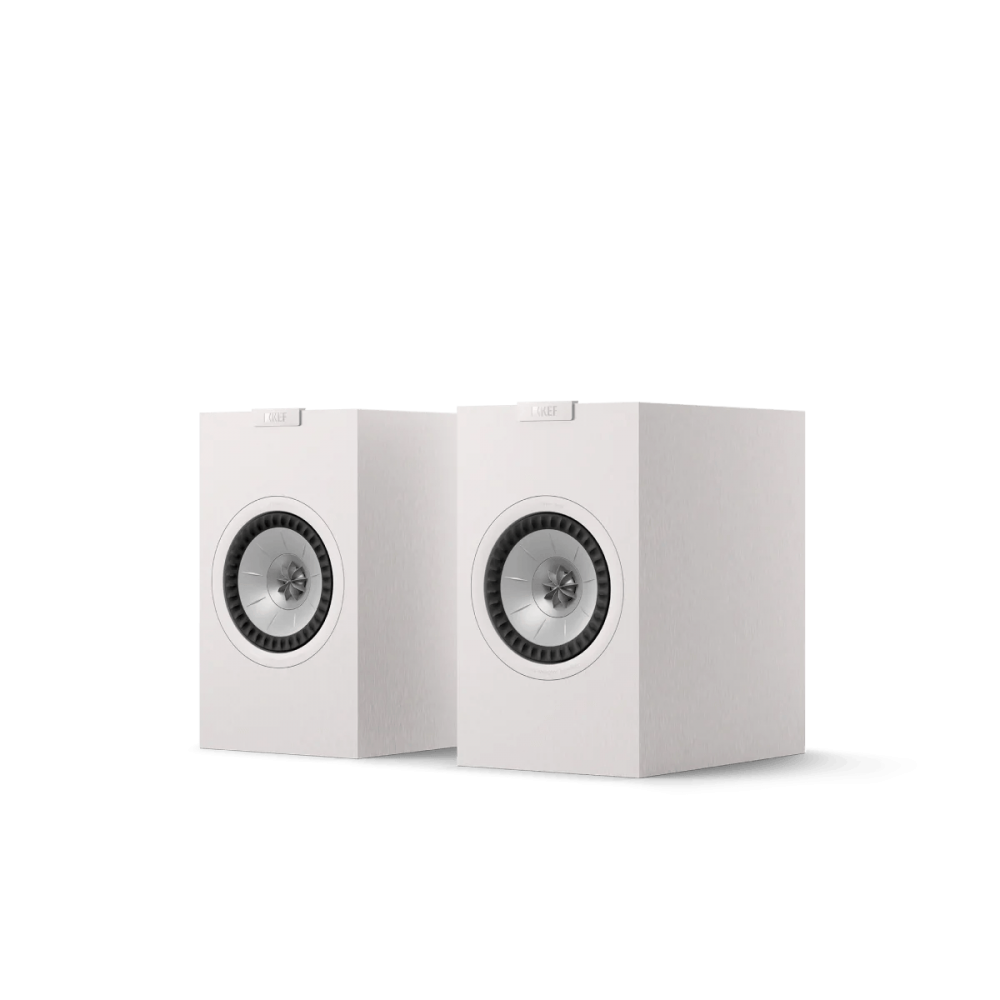

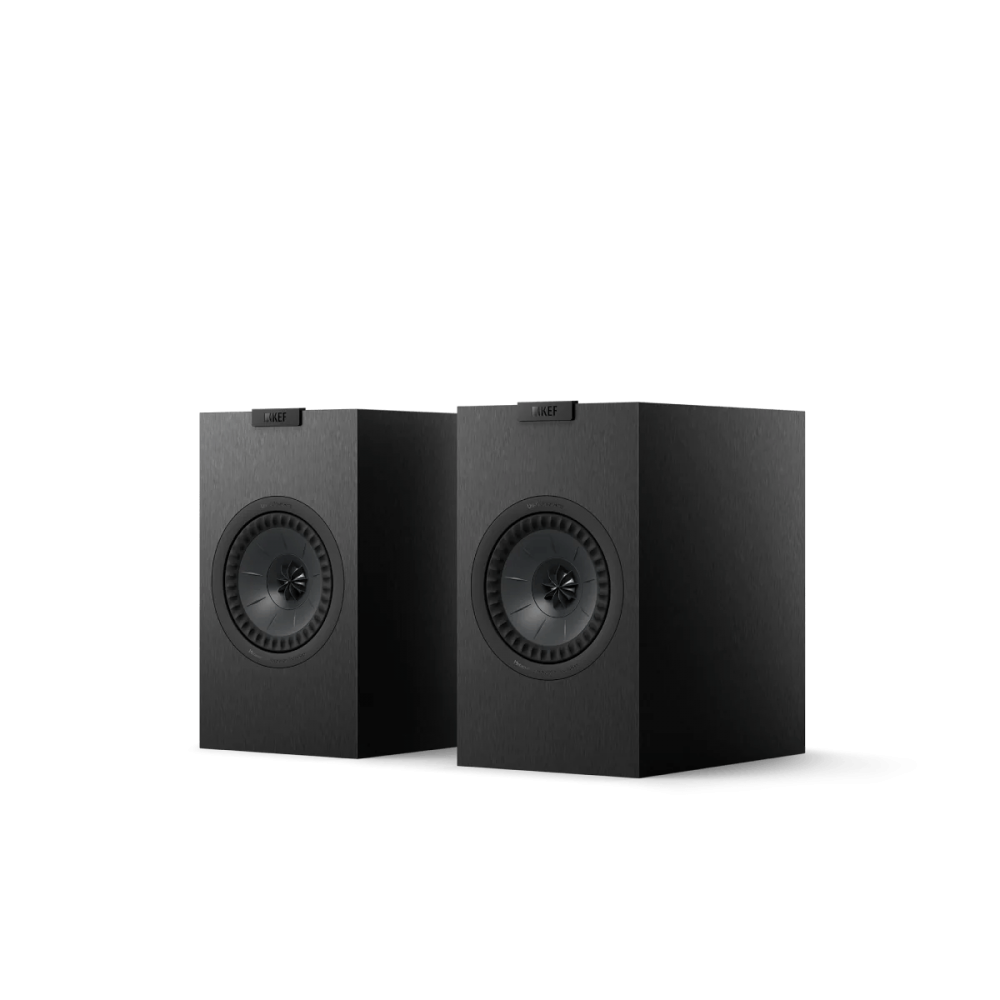

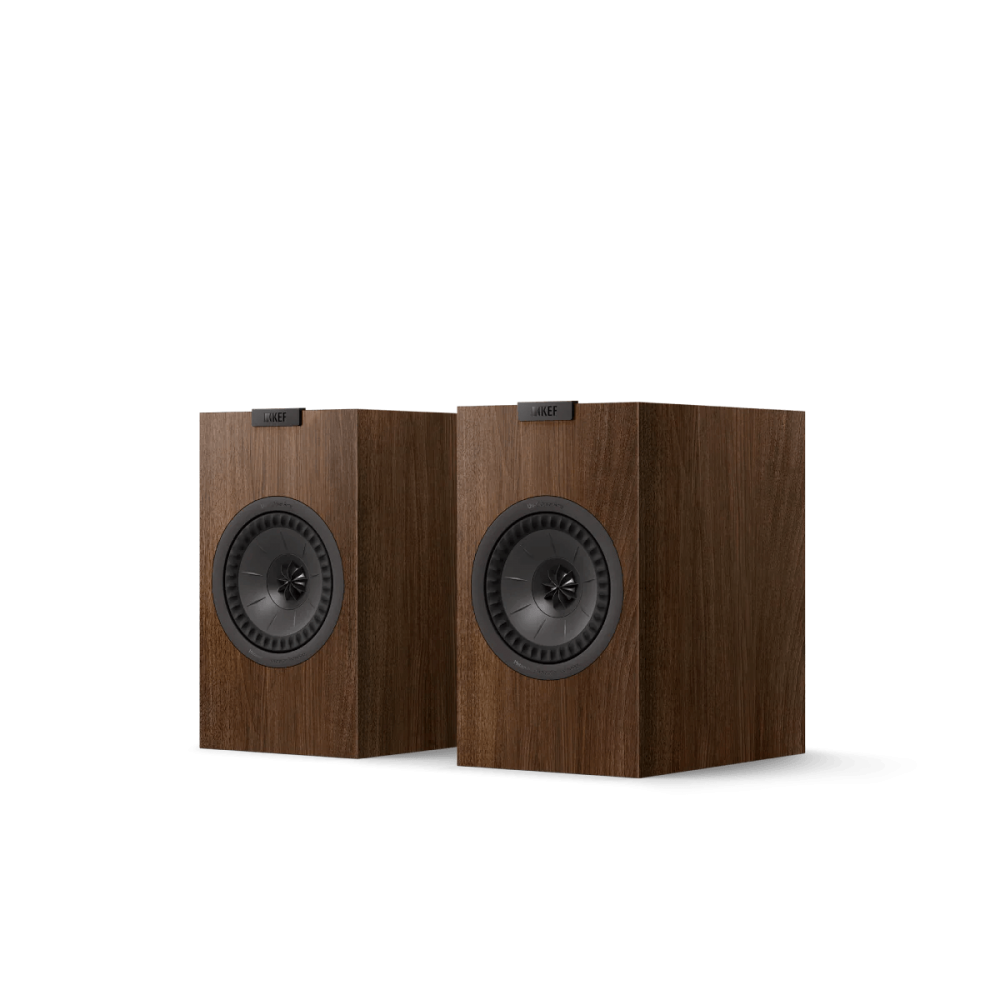

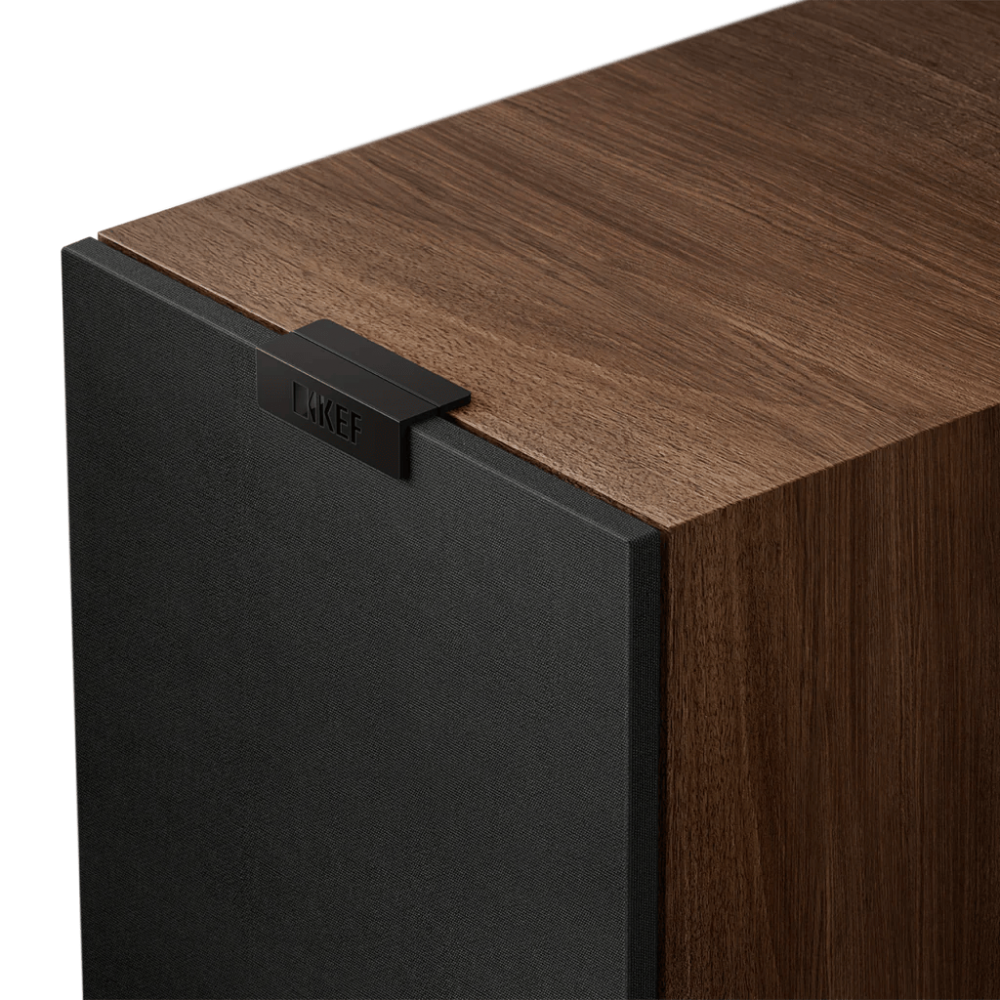

Satin Black / Satin White / Walnut

Downloads

Q Series User ManualQ Series Information Sheet

* Measurement per unit
