The Details

SPECIFICATIONS

Design

Three-way bass reflex

Drive units

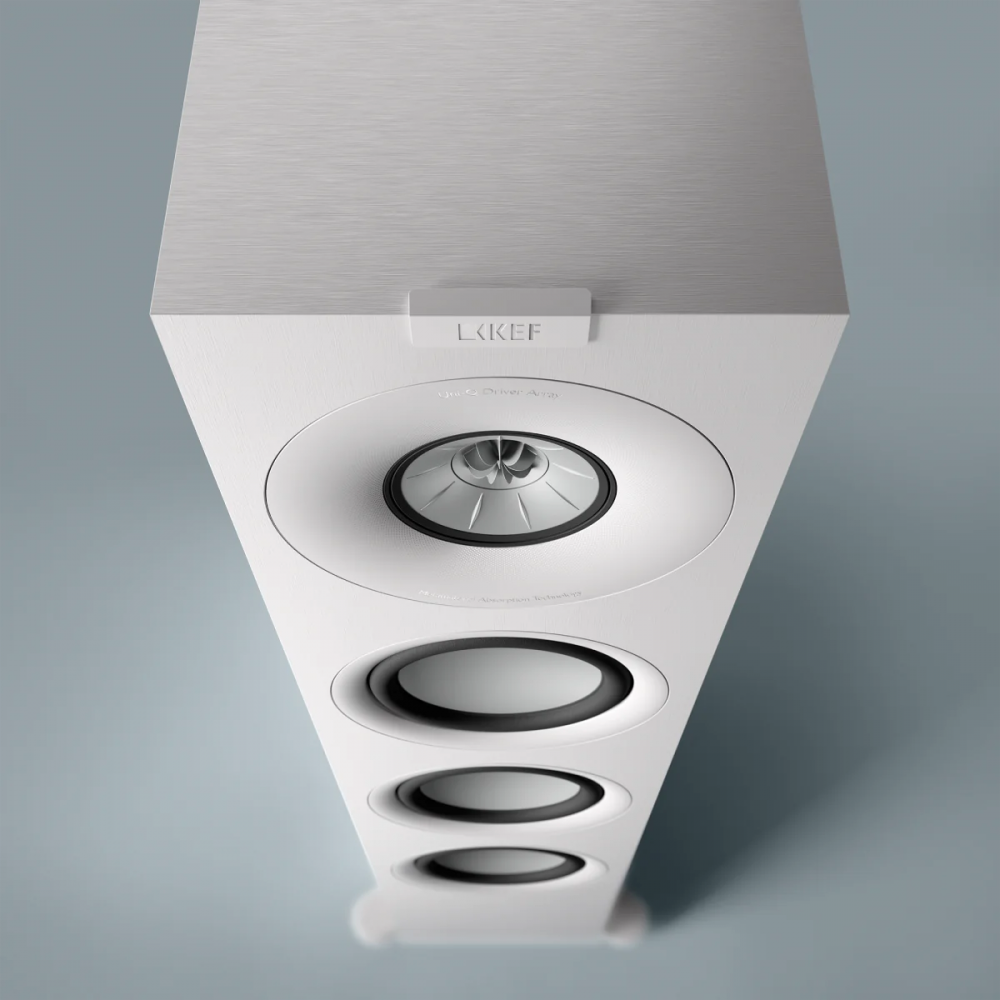

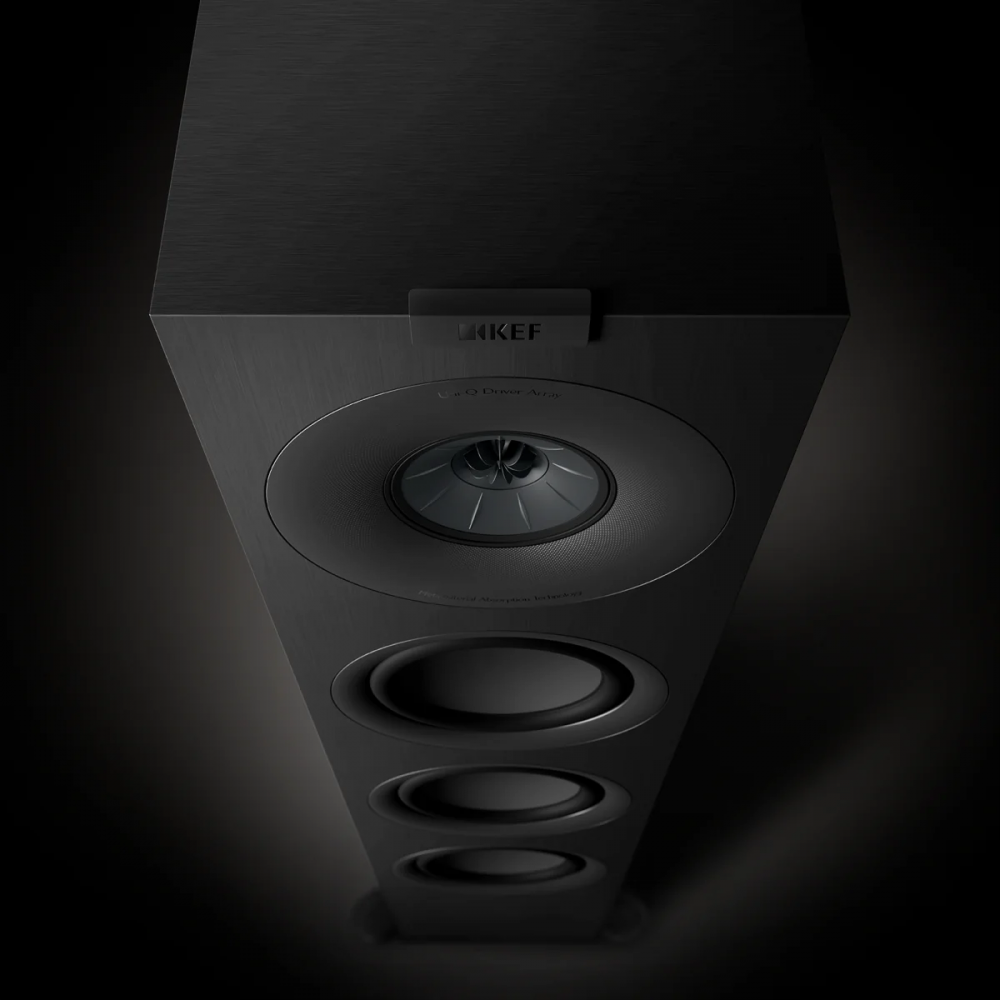

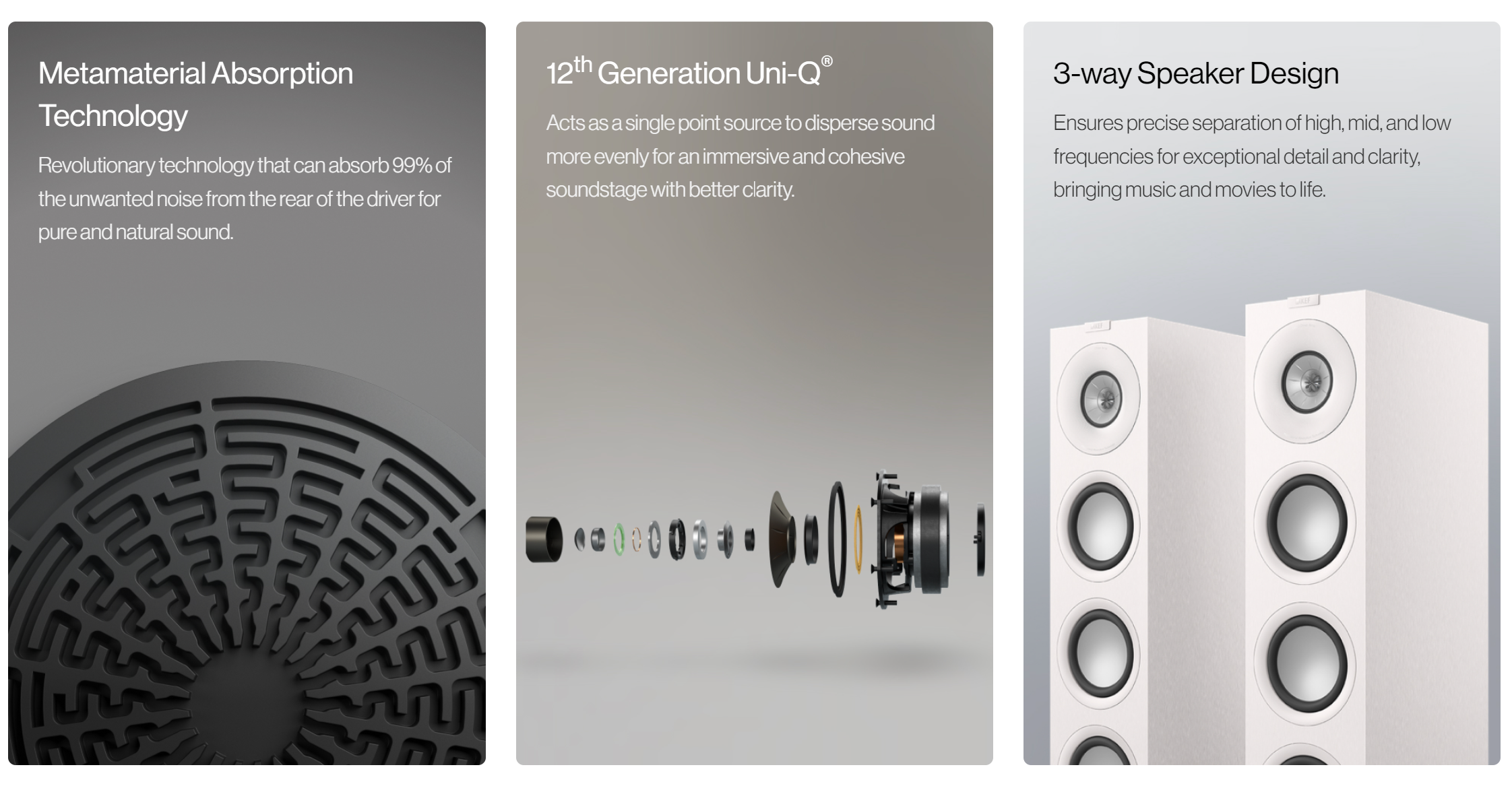

Uni-Q Driver Array:
HF: 19 mm (0.75 in.) vented aluminium dome with MAT
MF: 100 mm (4 in.) aluminium cone
LF: 3 x 165 mm (6.5 in.) hybrid aluminium cone

Frequency range (-6dB)

37 Hz - 20 kHz

Typical in-room bass response (-6dB)

26 Hz

Frequency response (±3dB)

44 Hz - 20 kHz

Crossover frequency

480 Hz, 2.7 kHz

Amplifier requirements

15 - 225 W

Sensitivity (2.83V/1m)

89 dB

Harmonic distortion (90dB, 1m)

<2% 29 Hz and above
<1% 31 Hz - 20 kHz

Maximum output

113 dB

Impedance

4 Ω (min. 3.2 Ω)

Weight *

22.5 kg (49.6 lbs.)

Dimension (H x W x D) with terminal *

1061 x 210 x 380 mm (41.8 x 8.3 x 15.0 in.)

Dimension (H x W x D) with terminal with Plinth *

1112 x 317 x 380 mm (43.8 x 12.5 x 15.0 in.)

Finishes

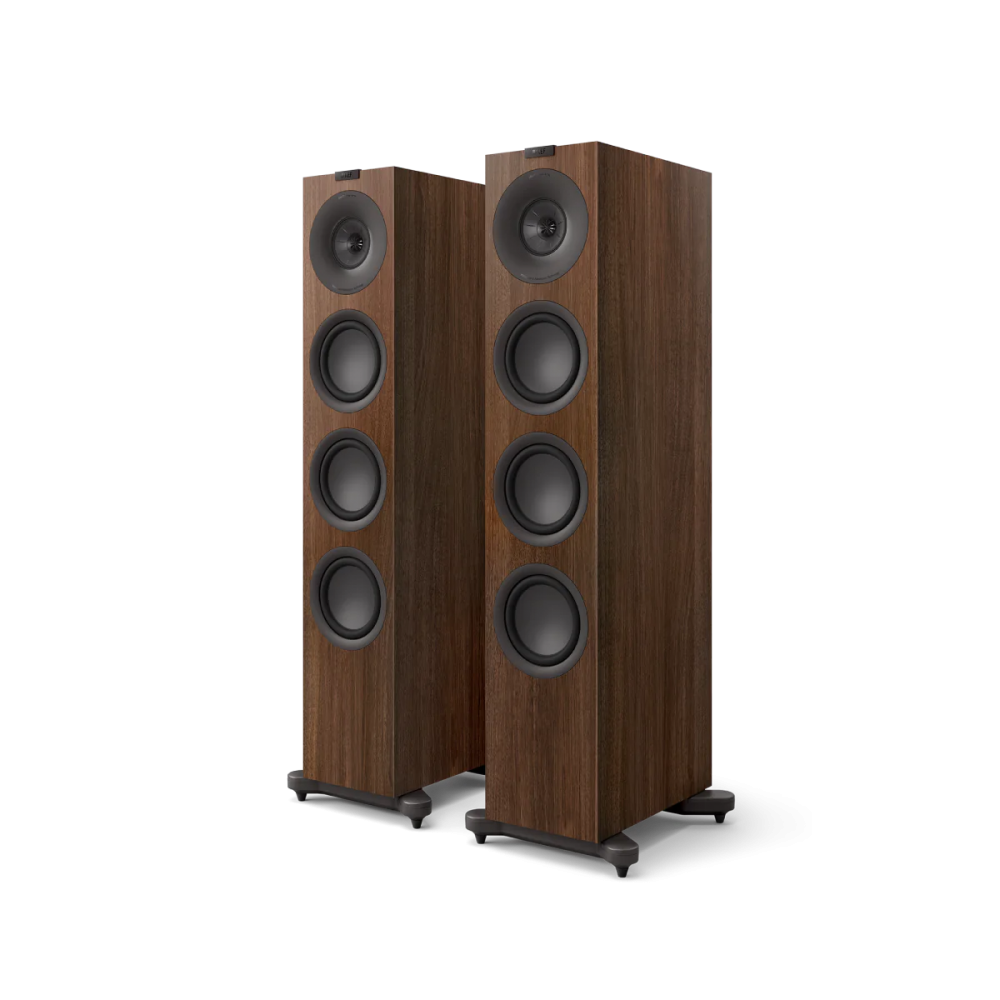

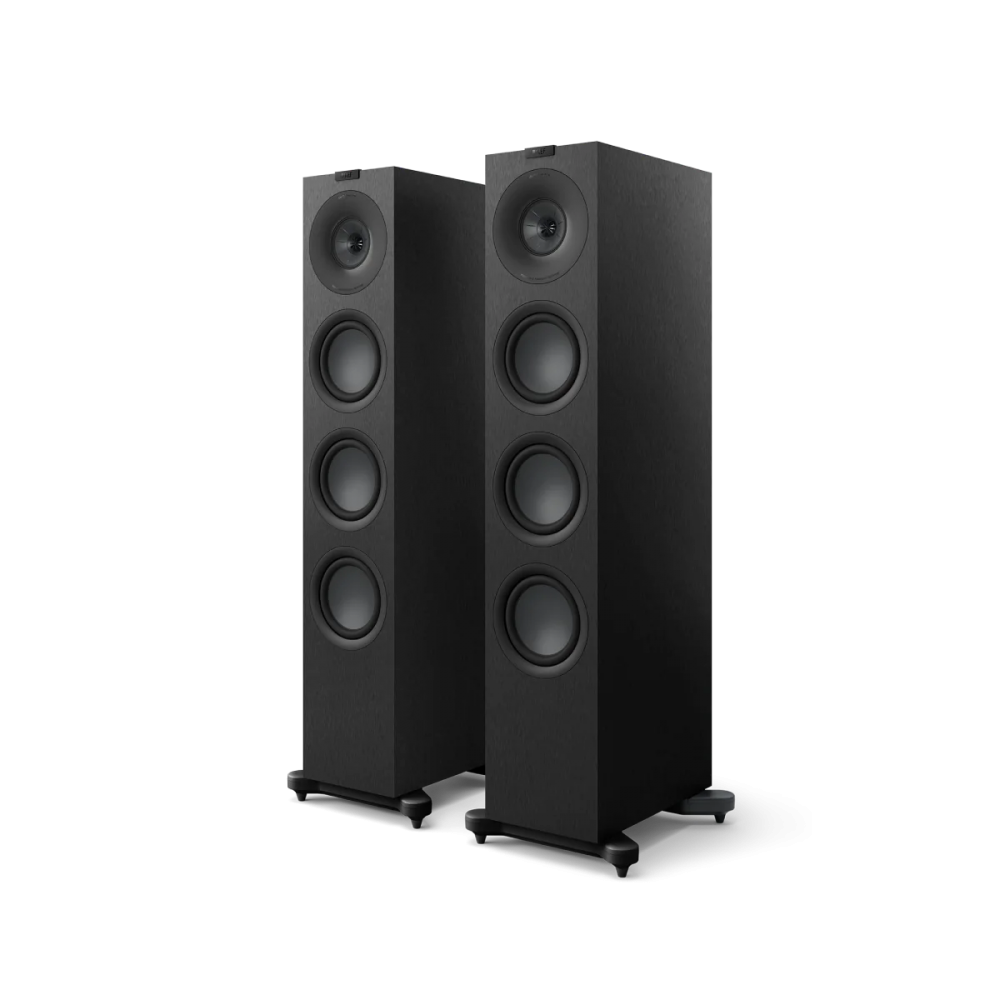

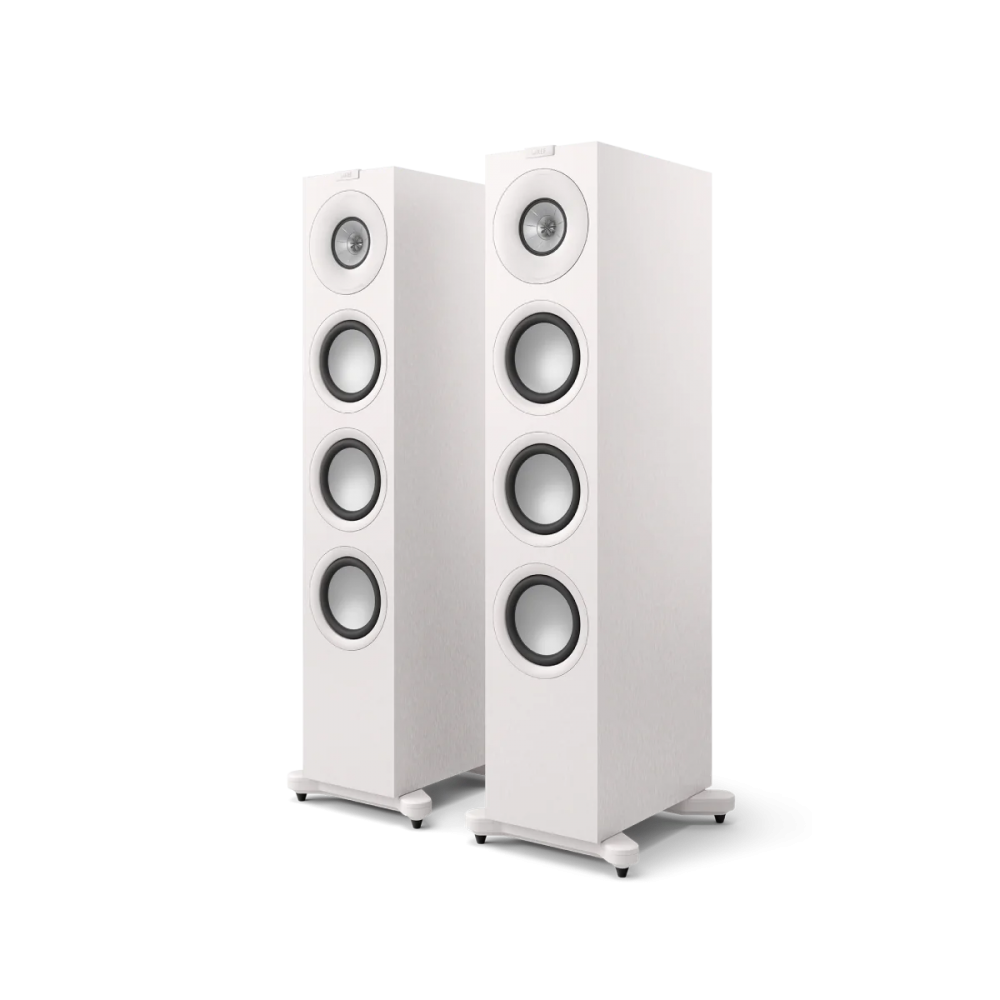

Satin Black / Satin White / Walnut

Downloads

Q Series User ManualQ Series Information Sheet

* Measurement per unit
