The Details

SPECIFICATIONS

Design

Two-way bass reflex

Drive units

Uni-Q Driver Array:
HF: 25 mm (1 in.) vented aluminium dome
with MAT
LF/MF: 165 mm (6.5 in.) aluminium cone

Frequency range (-6dB)

42 Hz - 20 kHz

Typical in-room bass response (-6dB)

39 Hz

Frequency response (±3dB)

49 Hz - 20 kHz

Crossover frequency

2.0 kHz

Amplifier requirements

15 - 150 W

Sensitivity (2.83V/1m)

87 dB

Harmonic distortion (90dB, 1m)

<2% 110 Hz and above
<1% 135 Hz - 20 kHz

Maximum output

109 dB

Impedance

4 Ω (min. 3.2 Ω)

Weight *

8.2 kg (18.1 lbs.)

Dimension (H x W x D) with terminal *

357 x 210 x 305 mm (14.1 x 8.3 x 12.0 in.)

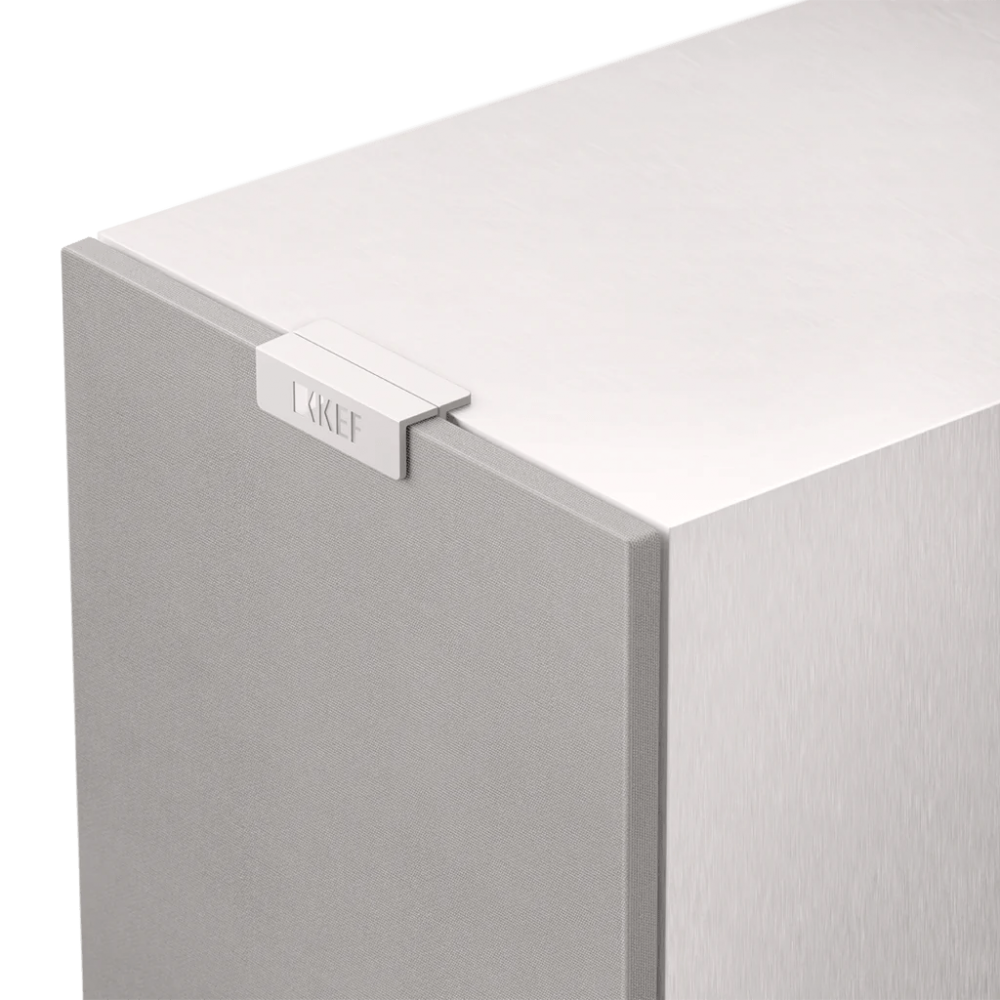

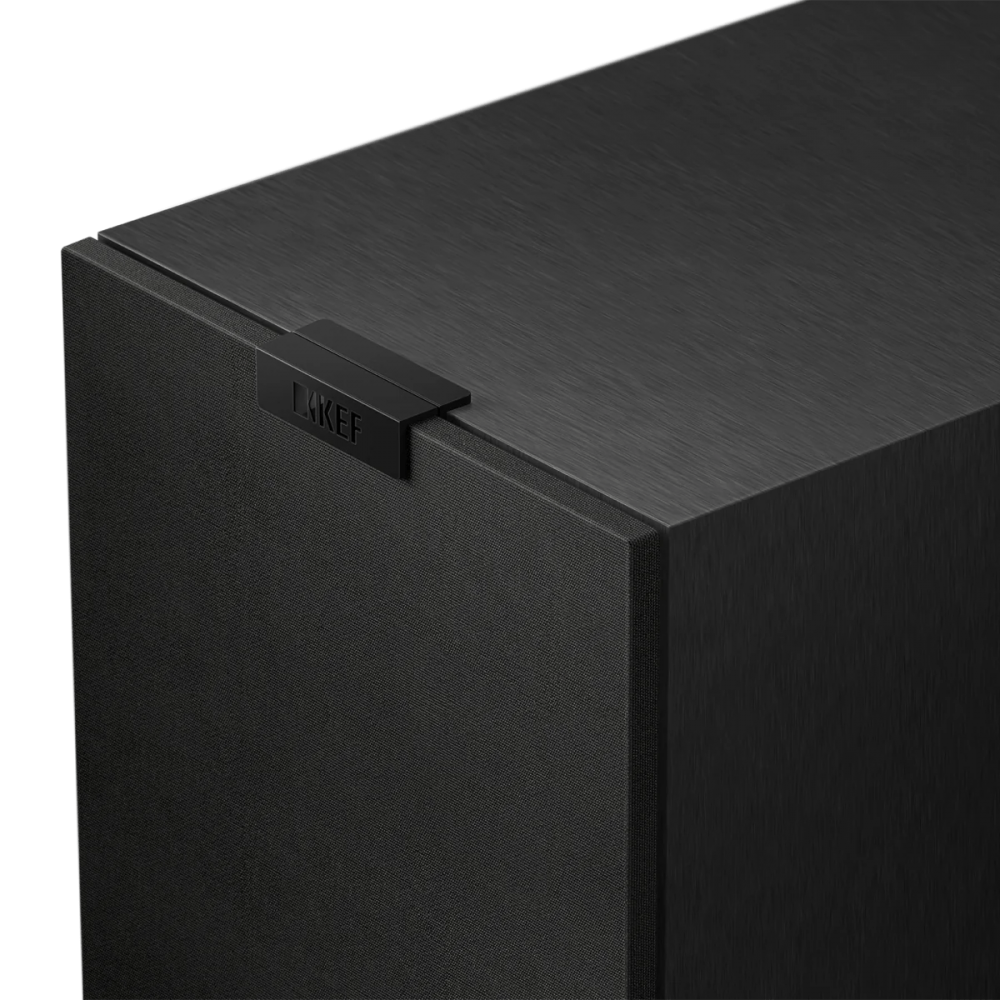

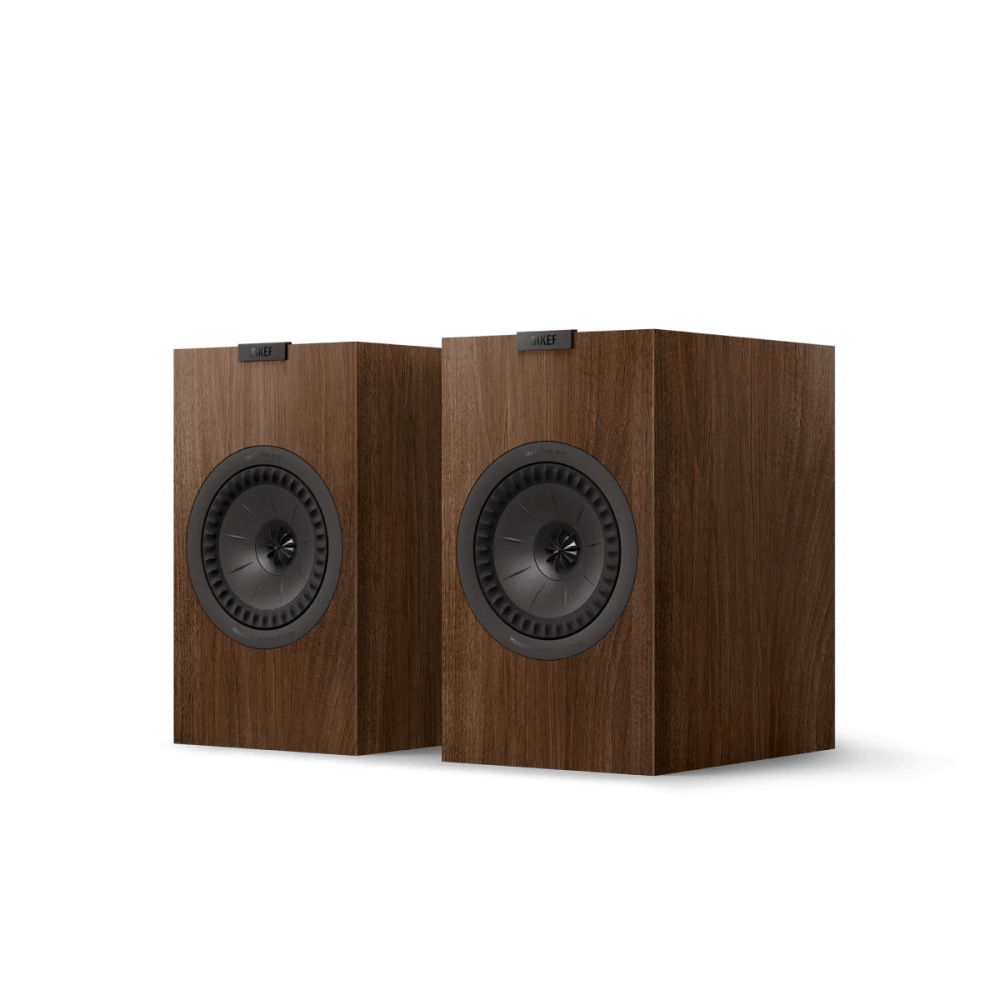

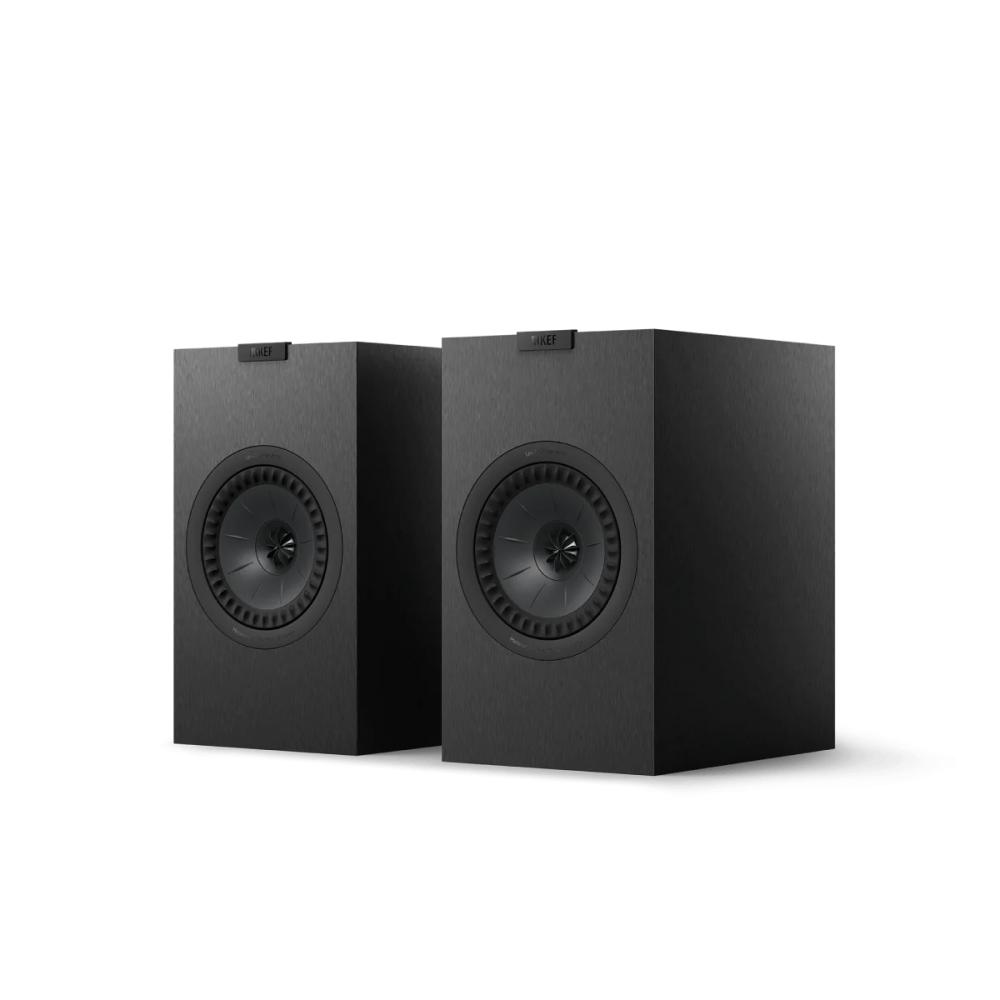

Finishes

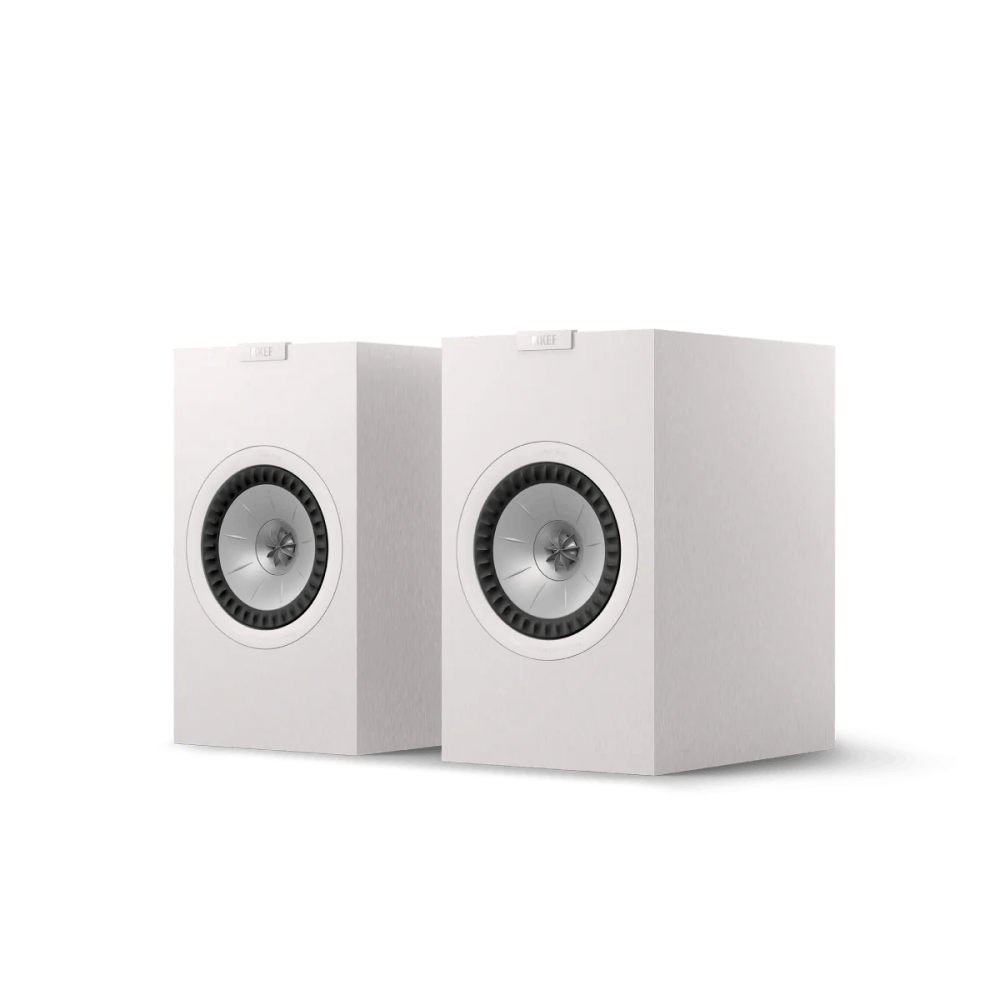

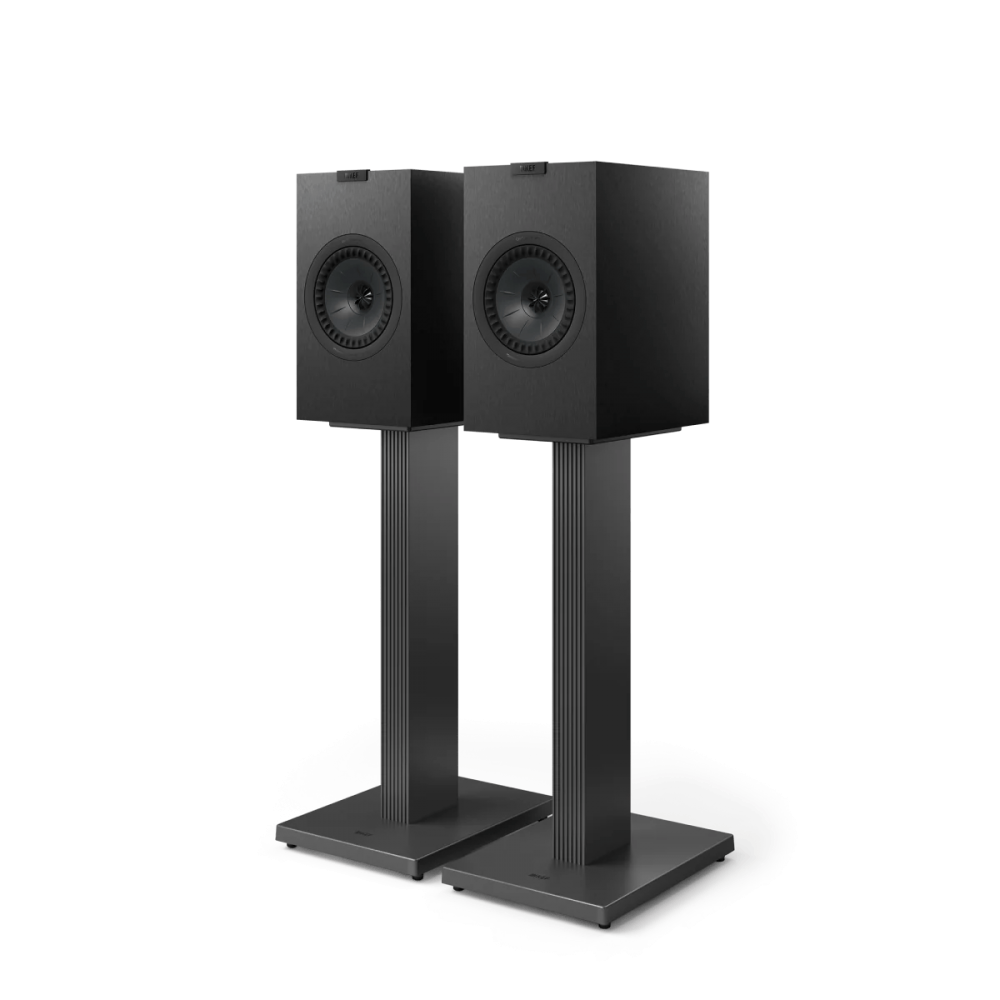

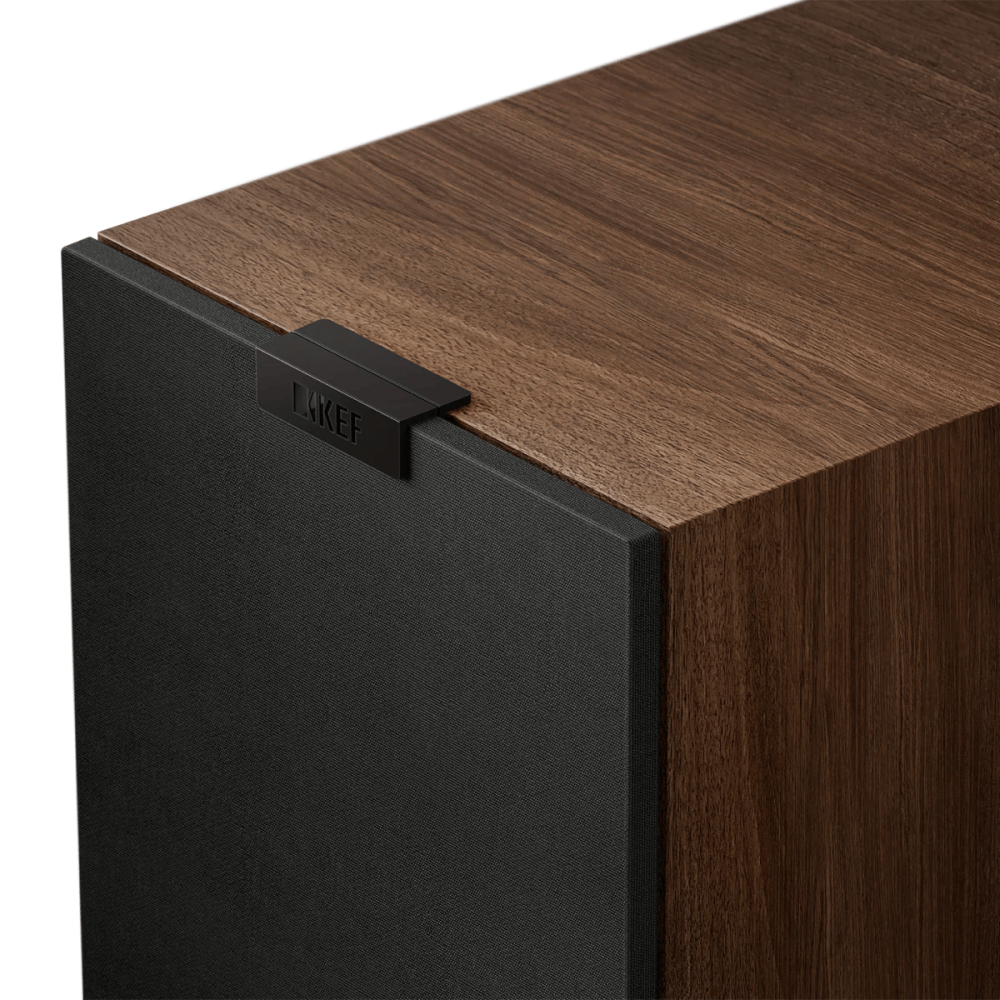

Satin Black / Satin White / Walnut

Downloads

Q Series User ManualQ Series Information Sheet

* Measurement per unit
