The Details

SPECIFICATIONS

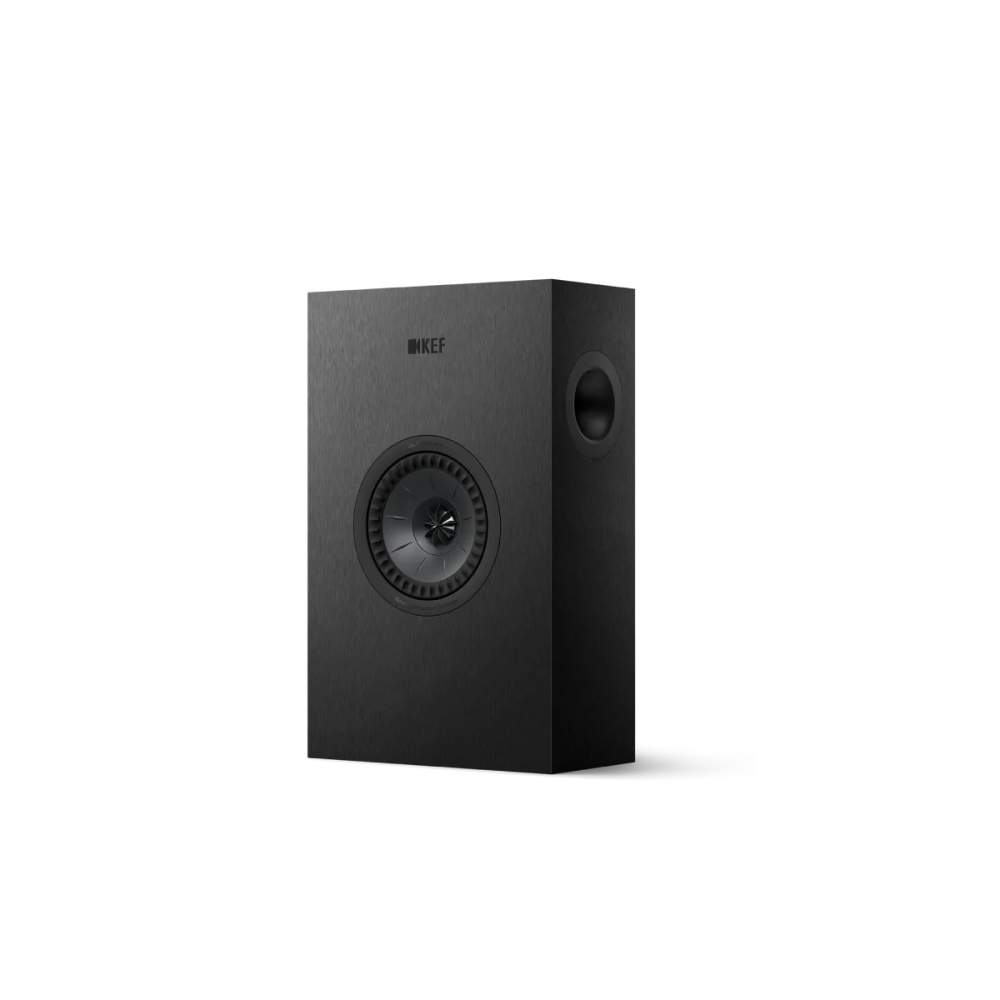

Design

Two-way bass reflex

Drive units

Uni-Q Driver Array:
HF: 25 mm (1 in.) vented aluminium dome
with MAT
LF/MF: 130 mm (5.25 in.) aluminium cone

Frequency range (-6dB)

52 Hz - 20kHz

Typical in-room bass response (-6dB)

44 Hz

Frequency response (±3dB)

65 Hz - 20 kHz

Crossover frequency

1.8 kHz

Amplifier requirements

10 - 150 W

Sensitivity (2.83V/1m)

86 dB

Harmonic distortion (90dB, 1m)

<2% 145 Hz and above
<1% 170 Hz - 20 kHz

Maximum output

108 dB

Impedance

4 Ω (min. 3.2 Ω)

Weight *

5.7 kg (12.6 lbs.)

Dimension (H x W x D) with terminal *

400 x 250 x 142 mm (15.7 x 9.8 x 5.6 in.)

Finishes

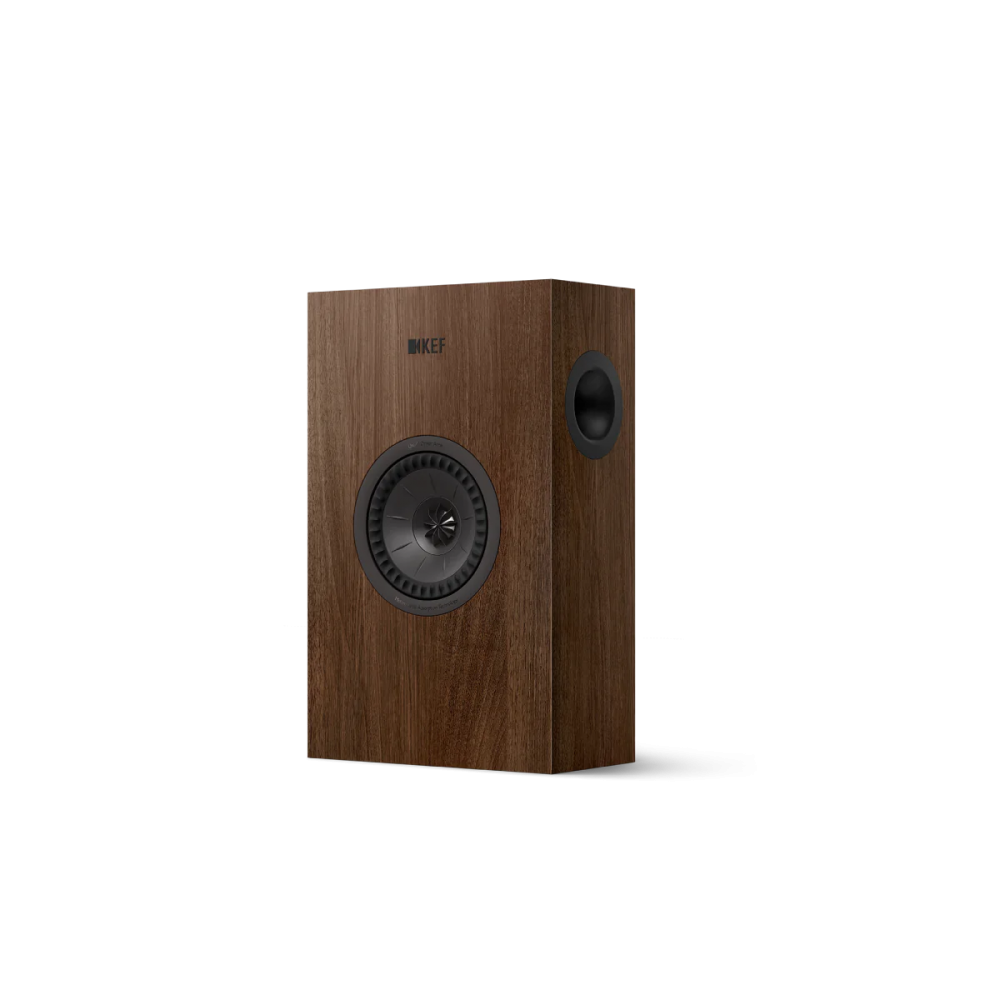

Satin Black / Satin White / Walnut

Downloads

Q Series User ManualQ Series Information Sheet

* Measurement per unit
