The Details

SPECIFICATIONS

Design

Three-way closed box

Drive units

Uni-Q Driver Array:
HF: 19 mm (0.75 in.) vented aluminium dome with MAT
MF: 100 mm (4 in.) aluminium cone
Bass Unit:
LF: 2 x 165 mm (6.5 in.) hybrid aluminium cone

Frequency range (-6dB)

52 Hz - 20 kHz

Typical in-room bass response (-6dB)

36 Hz

Frequency response (±3dB)

63 Hz - 20 kHz

Crossover frequency

560 Hz, 2.7 kHz

Amplifier requirements

15 - 200 W

Sensitivity (2.83V/1m)

86 dB

Harmonic distortion (90dB, 1m)

<2% 20 Hz and above
<1% 68 Hz - 20 kHz

Maximum output

109 dB

Impedance

4 Ω (min. 3.2 Ω)

Weight *

14.1 kg (31.1 lbs.)

Dimension (H x W x D) with terminal *

210 x 629 x 303 mm (8.3 x 24.8 x 11.9 in.)

Finishes

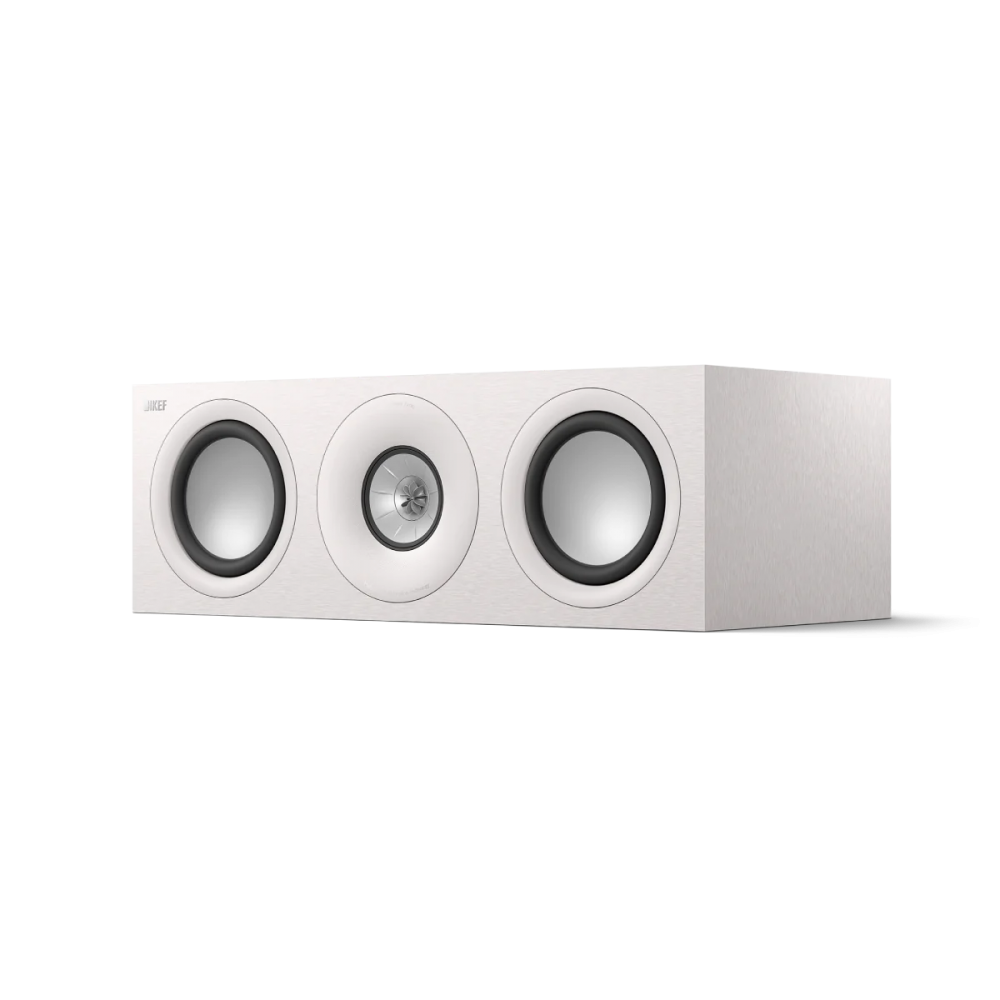

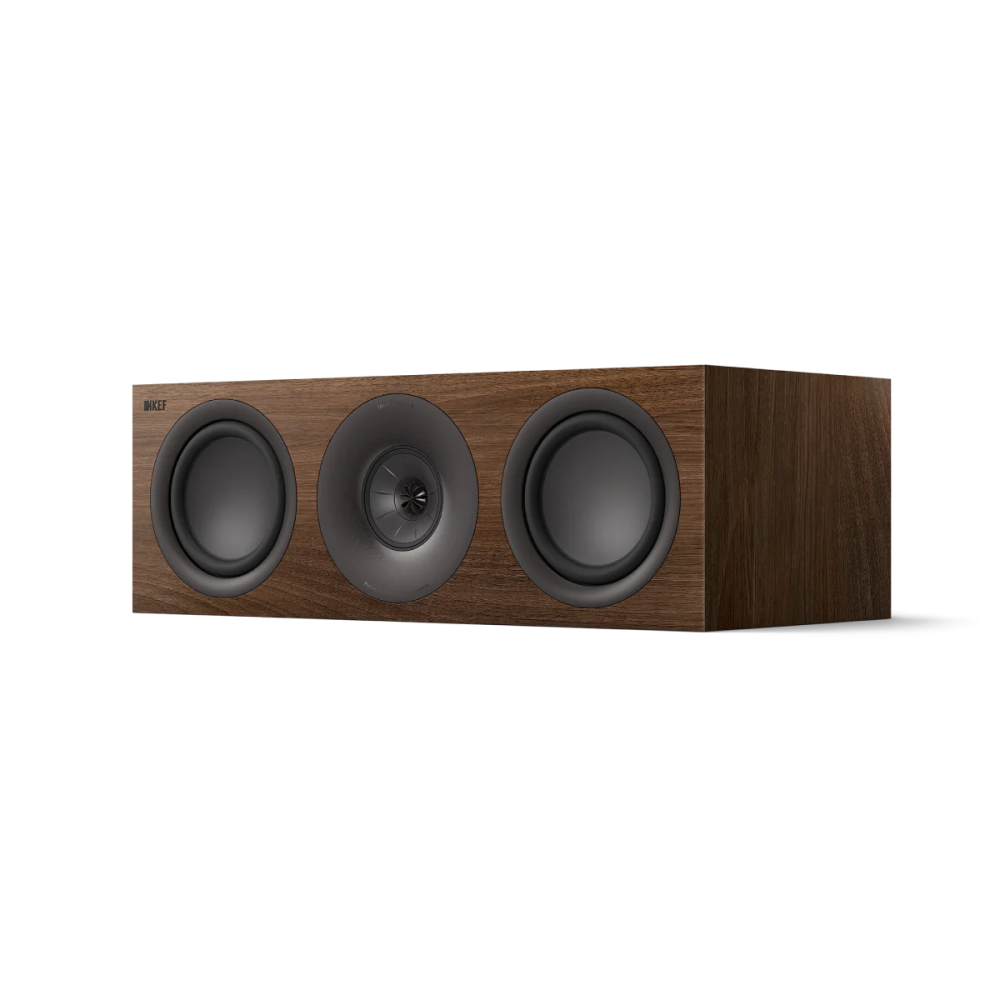

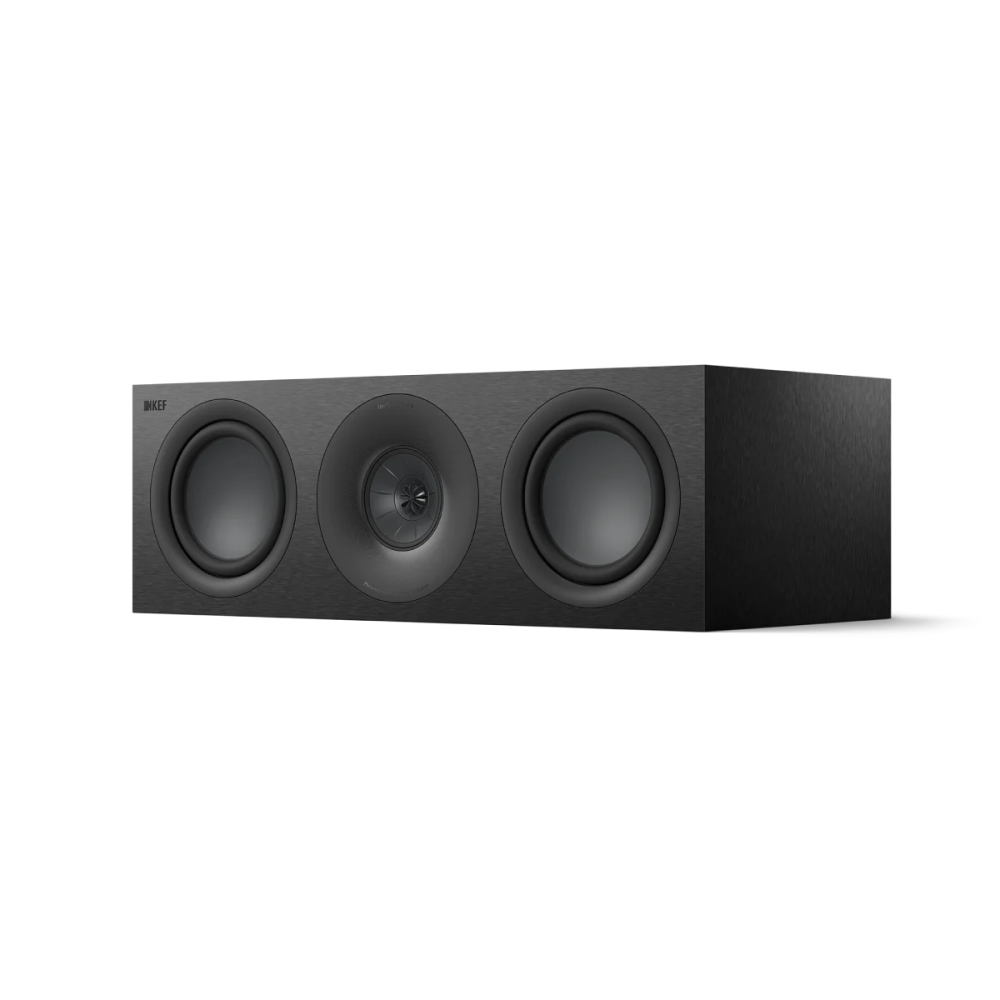

Satin Black / Satin White / Walnut

Downloads

Q Series User ManualQ Series Information Sheet

* Measurement per unit
