The Details

SPECIFICATIONS

Design

Three-way bass reflex

Drive units

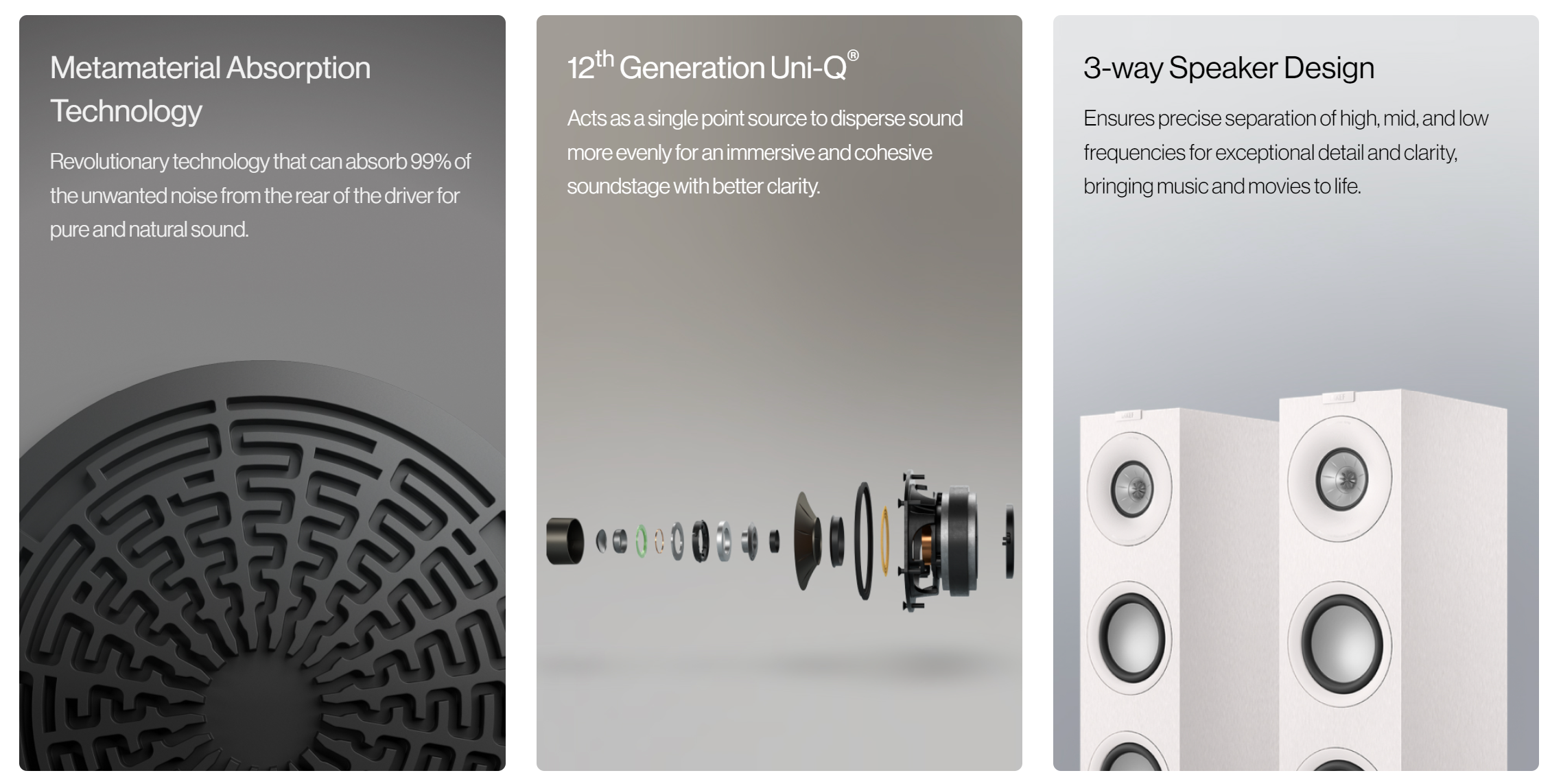

Uni-Q Driver Array:
HF: 19 mm (0.75 in.) vented aluminium dome with MAT
MF: 100 mm (4 in.) aluminium cone
Bass Unit:
LF: 2 x 165 mm (6.5 in.) hybrid aluminium cone

Frequency range (-6dB)

39 Hz - 20 kHz

Typical in-room bass response (-6dB)

28 Hz

Frequency response (±3dB)

46 Hz - 20 kHz

Crossover frequency

440 Hz, 2.3 kHz

Amplifier requirements

15 - 200 W

Sensitivity (2.83V/1m)

87 dB

Harmonic distortion (90dB, 1m)

<2% 35 Hz and above
<1% 38 Hz - 20 kHz

Maximum output

110 dB

Impedance

4 Ω (min. 3.2 Ω)

Weight *

18.4 kg (40.6 lbs.)

Dimension (H x W x D) with terminal *

950 x 210 x 315 mm (37.4 x 8.3 x 12.4 in.)

Dimension (H x W x D) with terminal with Plinth *

1001 x 317 x 315 mm (39.4 x 12.5 x 12.4 in.)

Finishes

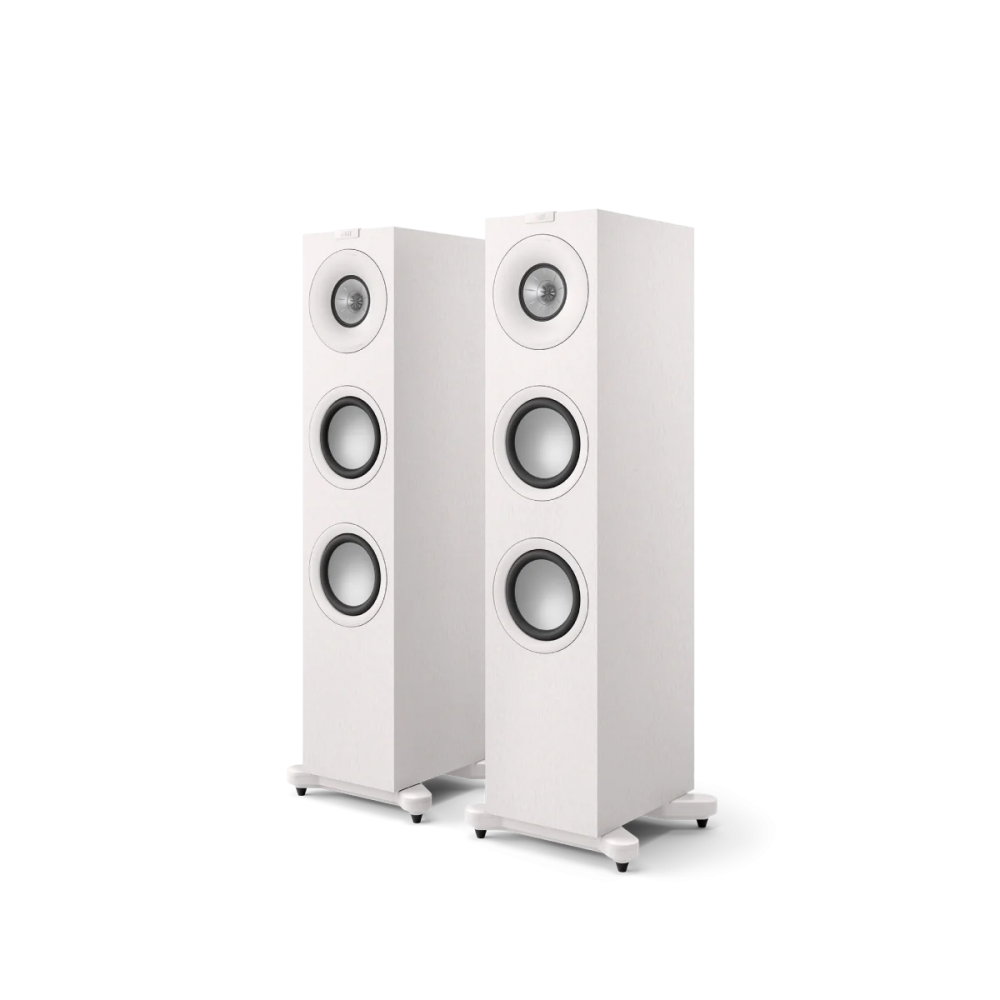

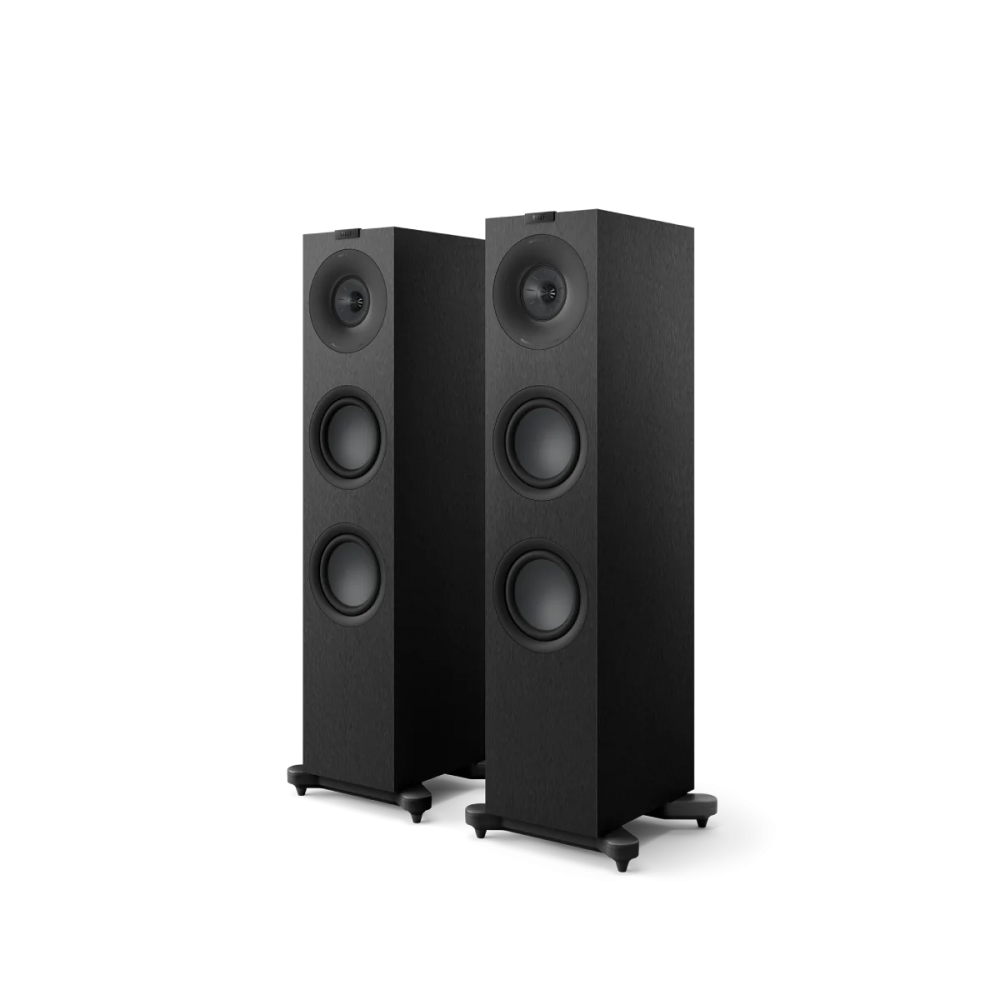

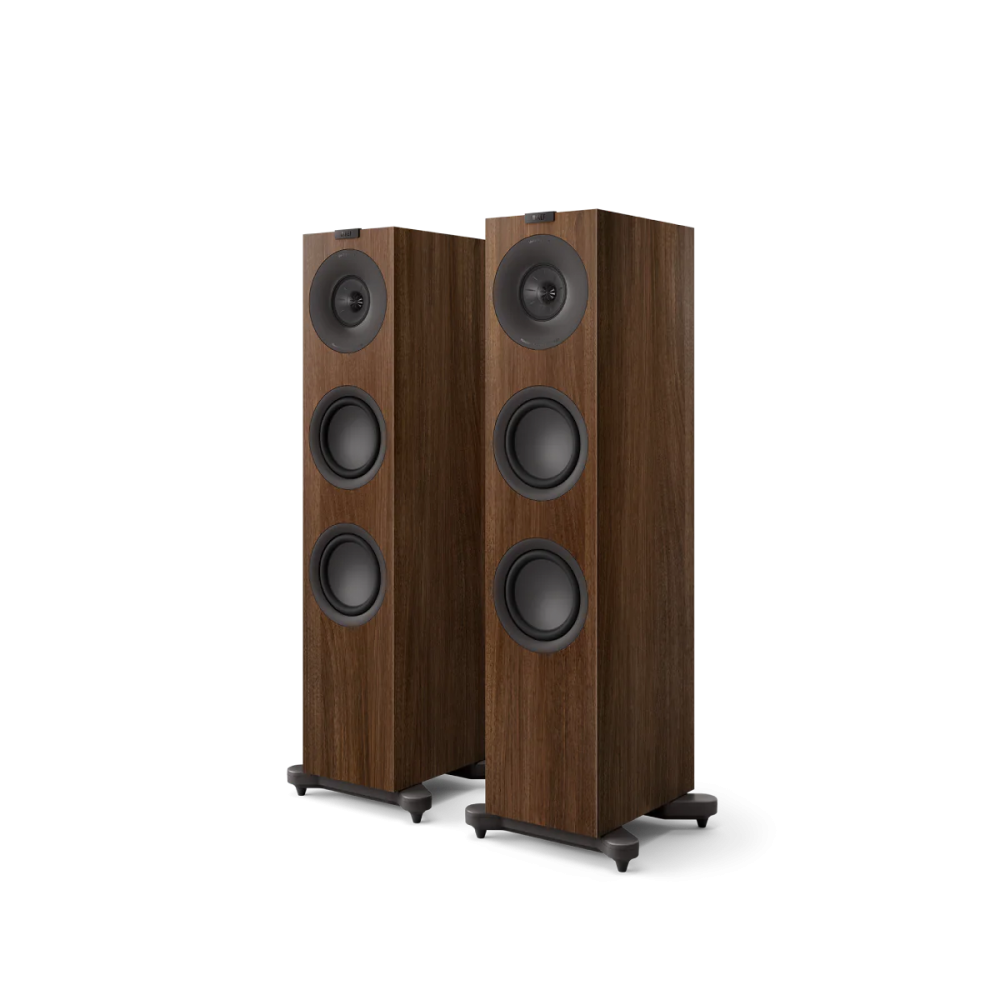

Satin Black / Satin White / Walnut

Downloads

Q Series User ManualQ Series Information Sheet

* Measurement per unit
