The Details

SPECIFICATIONS

Design

Two-way closed box

Drive units

Uni-Q Driver Array:
HF: 25 mm (1 in.) vented aluminium dome
with MAT
LF/MF: 130 mm (5.25 in.) aluminium cone

Frequency range (-6dB)

96 Hz - 20 kHz

Typical in-room bass response (-6dB)

90 Hz

Frequency response (±3dB)

105 Hz -  20kHz

Crossover frequency

2.7 kHz

Amplifier requirements

10 - 150 W

Sensitivity (2.83V/1m)

86 dB

Harmonic distortion (90dB, 1m)

<2% 145 Hz and above
<1% 170 Hz - 20 kHz

Maximum output

109 dB

Impedance

4 Ω (min. 3.2 Ω)

Weight *

4.5 kg (9.9 lbs.)

Dimension (H x W x D) with terminal *

176 x 180 x 259 mm (6.9 x 7.1 x 10.2 in.)

Finishes

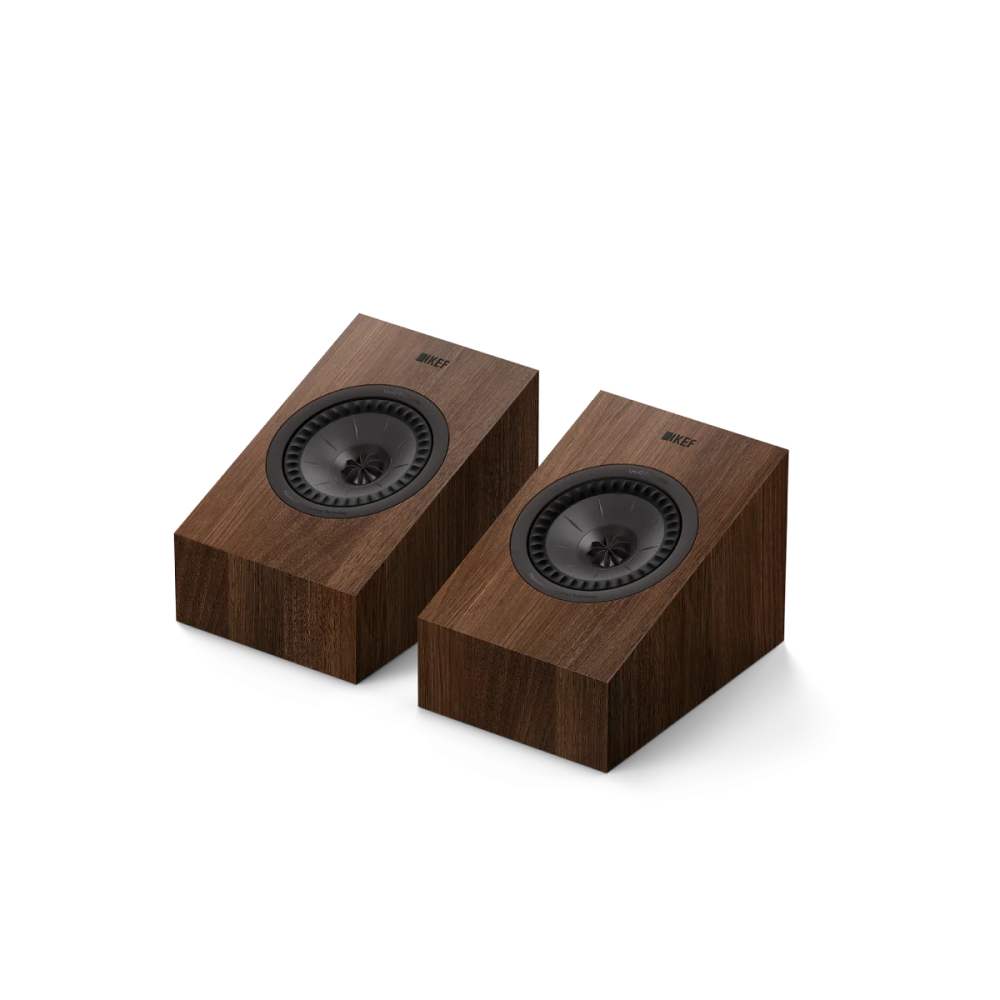

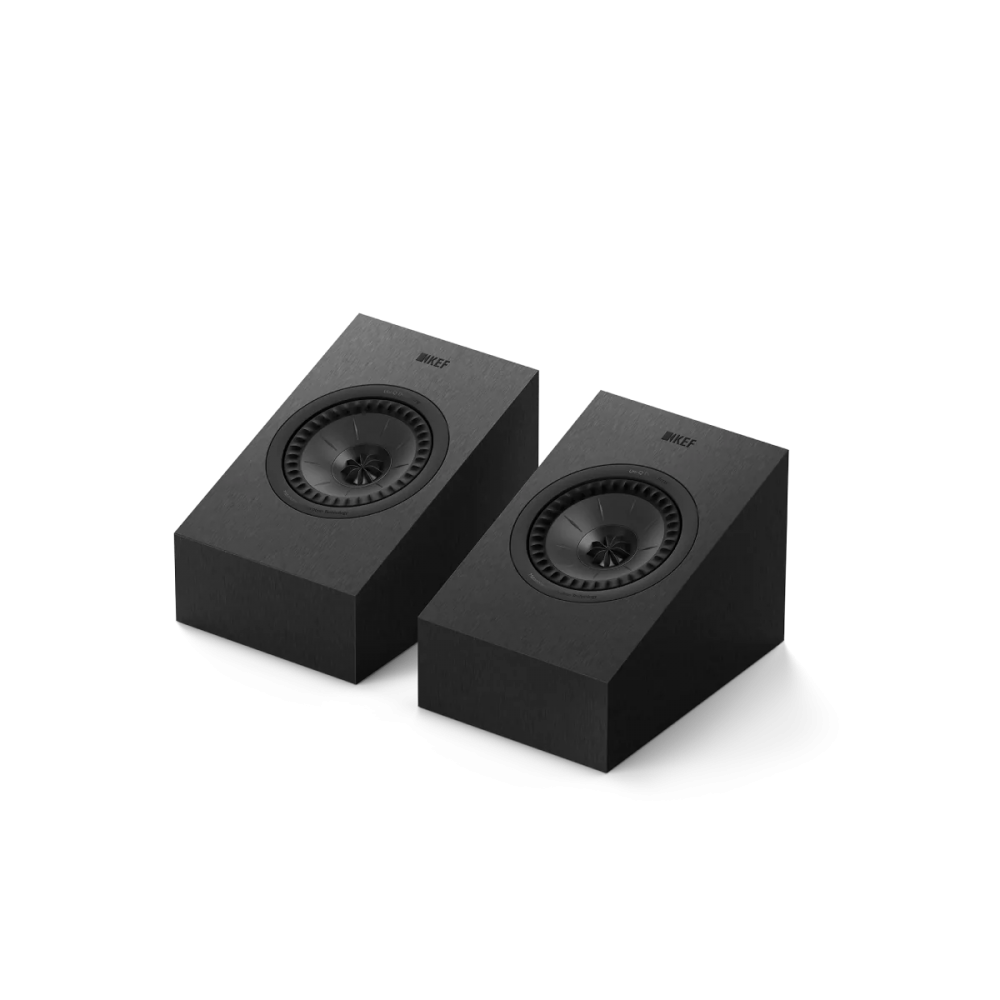

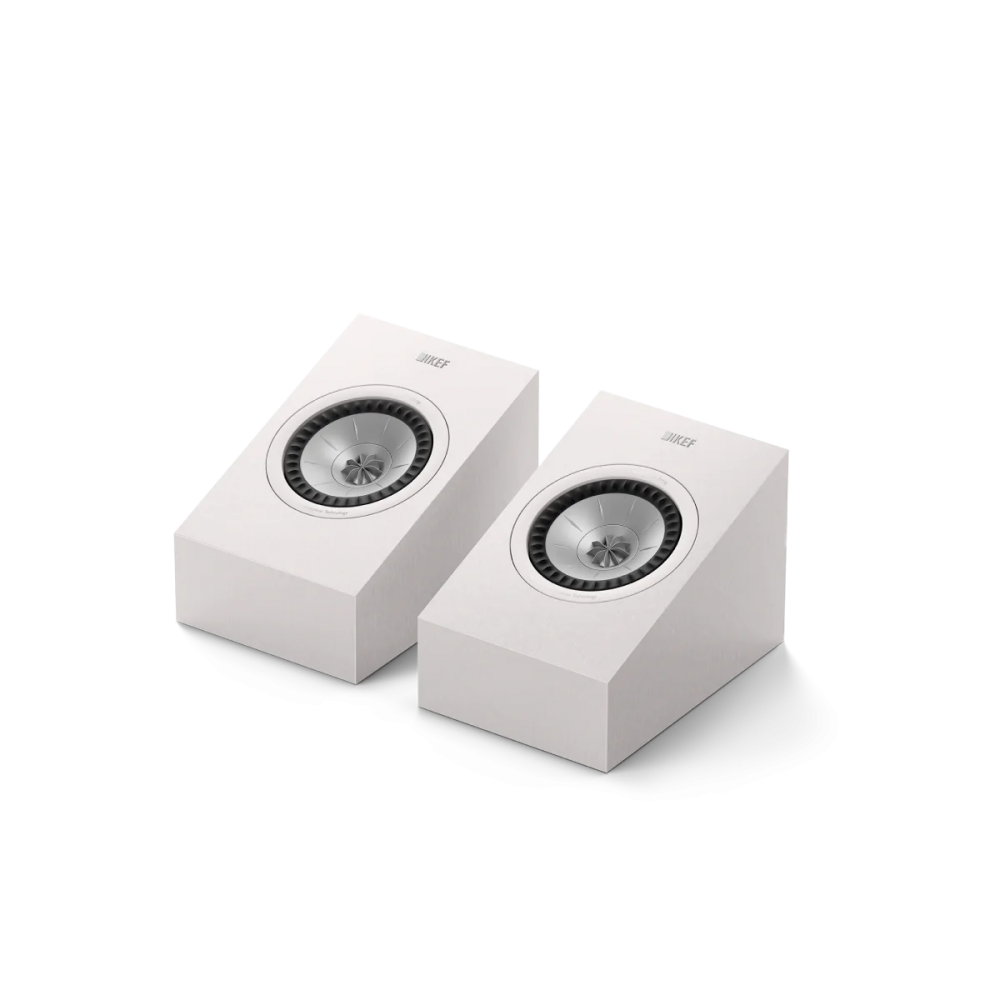

Satin Black / Satin White / Walnut

Downloads

Q8 Meta User ManualQ Series Information Sheet

* Measurement per unit
