EISA LOUDSPEAKER SERIES 2023 - 2024​

“Whether used for music or movies, across the speakers there’s a dynamic, detailed and thrillingly natural sound combining controlled, extended lows with open, wide-reaching highs.” – Aug 2023​

FULL REVIEW

An icon born from The Reference

A suite of class-leading technological innovations drawn from The Reference for exceptional acoustic performance.

Metamaterial Absorption Technology

Absorbs 99% of unwanted sound for pure and natural sound.

True bass definition

Hybrid aluminium bass drivers with greater driver excursion for tight, deep, controlled bass.

12^th generation Uni-Q^®

Acts as a single point source to enlarge the 'sweet spot' and disperse sound more evenly.

Home theatre made versatile

With a choice of matching home theatre models to pair with, the stage is set for an immersive movie experience.

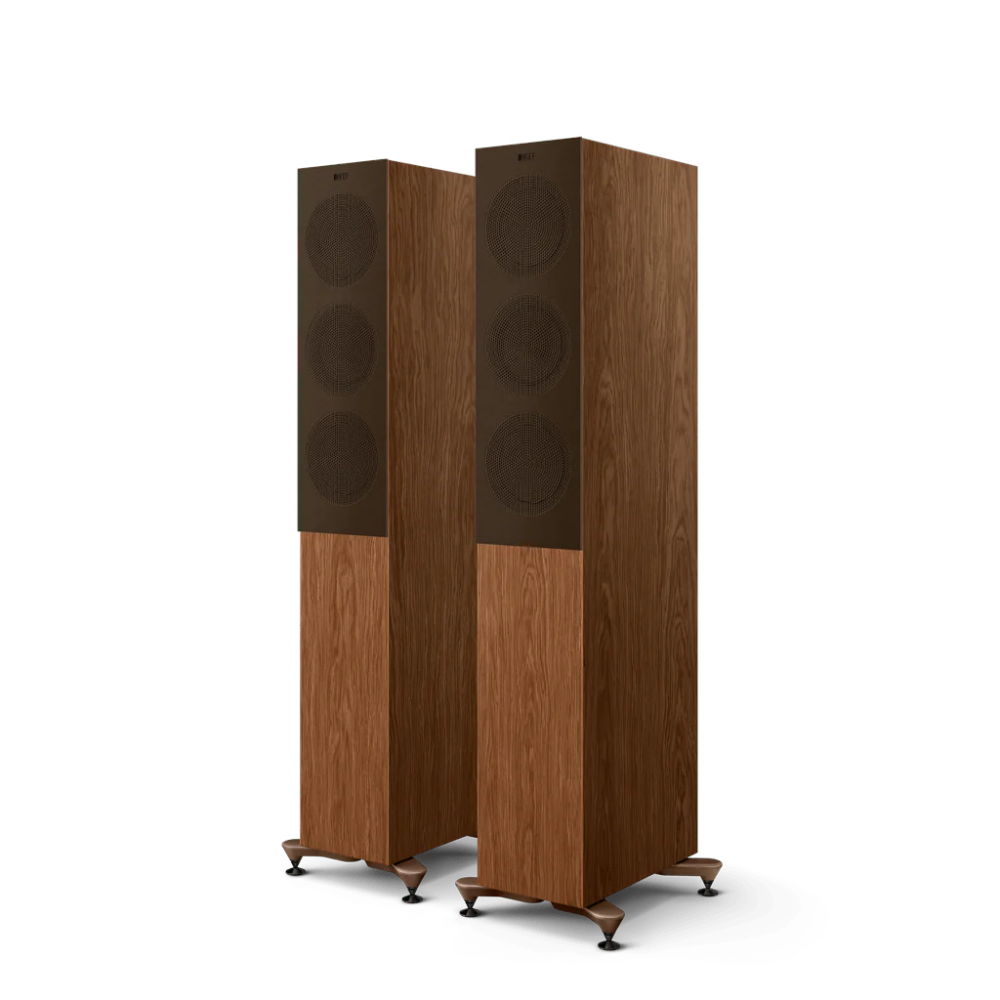

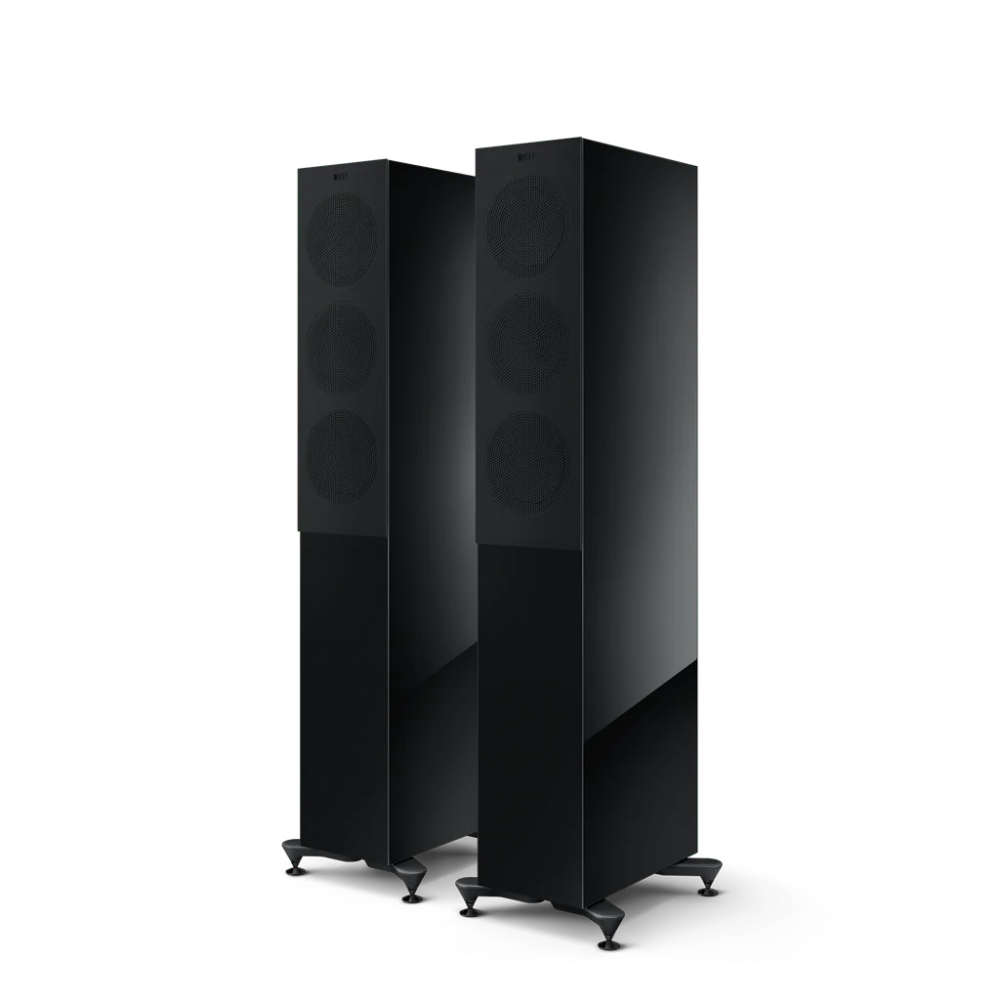

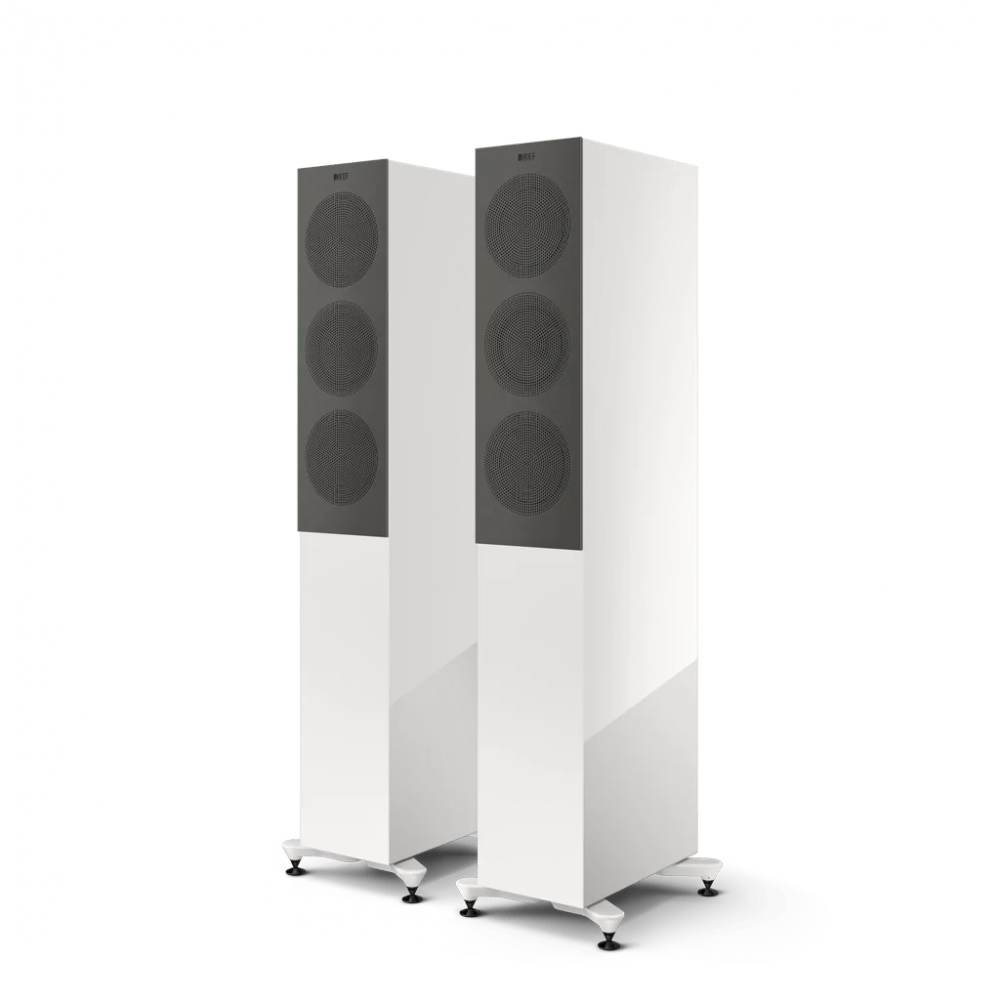

Microfibre grilles

With 1801 precision-cut holes for each driver, performance is ensured even when the drivers are covered.

SPECIFICATIONS

DESIGN

Three-way bass reflex

DRIVE UNITS

Uni-Q Driver Array:
HF: 25 mm (1 in.) vented aluminium dome with MAT
MF: 125 mm (5 in.) aluminium cone
Bass Unit:
LF: 2 x 130 mm (5.25 in.) hybrid aluminium cone

CROSSOVER FREQUENCY

400 Hz, 2.7 kHz

FREQUENCY RANGE (-6dB)

38 Hz - 50 kHz

TYPICAL IN-ROOM BASS RESPONSE (-6dB)

29 Hz

FREQUENCY RESPONSE (±3dB)

52 Hz - 28 kHz

HARMONIC DISTORTION (90dB, 1m)

<1% 75 Hz and above
<0.5% 110 Hz - 20 kHz

MAXIMUM OUTPUT

110 dB

AMPLIFIER REQUIREMENTS

15 - 200W

NOMINAL IMPEDANCE

4 Ω (min. 3.2 Ω)

SENSITIVITY (2.83V/1m)

87 dB

WEIGHT *

24.5 kg (54.0 lbs)

DIMENSION (H x W x D) WITH TERMINAL *

1025 x 175 x 344 mm (40.4 x 6.9 x 13.5 in.)

DIMENSION (H x W x D) WITH TERMINAL WITH PLINTH *

1072 x 272 x 344 mm (42.2 x 10.7 x 13.5 in.)

FINISHES

Black Gloss / White Gloss / Walnut
