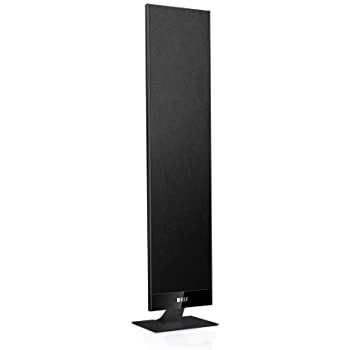

Slim profile full-sized satellite speakers

With its ultra-low profile drivers the T301 packs an awful lot of punch for a speaker that's only 3.5cm thick.

In the larger T Series models a high performance 25mm (1in.) vented tweeter is paired with two 115mm (4.5in.) ultra-low profile bass and midrange drivers for an even bigger sound.

The Details

SPECIFICATIONS

DESIGN

Two and a half-way closed box

DIMENSIONS

(H x W x D) 600* x 140 x 35 mm (23.6 x 5.5 x 1.4 in.)

1.4 Litres

WEIGHT

1.5kg (3.3lbs)

DRIVE UNITS

2 x 115mm (4.5in.) dual layer MF
25mm (1in.) aluminium HF

FREQUENCY RESPONSE

80Hz - 30kHz

CROSSOVER FREQUENCIES

1.7kHz

AMPLIFIER REQUIREMENTS

T10 - 150 W

SENSITIVITY

(2.83V/1m) 88dB (floor stand mount)

IMPEDANCE

8 Ohms

INTERNAL VOLUME

1.4 Litres

MAXIMUM OUTPUT

110dB (SPL)

DIMENSIONS

(H x W x D) 600* x 140 x 35 mm (23.6 x 5.5 x 1.4 in.)

DOCUMENT DOWNLOAD

T Series Brochure
T101/ T301 Satellite Speaker Manual
T Series Technologies Explained Document
T Series Mounting Template

REMARKS

* Height of satellites will increase by 30mm when using supplied desk stand. Not all models / finishes are available in all markets. Contact your local dealer for specific range details.
