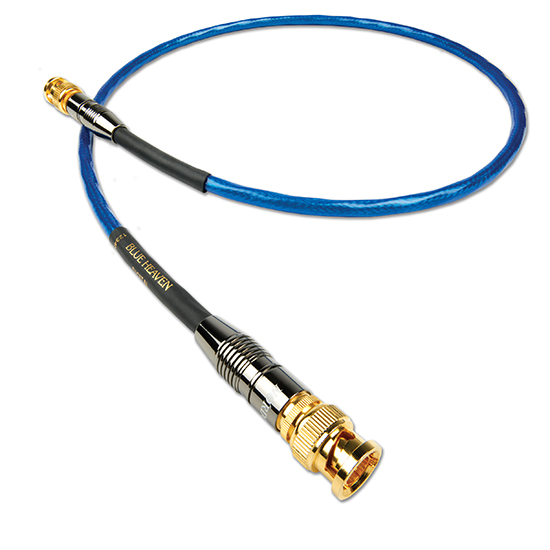

BLUE HEAVEN DIGITAL INTERCONNECT
The safe transfer of digital data streams depends on achieving accurate impedance within the transmission chain. The S/PDIF transmission standard dictates a 75 Ohm co-axial lead, but it is surprising how few cables meet that specification.
The Blue Heaven Digital Interconnect is a true 75 Ohm conductor. Employing a Micro Mono-Filament, co-axial construction. This advanced topology allows us to achieve superior electrical performance and geometrical accuracy, irrespective of cable length. The Blue Heaven Digital Interconnect ensures high-speed, low-loss characteristics and, due to its BNC termination, the 75 Ohm standard is maintained, even across the connectors. Each BNC connector is supplied with a gold-plated RCA adaptor, keeping the cable consistent in performance across any combination of co-axial inputs or outputs.
SPECIFICATIONS
| Insulation: | Fluorinated Ethylene Propylene (FEP) | |
| Construction: | Mechanically tuned spacing, Micro Mono-Filament, co-axial design | |
| Conductors: | 1 x 24 AWG | |
| Material: | Silver-plated 99.9999% solid core OFC | |
| Capacitance: | 16pF/ft | |
| Impedance: | 75 Ohm | |
| Overall Shield Coverage: | 95% | |
| Velocity of Propagation: | 85% | |
| Termination: |
Gold-plated true 75 Ohm BNC to Gold-plated true 75 Ohm BNC (Gold-plated BNC to RCA adapters included) |
