The New Aspiration

“The Aurender N20 hits the bullseye with simplicity, stability, speed, and sound quality. The product is as simple as possible, but no simpler”, said AudiophileStyle.com and we couldn’t agree more.

N20 sits in the enviable “sweet spot” of cost vs. performance in the middle of Aurender’s range of digital source components. Equally at home in a cost-no-object system or as the cornerstone of a more modest system, N20 is designed to be connected to the world’s best high-quality DACs. the N20 features ultra high-end SPDIF (Coaxial, BNC, Optical) and AES/EBU outputs in addition to an isolated USB Audio output. The SPDIF digital output suite is controlled by a precise OCXO clock for long-term jitter reduction, achieving the perfect marriage of low noise and low jitter. A word clock or master clock input is also provided for users who wish to sync with an external clock. High-resolution file support for all major codecs goes to the extreme limits, and on-the-fly DSD-to-PCM conversion by FPGA is available for SPDIF outputs. N20 is equipped with two user-installable storage bays, allowing the user to select the drive type and capacity to meet their own needs. The handsome machined aluminum front panel features a large 8.8” full-color IPS LCD display that reproduces the album art, artist name and song title.

A true overachiever, the N20 fully embodies the virtues of high-end audio performance and user-friendliness expected from Aurender.

新愿望

“Aurender N20 凭借简单性、稳定性、速度和音质一鸣惊人。产品尽可能简单，但绝不简单”，AudiophileStyle.com 表示，我们完全同意。

N20 位于 Aurender 数字源组件系列的中间，在成本与性能之间具有令人羡慕的“最佳平衡点”。N20 既适合用于不考虑成本的系统，也适合作为更适中的系统的基石，旨在连接到世界上最好的高质量 DAC。N20 具有超高端 SPDIF（同轴、BNC、光纤）和 AES/EBU 输出，以及独立的 USB 音频输出。SPDIF 数字输出套件由精确的 OCXO 时钟控制，可长期减少抖动，实现低噪音和低抖动的完美结合。还为希望与外部时钟同步的用户提供字时钟或主时钟输入。对所有主要编解码器的高分辨率文件支持达到了极限，并且 FPGA 的即时 DSD 到 PCM 转换可用于 SPDIF 输出。N20 配备两个用户可安装的存储托架，允许用户选择驱动器类型和容量以满足自己的需求。美观的机加工铝制前面板配有一个 8.8 英寸全彩 IPS LCD 大显示屏，可重现专辑封面、艺术家姓名和歌曲标题。

N20 是一款真正的卓越产品，充分体现了 Aurender 所期望的高端音频性能和用户友好性的优点。

Key Features

主要特点

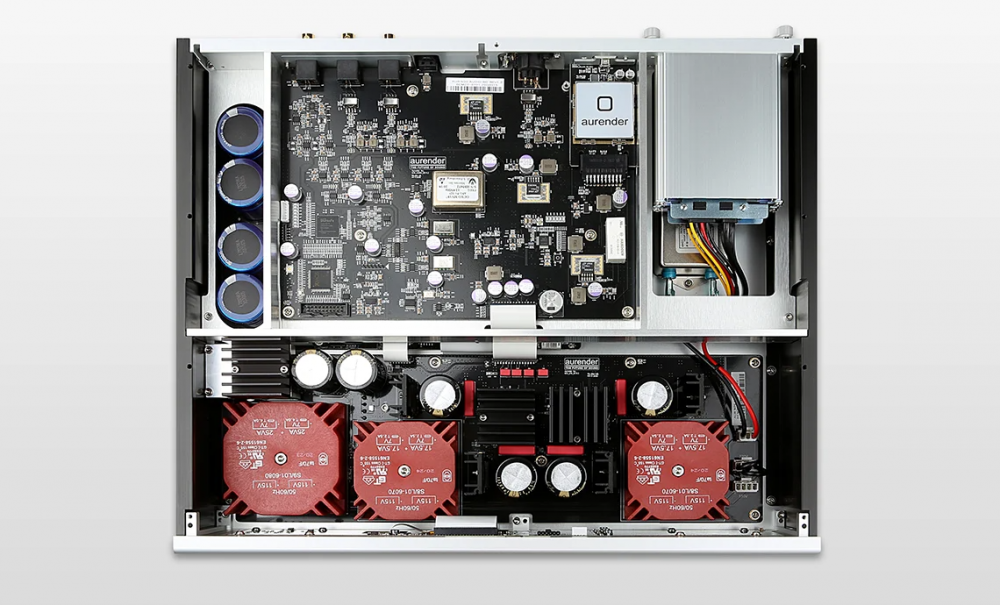

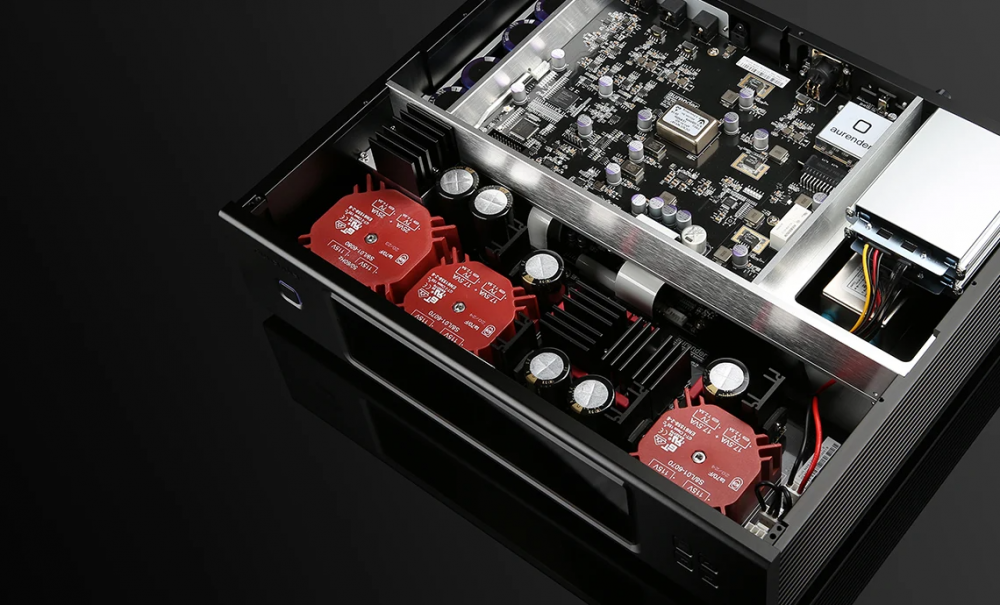

Linear Power Supply with Integrated UPS

Clean power is the single most important factor in enjoying your favorite music with the highest fidelity from a digital source component. N20’s unique hybrid power supply, on which the flagship N30SA is based, delivers a pure DC current to flawlessly power the digital audio output board, while a separate linear power supply chain feeds clean power to the non-audio adjacent components of the machine.

集成 UPS 的线性电源

清洁电源是享受数字源组件中最高保真度的喜爱音乐的最重要因素。旗舰产品 N30SA 所基于的 N20 独特的混合电源可提供纯直流电流，完美地为数字音频输出板供电，而单独的线性电源链则为机器的非音频相邻组件提供清洁电源。

OCXO Clock Controlled Outputs

Aurender’s Oven Controlled Crystal Oscillator (OCXO) clocks are unique in a category that has historically treated superior SPDIF and AES/EBU audio outputs as an afterthought. Unlike USB, where the DAC’s clock matters most, SPDIF and AES/EBU data streams are only as good as the transport clocks that govern them. N30SA, N20, and W20SE all employ exceptionally accurate and stable OCXO clocks for a smooth, saturated, and laser-focused audio presentation.

OCXO 时钟控制输出

Aurender 的恒温控制晶体振荡器 (OCXO) 时钟在传统上将优质 SPDIF 和 AES/EBU 音频输出视为事后考虑的类别中独树一帜。与 DAC 时钟最重要的 USB 不同，SPDIF 和 AES/EBU 数据流的好坏取决于控制它们的传输时钟。N30SA、N20 和 W20SE 均采用极其精确和稳定的 OCXO 时钟，以实现流畅、饱和和激光聚焦的音频呈现。

Flagship DNA in a Single Chassis Component

Although N30SA plays in a league of its own when it comes to resolution, timbral saturation, and lowering the noise-floor by physically separating the audio outputs into a separate chassis, N20 includes very nearly the same hardware features and benefits in a single chassis. For many music lovers and audiophiles, N20 is the promised land.

单机箱组件中的旗舰 DNA

尽管 N30SA 在分辨率、音色饱和度和通过将音频输出物理分离到单独的机箱来降低本底噪声方面独树一帜，但 N20 在单个机箱中包含了几乎相同的硬件功能和优势。对于许多音乐爱好者和发烧友来说，N20 是应许之地。

Clock Input

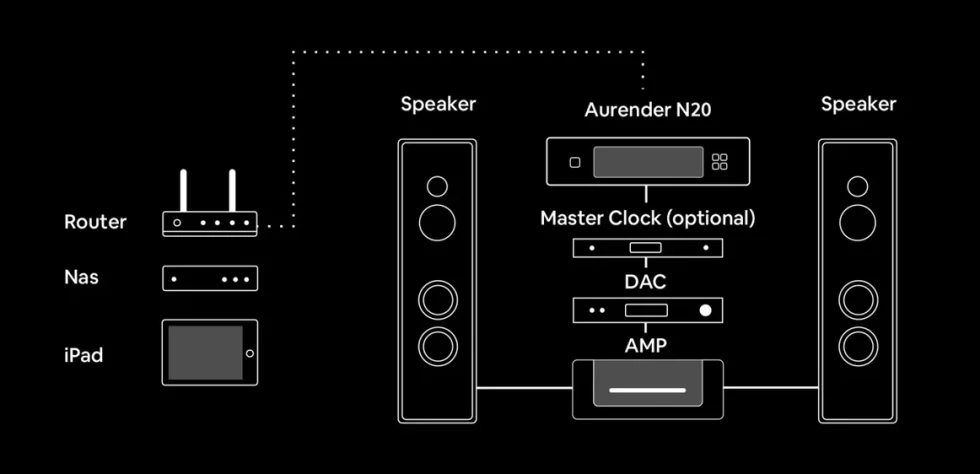

N20, N30SA, W20, and W20SE all feature a unique Clock Input for connectivity with an external Master Clock such as MC20. A superior Master Clock can make a good system sound uncannily realistic, giving a new literal meaning to “High Fidelity.”

时钟输入

N20、N30SA、W20 和 W20SE 均具有独特的时钟输入，可与外部主时钟（如 MC20）连接。卓越的主时钟可以使良好的系统听起来异常逼真，从而赋予“高保真”新的字面含义。

PCM Upsampling

N20 is capable of upsampling any lower resolution content up to 176.4/192kHz for better performance with some DACs. Upsampling effects only the system’s SPDIF digital outputs. USB is always bit-perfect with no digital signal processing.

PCM 升频

N20 能够将任何低分辨率内容升频至 176.4/192kHz，以便与某些 DAC 配合使用，获得更好的性能。升频仅影响系统的 SPDIF 数字输出。USB 始终是位完美的，无需数字信号处理。

User-Installable Storage Options

N20 is built with two trays for user-installable storage. Need a lot of capacity? Load up to 2 8TB SSDs! Not into storing files and prefer to stream? Leave them empty, and don’t pay for storage capacity you won’t use.

用户可安装的存储选项

N20 内置两个托盘，供用户安装存储。需要大量容量？最多可装载 2 个 8TB SSD！不喜欢存储文件而更喜欢流媒体？将它们留空，不要为不会使用的存储容量付费。

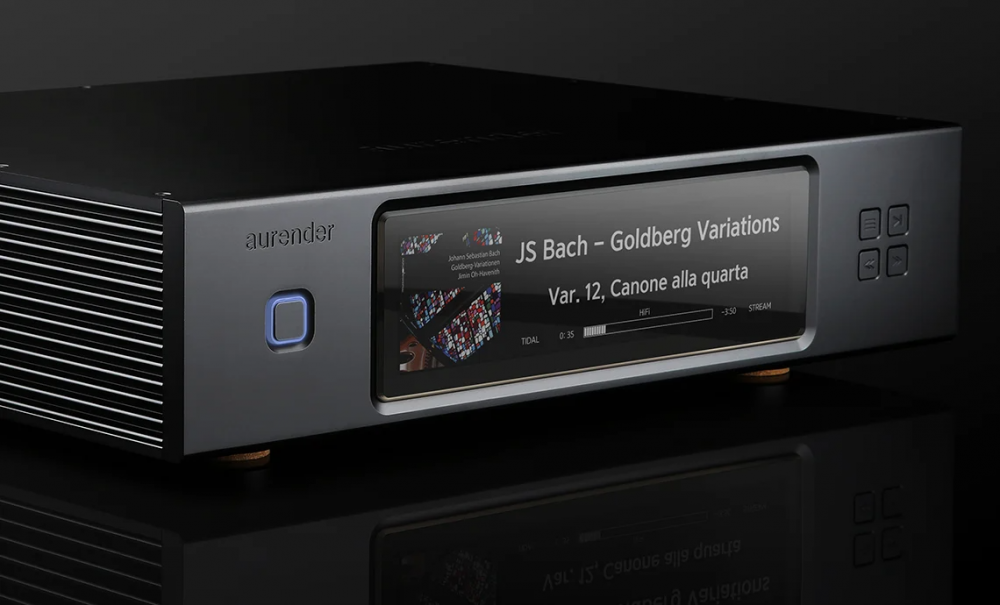

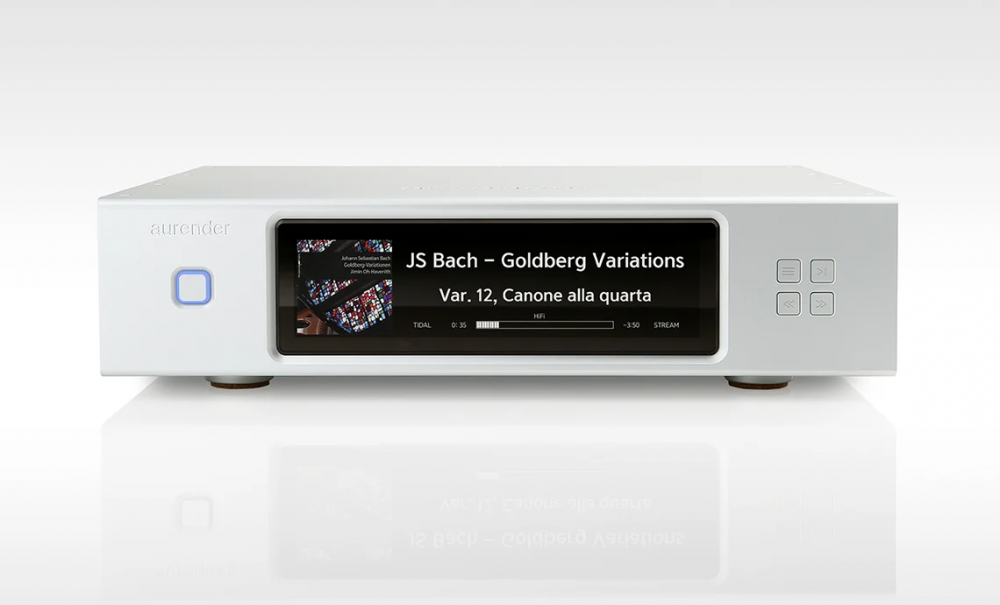

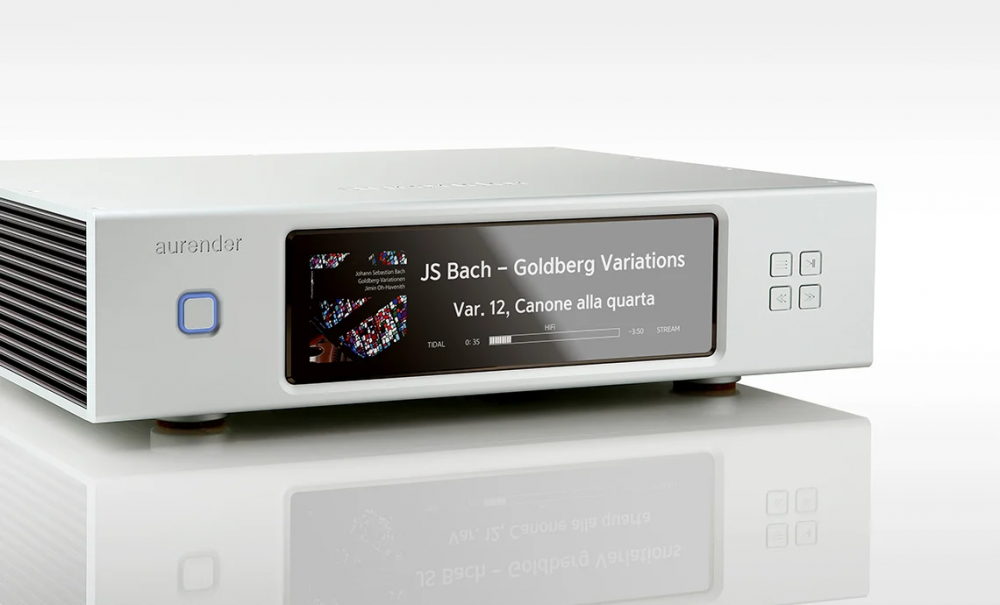

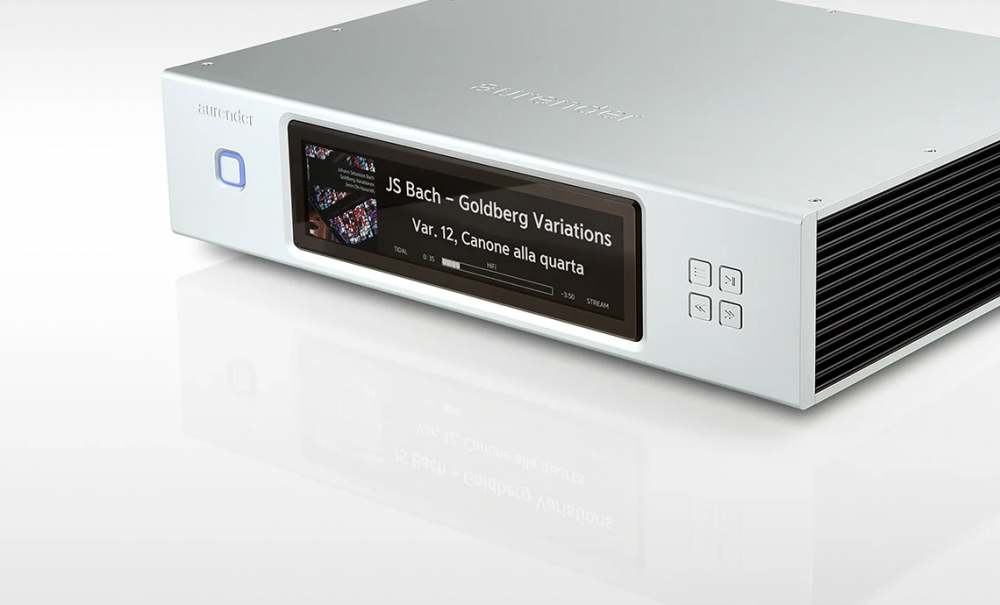

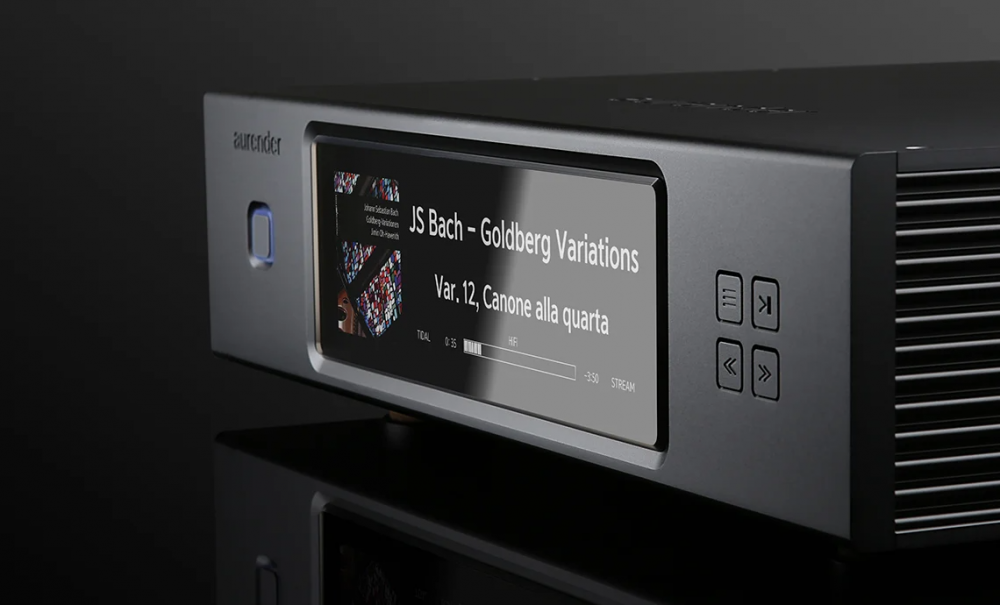

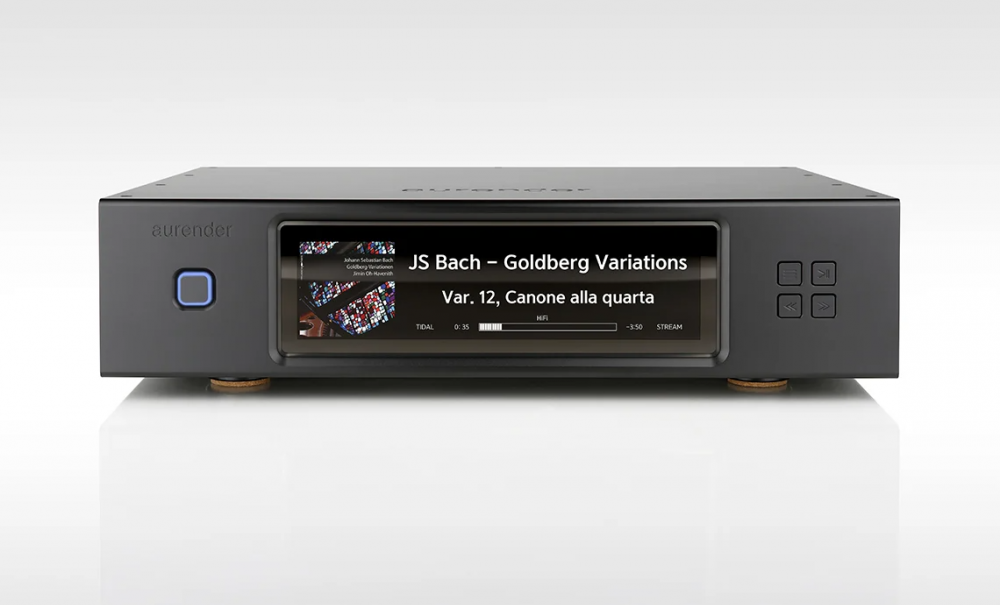

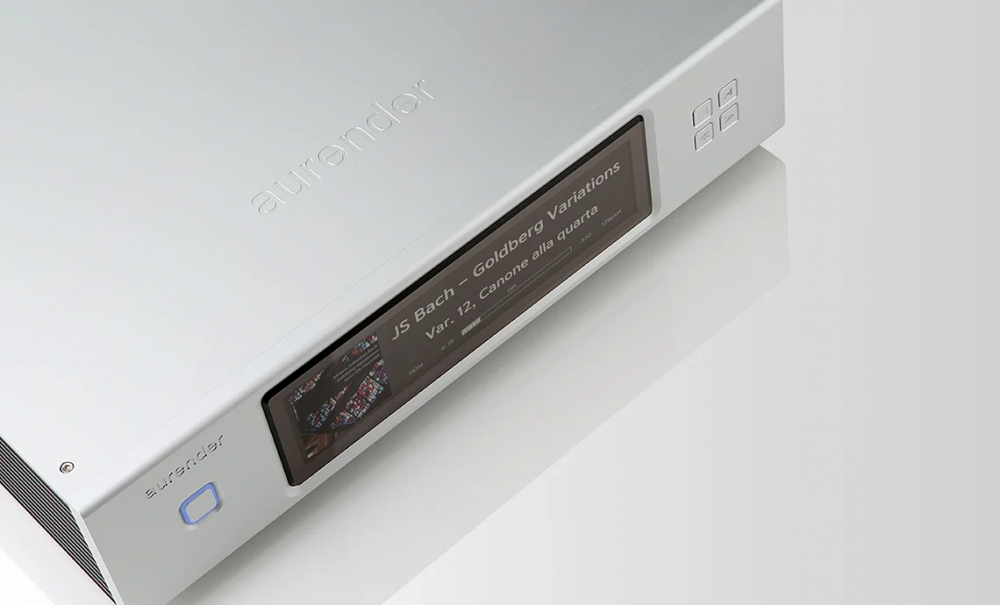

8.8″ Front Panel Display

An impressive 8.8” full-color IPS LCD display reproduces the album art, artist name and song title in utter elegance.

8.8 英寸前面板显示屏

令人印象深刻的 8.8 英寸全彩 IPS LCD 显示屏以极为优雅的方式再现了专辑封面、艺术家姓名和歌曲名称。

Physical Specifications

Dimensions : 16.9″W x 14″W x 4.4″H (3.9″H)
Weight : 29.8 lb
Material : Machined Aluminum Chassis
Front Panel Display : 8.8″ 1920 x 480 Wide IPS Color LCD

物理规格

尺寸：16.9 英寸宽 x 14 英寸宽 x 4.4 英寸高 (3.9 英寸高)
重量：29.8 磅
材质：机加工铝制底盘
前面板显示屏：8.8 英寸 1920 x 480 宽 IPS 彩色 LCD

Technical Specifications

Power Supply : 1x50W (CPU), 2x35W (4 cores) for Digital Output Board
CPU : Intel Low Power Quad Core
RAM : 8GB
Library Storage Capacity : 2X 2.5″ Compartments (User-Installable Storage)
SSD for System & Cache : 480GB NVME
Data USB Ports : 2X USB 3.0 (Rear)
Software Suite : Aurender Conductor
Ethernet Port : Double-Isolated Gigabit LAN
Uninterruptible Power Supply (UPS) : Yes (Super Capacitors)
Power Consumption : Play (40W), Peak (70W), Standby (3.5W)
CD Ripping Capability : N/A

技术规格

电源：1x50W（CPU）、2x35W（4 核）用于数字输出板
CPU：英特尔低功耗四核
RAM：8GB
库存储容量：2X 2.5 英寸隔间（用户可安装存储）
系统和缓存的 SSD：480GB NVME
数据 USB 端口：2X USB 3.0（后置）
软件套件：Aurender Conductor
以太网端口：双隔离千兆 LAN
不间断电源 (UPS)：是（超级电容器）
功耗：播放（40W）、峰值（70W）、待机（3.5W）
CD 翻录能力：N/A

Audio Specifications

Analog Outputs : N/A
DAC Chipset : N/A
Audio Word Clock : OCXO
Analog Outputs Supported Format : N/A

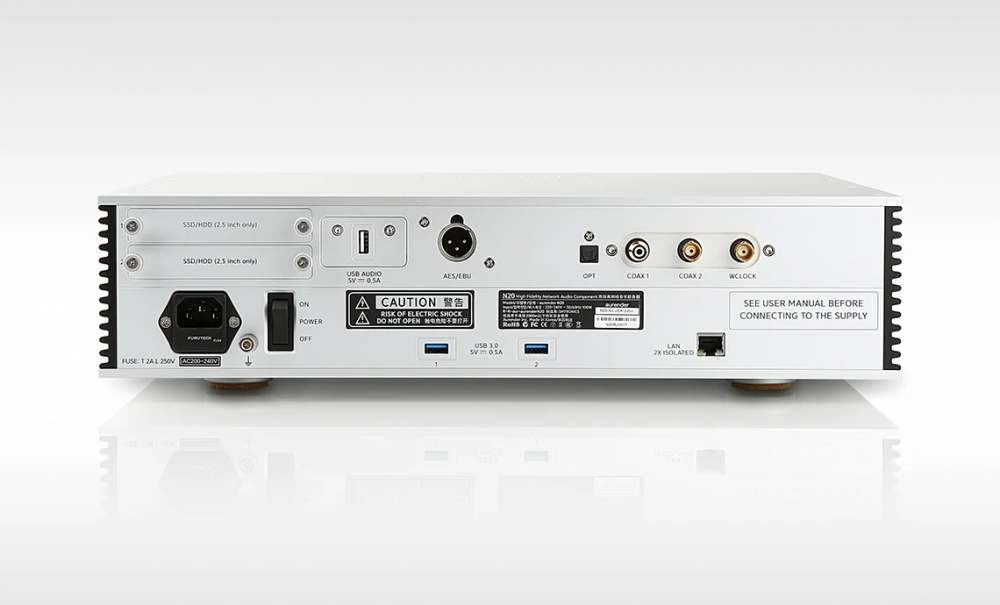

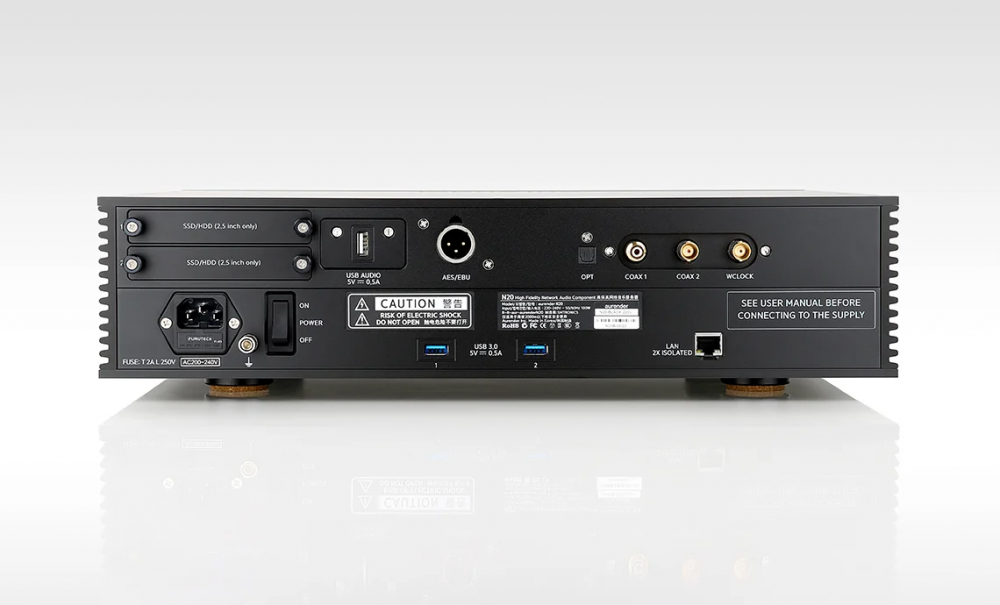

Digital Outputs : USB Audio (Dedicated), AES/EBU (OCXO Controlled), BNC Coax SPDIF (OCXO Controlled), RCA Coax SPDIF (OCXO Controlled), Optical/TosLink SPDIF (OCXO Controlled)
USB Output Supported Format : PCM up to 768kHz, DoP up to DSD256, up to DSD 512 Native for USB output
SPDIF & AES/EBU Output Supported Format : PCM: Up to 32-bit / 192 kHz; DSD: Up to DSD64 via DoP
Digital Inputs : N/A
Headphone Section : N/A
Master Clock Input : Coaxial BNC 75Ω – 10MHz, 12.8MHz, 44.1-48kHz (multiples from 1-512x)
MQA Support : MQA Core-Decoder Upgrade Available
Compatible Formats : DSD (DSF, DFF), WAV, FLAC, AIFF, ALAC, M4A, APE and others
DSD-to-PCM Conversion : DSD64/128/256/512 to 88.2/176.4kHz

音频规格

模拟输出：N/A
DAC 芯片组：N/A
音频字时钟：OCXO
模拟输出支持格式：N/A
数字输出：USB 音频（专用）、AES/EBU（OCXO 控制）、BNC 同轴 SPDIF（OCXO 控制）、RCA 同轴 SPDIF（OCXO 控制）、光纤/TosLink SPDIF（OCXO 控制）
USB 输出支持格式：PCM 最高 768kHz、DoP 最高 DSD256、最高 DSD 512 原生 USB 输出
SPDIF 和 AES/EBU 输出支持格式：PCM：最高 32 位/192 kHz； DSD：通过 DoP 最高可达 DSD64
数字输入：N/A
耳机部分：N/A
主时钟输入：同轴 BNC 75Ω – 10MHz、12.8MHz、44.1-48kHz（1-512x 的倍数）
MQA 支持：MQA 核心解码器升级可用
兼容格式：DSD（DSF、DFF）、WAV、FLAC、AIFF、ALAC、M4A、APE 等
DSD 到 PCM 转换：DSD64/128/256/512 到 88.2/176.4kHz
