Home theater at the highest level

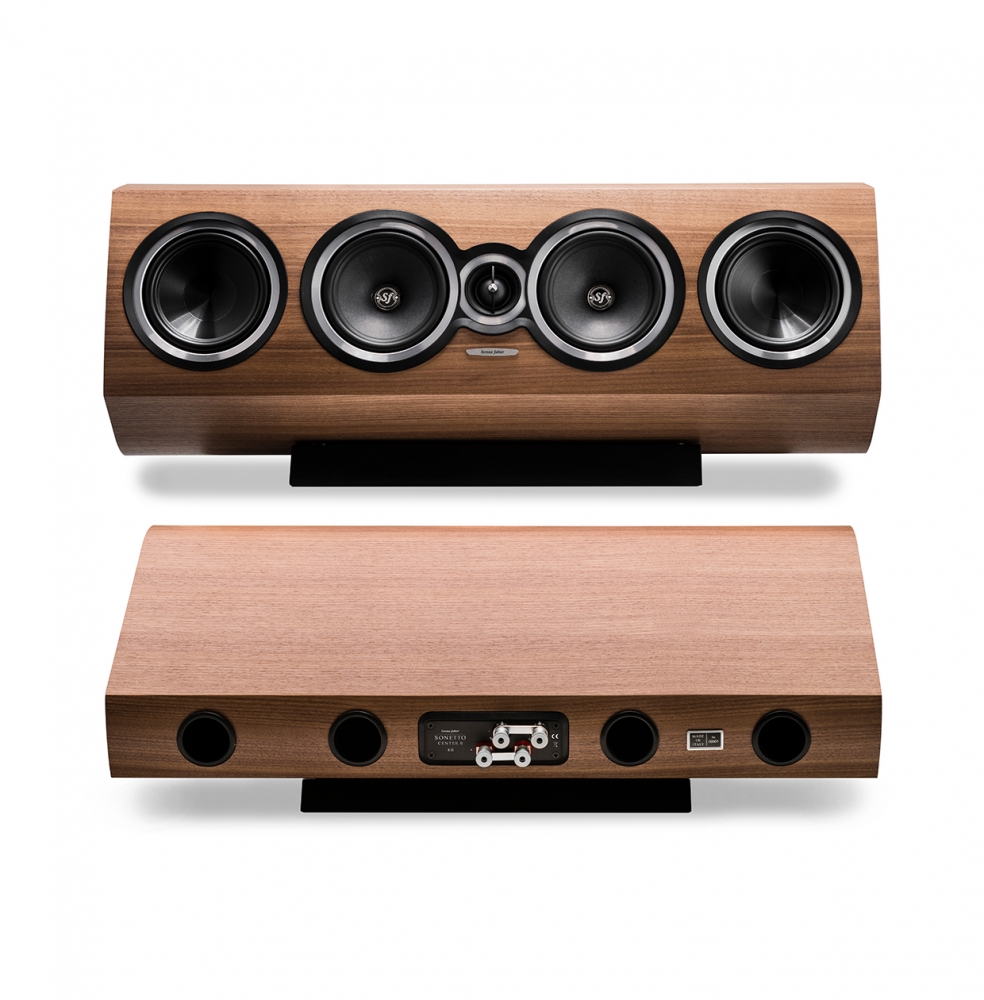

The new entry of the line, sonetto center ii is the largest high performance 3-way center-channel speaker, featuring 2 x 150 mm woofers, for an optimal lowest frequencies reproduction. The perfect center channel for people who demand the very best in home theatre performance.

最高级别的家庭影院

该系列的新产品 sonetto center ii 是最大的高性能 3 路中置声道扬声器，配备 2 个 150 毫米低音扬声器，可实现最佳的最低频率再现。对于追求最佳家庭影院性能的人来说，这是完美的中置声道。

Italian traditional culture

Sonus faber always found its inspiration in the highest Italian culture. This time we entrusted the history of our Literature for representing the new Sonetto Collection. The Sonetto (Sonnet) is the most ancient Italian Poetic structure. Originally it meant ``Sound, Melody``and was traditionally used to accompany music performances. The first step in the Sonus faber world brings the name of the foundations of Literature history in Italy and in the rest of the world.

意大利传统文化
Sonus faber 总是从最崇高的意大利文化中寻找灵感。这次，我们委托文学史来代表新的 Sonetto 系列。Sonetto（十四行诗）是最古老的意大利诗歌结构。最初的意思是“声音、旋律”，传统上用于伴奏音乐表演。Sonus faber 世界的第一步就是将意大利和世界其他地区文学史的基础名称带入其中。

Features

The largest center channel of the sonetto collection, an emotional voice ready to surprise at the first listening.

特点
Sonetto 系列中最大的中置声道，充满感情的声音，初听便令人惊喜。

Specifications

规格

System

系统

3-way horizontal loudspeaker system. Vented box design.
3 路水平扬声器系统。通风箱设计。

Loudspeakers

扬声器

Tw: high definition dad™ driver. Dkm dome diaphragm, neo magnet system. Ø 29mm

Tw：高清 dad™ 驱动器。Dkm 圆顶振膜，Neo 磁体系统。Ø 29mm

Md: ultra-free compression basket. Custom diaphragm made with cellulose pulp and other natural fibers, ø 2 x 150mm cone drivers.

Md：超自由压缩篮。定制振膜采用纤维素纸浆和其他天然纤维制成，直径 2 x 150mm 锥形驱动器。

W: ultra-free compression basket. Custom diaphragm made with cellulose pulp and other natural fibers, ø 2 x 150mm cone drivers.

W：超自由压缩篮。定制振膜采用纤维素纸浆和其他天然纤维制成，直径 2 x 150mm 锥形驱动器。

Cross-over

分频器

220hz - 1.650hz

Frequency response

频率响应

42 hz – 25.000 hz

Sensitivity

灵敏度

91 db spl (2.83 v/1m)

Nominal impendance

标称阻抗

4 ohm

Suggested amplifier power output

建议放大器功率输出

50w – 300w, without clipping
50w – 300w，无削波

Long-term max input voltage (iec 268-5)

长期最大输入电压 (iec 268-5)

22 v rms

Dimensions (hxwxd)

尺寸 (hxwxd)

289 x 743 x 409 mm

12 x 30 x 16 in

Weight

重量

16,2 kg ea – net weight

35,7 ib ea – net weight
16.2 kg ea – 净重
35.7 lb ea – 净重
