BLAST FROM THE PAST

Sonus faber is not new to the arena of subwoofer design and engineering. The first subwoofer project, the Gravis FB100, was launched back in 1986, later followed Cremona M subwoofers. Today, with the new Gravis collection, Sonus faber returns to its roots, incorporating cutting-edge technology while maintaining its identity of natural sound and quality Italian hand-craftsmanship.

THE COMPLETION
OF THE PINNACLE

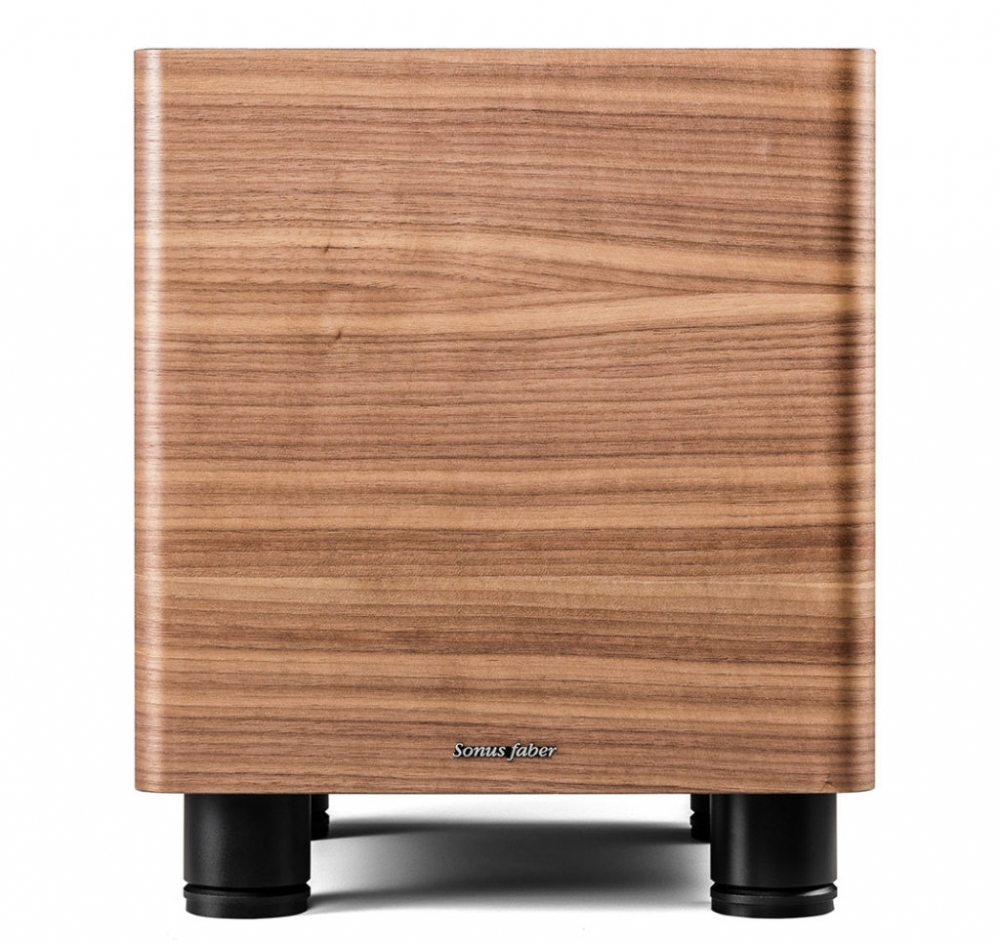

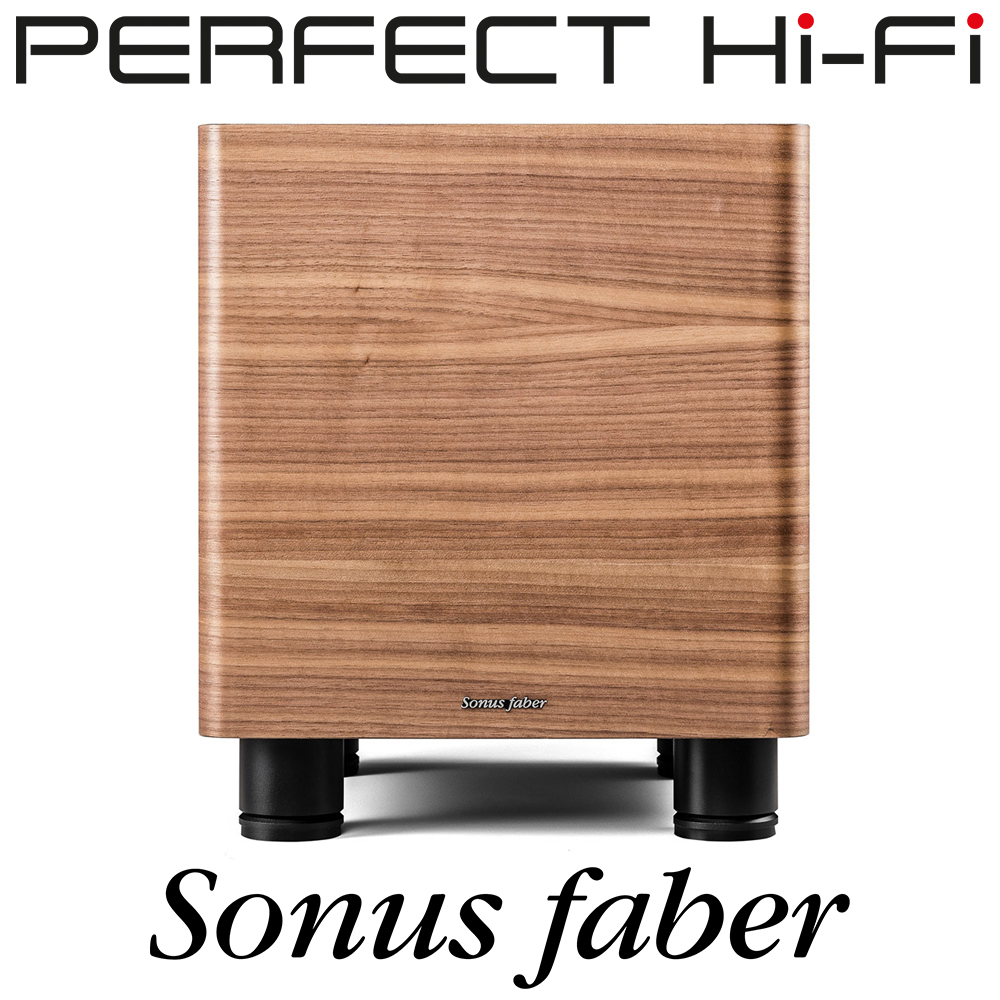

Gravis I and II are the smaller subwoofers of the Gravis Collection.
These speakers have been designed to be easily integrated into every living environment and ideally matched with almost every kind of audio and audio/video system. In addition Gravis I and II are the perfect match for their loudspeaker siblings: the Sonus faber Sonetto Collection.

SYSTEM

Closed box loading, down firing active subwoofer

SPEAKERS

1 x 210mm (8”) very long throw, treated paper cone, wide rubber surround woofer

POWER

AMPLIFICATION

High linearity Class AB
150 W rms, 250 W (peak)

FREQUENCY

FREQUENCY RESPONSE

From 25/35 Hz to Fc (user adjustable)

VOLTAGE

MAINS INPUT VOLTAGE

Factory selected, 120Vac - 60Hz or 230 Vac - 50 Hz

FUSE

T4.0A (110Vac, 60Hz); T2.0A (230V, 50Hz)
Output signal short circuit
Over-heating
DC fault

CONTROLS

Independent Master and LFE volume controls;
Continuously adjustable Crossover frequency (30 to 120Hz), slope 24dB/oct;
Signal phase inversion switch (0/180°)
Auto switch-on/off (deselectable)

AUDIO SIGNAL INPUTS

LFE (Low Frequency Effect), single phono plug;
Line level signal, single phono plug;
High level signals, Neutrik 4-pole Speakon©

POWER CONSUMPTION

0.5 W (Stand-by)
250W (Rated power)

DIMENSIONS

DIMENSIONS (HxWxD)

334 x 286 x 316 mm including feet
13.1 x 11.2 x 12.4 in including feet

WEIGHT

14.5 Kg
32 lb
