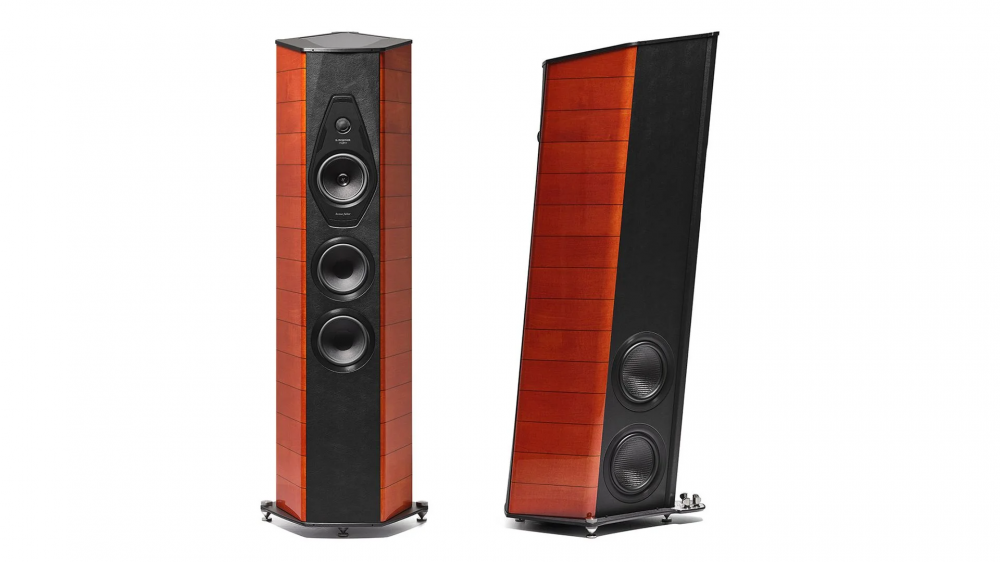

EXCEPTIONAL SOUND WITH A STRIKING PRESENCE

ANNIVERSARY CONCEPT MODEL

Il Cremonese Ex3me’s revolutionary neutral sound enhances the underlying design concepts of the original Il Cremonese through novel electroacoustic innovations.

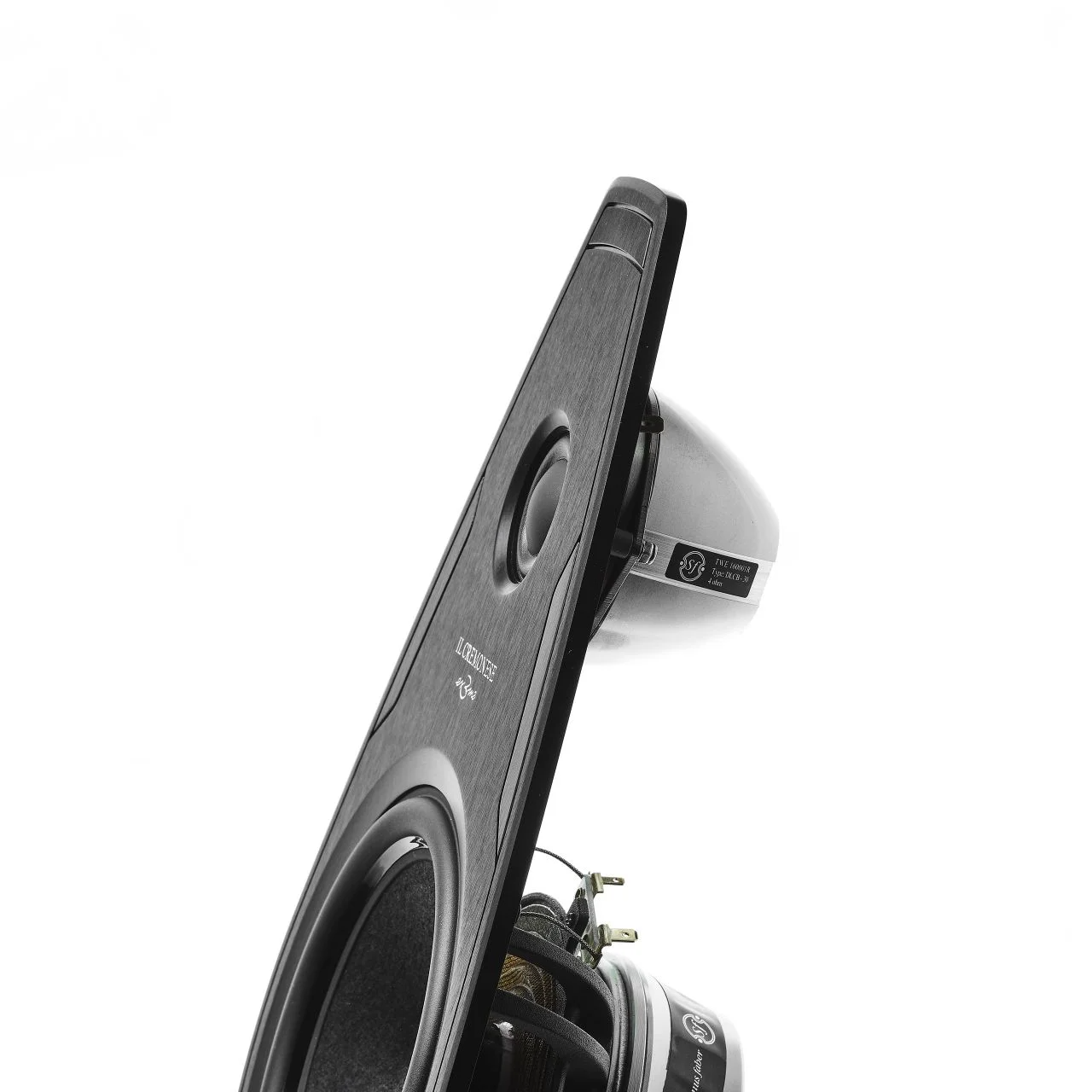

TWEETER

Il Cremonese Ex3me leverages aBeryllium DLC tweeter, which has exceptional transparency and micro dynamics. The Beryllium DLC tweeter delivers highly detailed sound free of coloration, thanks to a custom treatment pioneered by the Sonus faber Research & Development team.

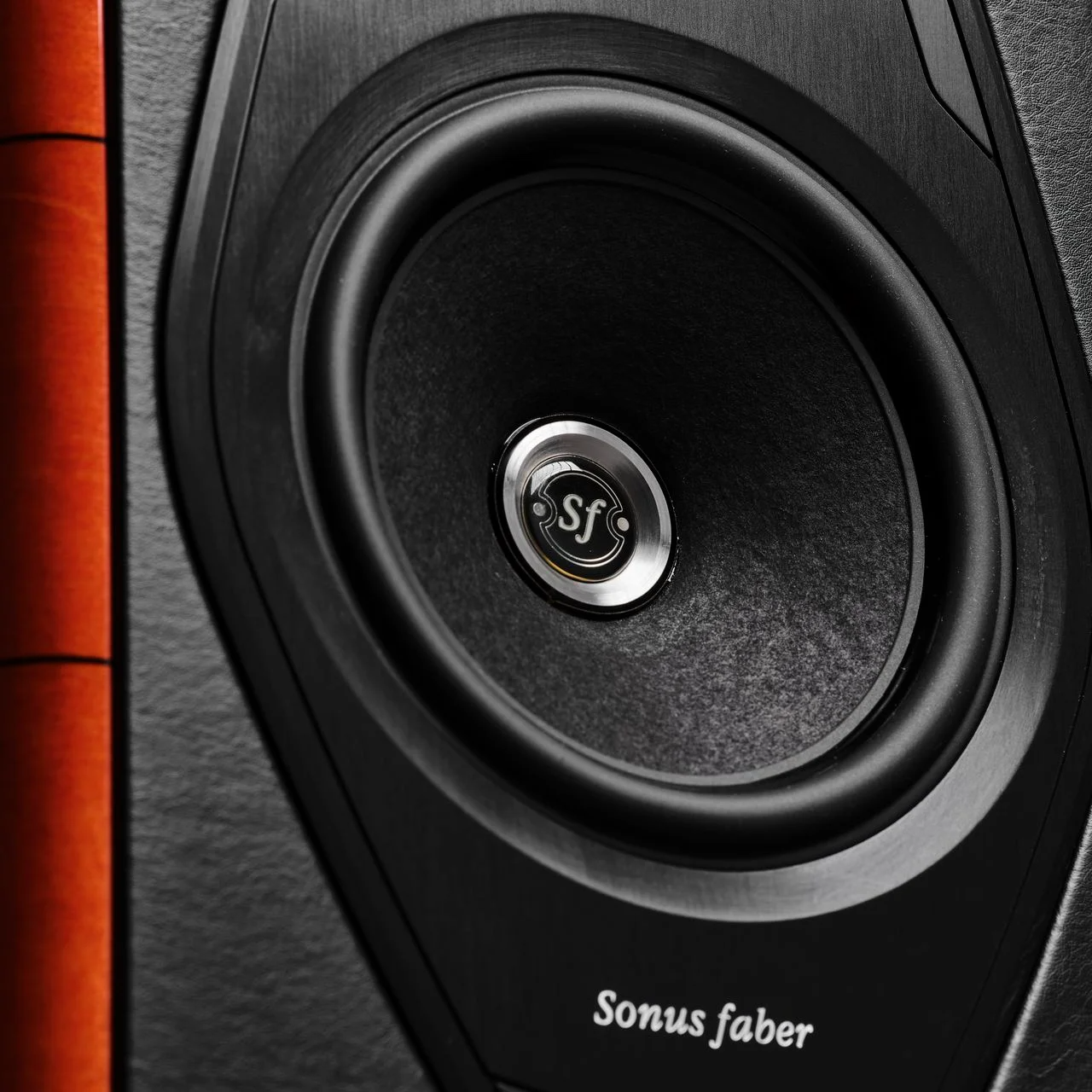

MIDRANGE

The dedicated mid-frequency transducer delivers a clean timbre through the iconic “Voice of Sonus faber” design concept. The midrange driver leverages a combination of natural materials to deliver uncompromising dynamic and true sound.

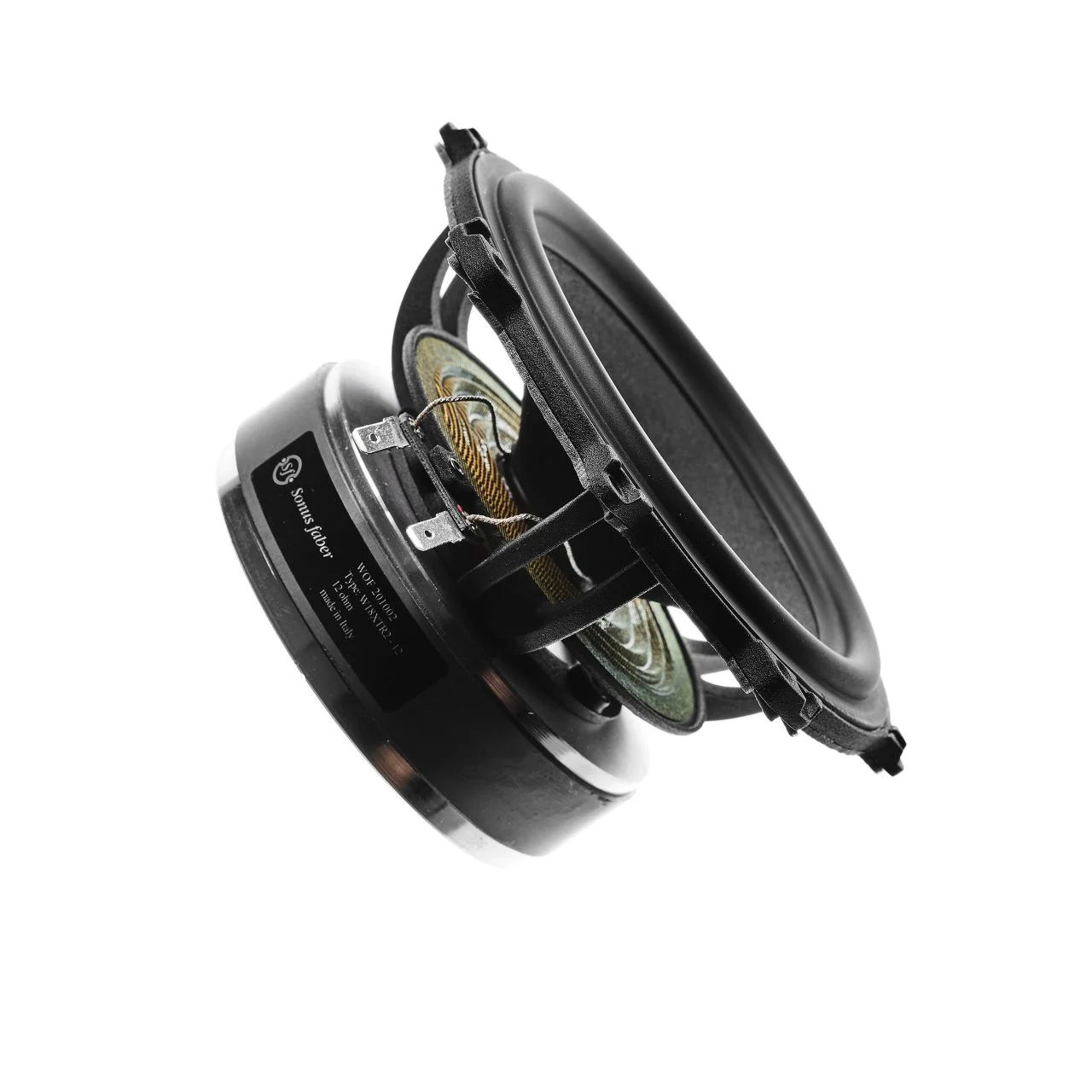

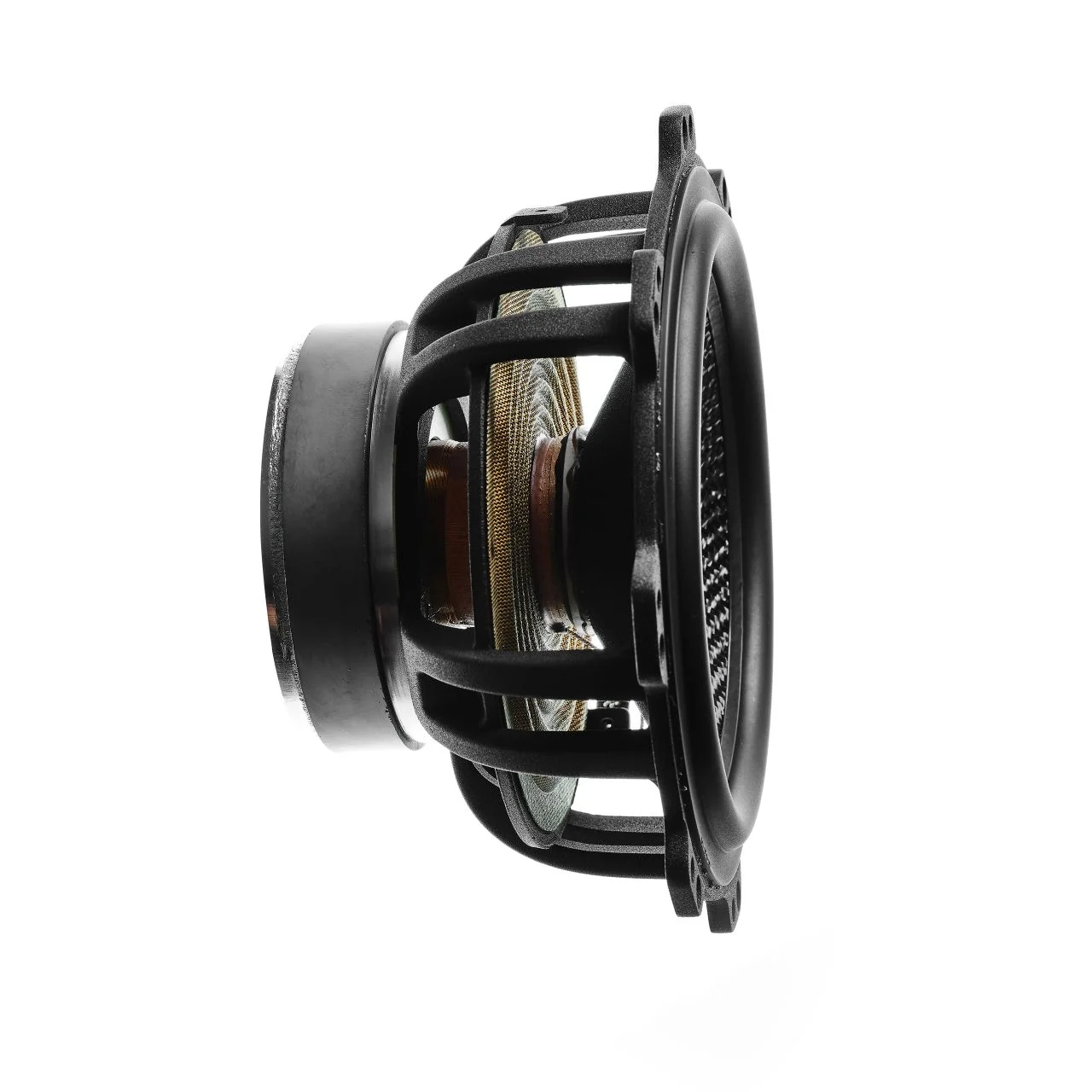

WOOFER

The dual woofers of Il Cremonese Ex3me, each with a diameter of 180 mm, are placed in an independent acoustic chamber, acoustically amorphous and fitted with ‘Stealth Reflex’ ducts. The woofers use a combination of natural and technical materials to deliver transparent and pristine low frequencies.

INFRA-WOOFER

The two side-firing infra-woofers are a new design concept introducedfor Il Cremonese Ex3me. Their diaphragm is made from nanocarbon fiber, sourced for its incredible structural rigidity.

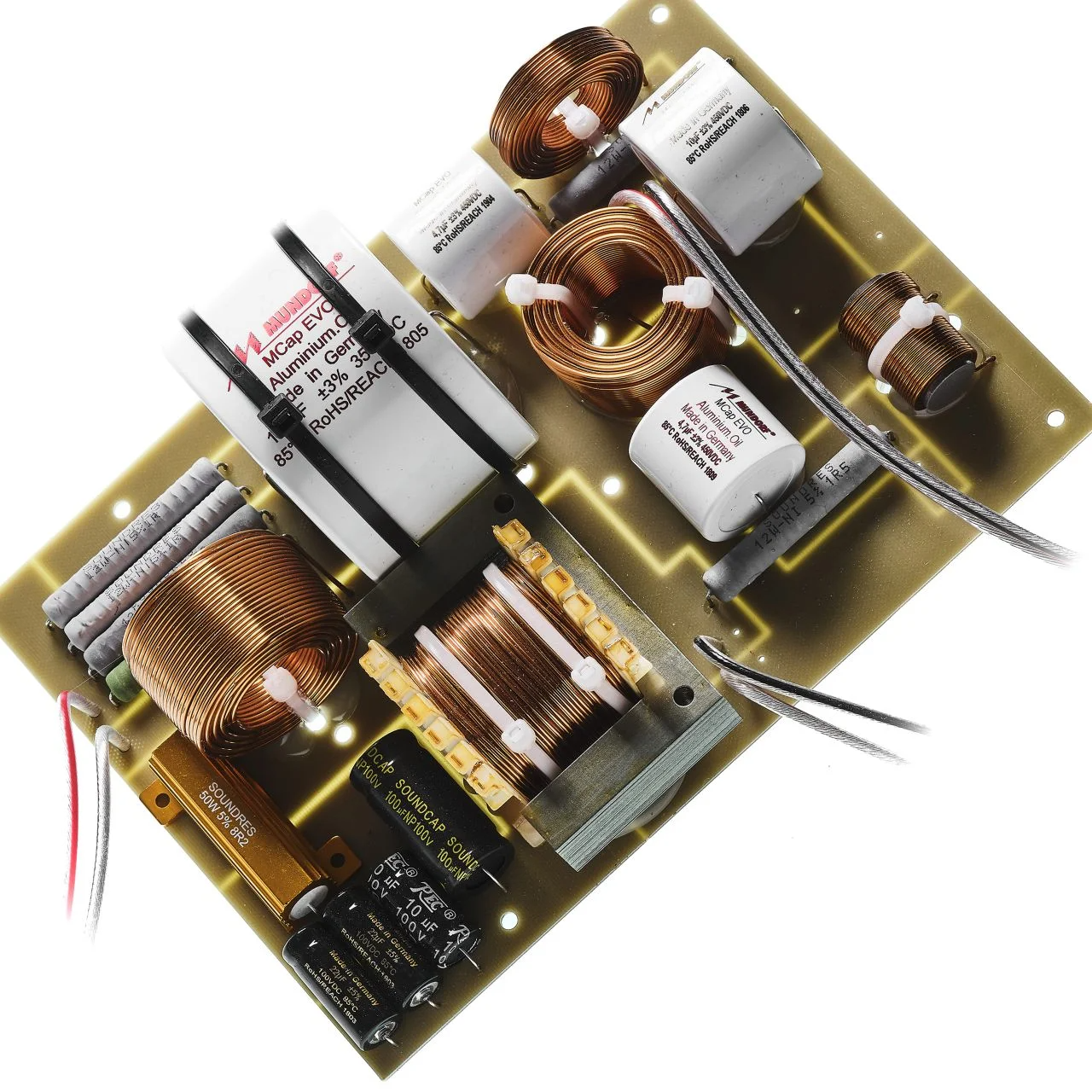

THE CROSSOVER NETWORK

The blend between the Beryllium DLC tweeter and the midrange is obtained courtesy of a totally redesigned mid-high crossover network, using non-inductive resistors and air core inductors. The entire crossover network implements Paracross Topology™, a trademark technology involving a special circuit that makes the crossover less sensitive to radio frequency interference, thereby lowering the noise floor.

CLARITY AND INGENUITY

System

3.5 way, full para-aperiodic vented box

Loudspeakers

Tw: Ø 30 mm, Diamond Like Carbon Beryllium dome diaphragm.
Md: Ø 180 mm, M18 XTR-04 Neodymium Magnet System,
W: Ø 2x180 mm W18XTR-12,
Sw: Ø 2x220 mm Nanocarbon Fiber/Nomex Honeycomb
Long Throw Subwoofer.

Crossover Points

80, 250, 2500 Hz

Premium High-End components

Frequency response

25 Hz – 35000 Hz

Sensitivity

92 dB SPL (2.83V/1 m)

Nominal impedance

4 Ohm

Recommended power amplifier

100W - 800W, undistorted signal

Connectivity

4 connectors binding post: Mid-Hi, Low

Decoupling Systems

 ZVT

Product dimensions (HxWxD)

1449 x 398 x 621 mm / each
57 x 15.6 x 24.5 in / each

Dimensions with packaging (HxWxD)

1770 x 600 x 800 mm / each
69.7 x 23.6 x 31.5 in / each

Weight

84 kg / each
185.2 lb / each

Packaging weight

123,5 kg / each
272.3 lb / each

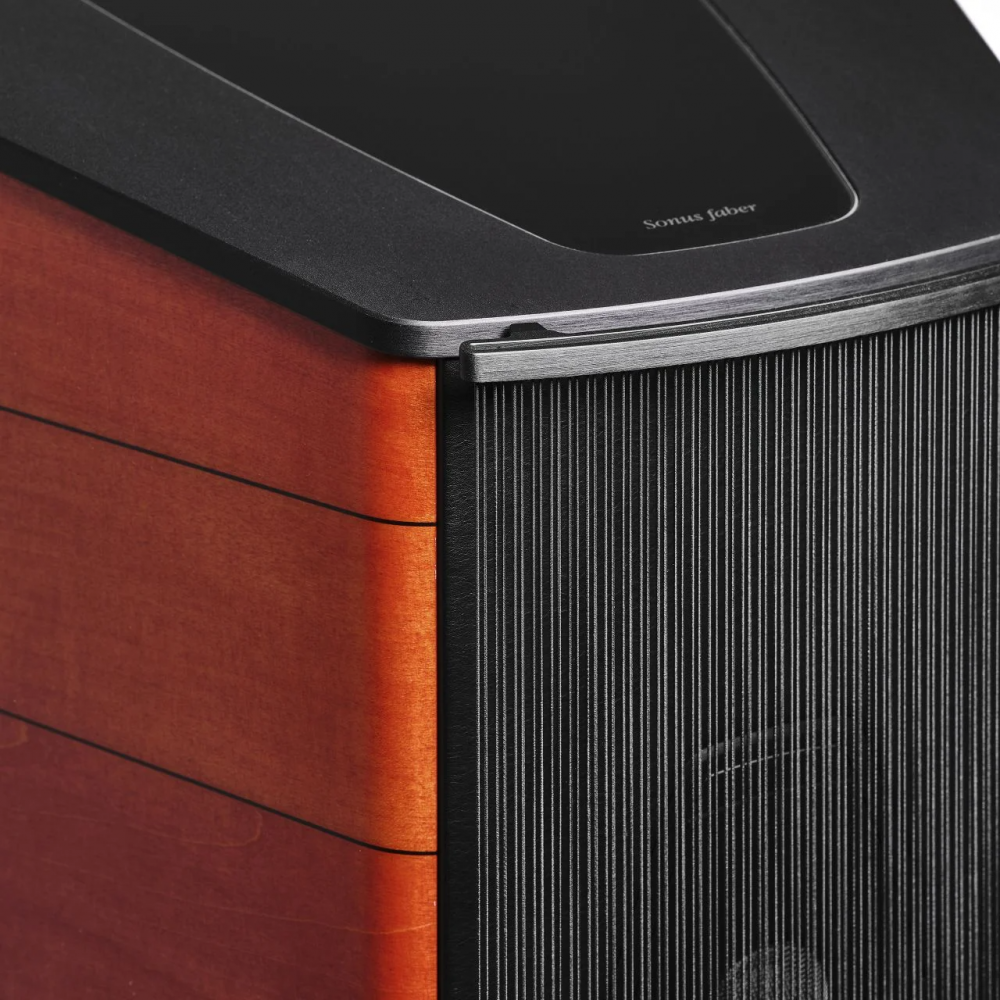

Cabinet

Double curvature - Lute shape

High gloss wood

Black leather

Aluminum
