TECHNICAL SPECIFICATIONS

SYSTEM

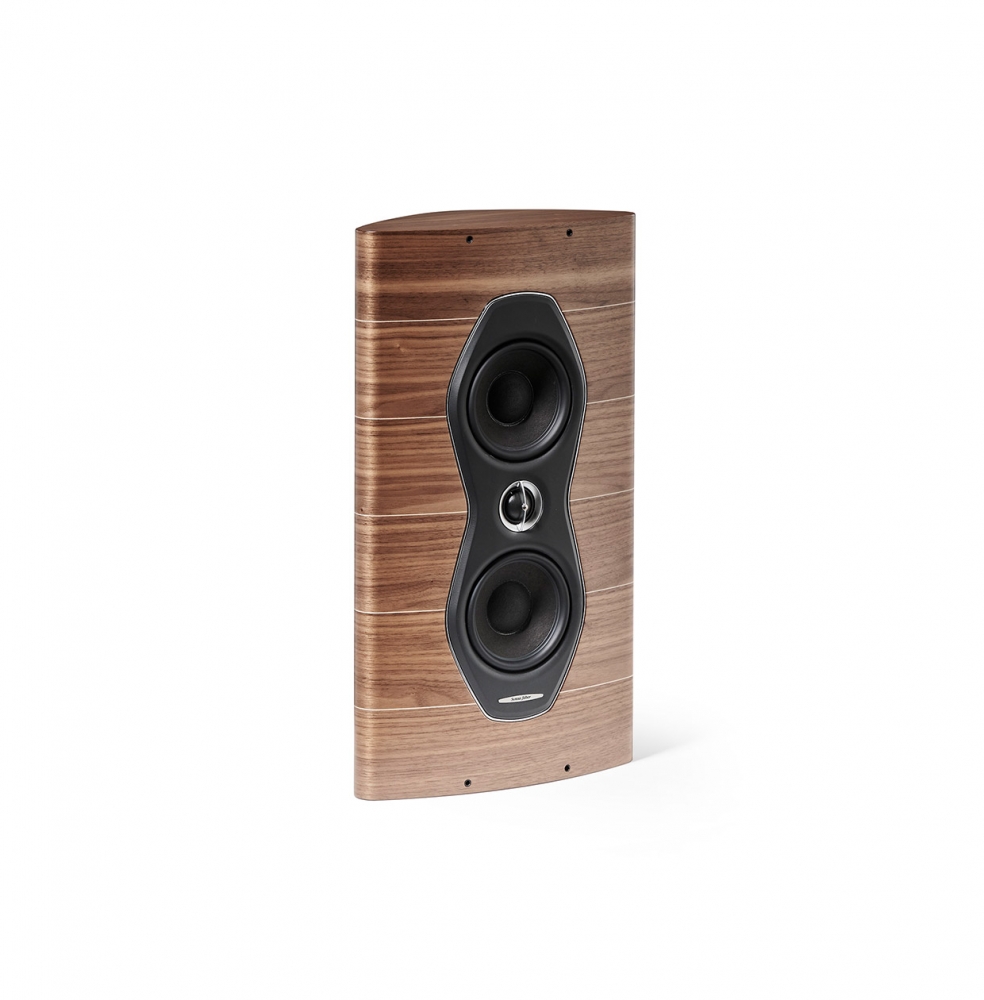

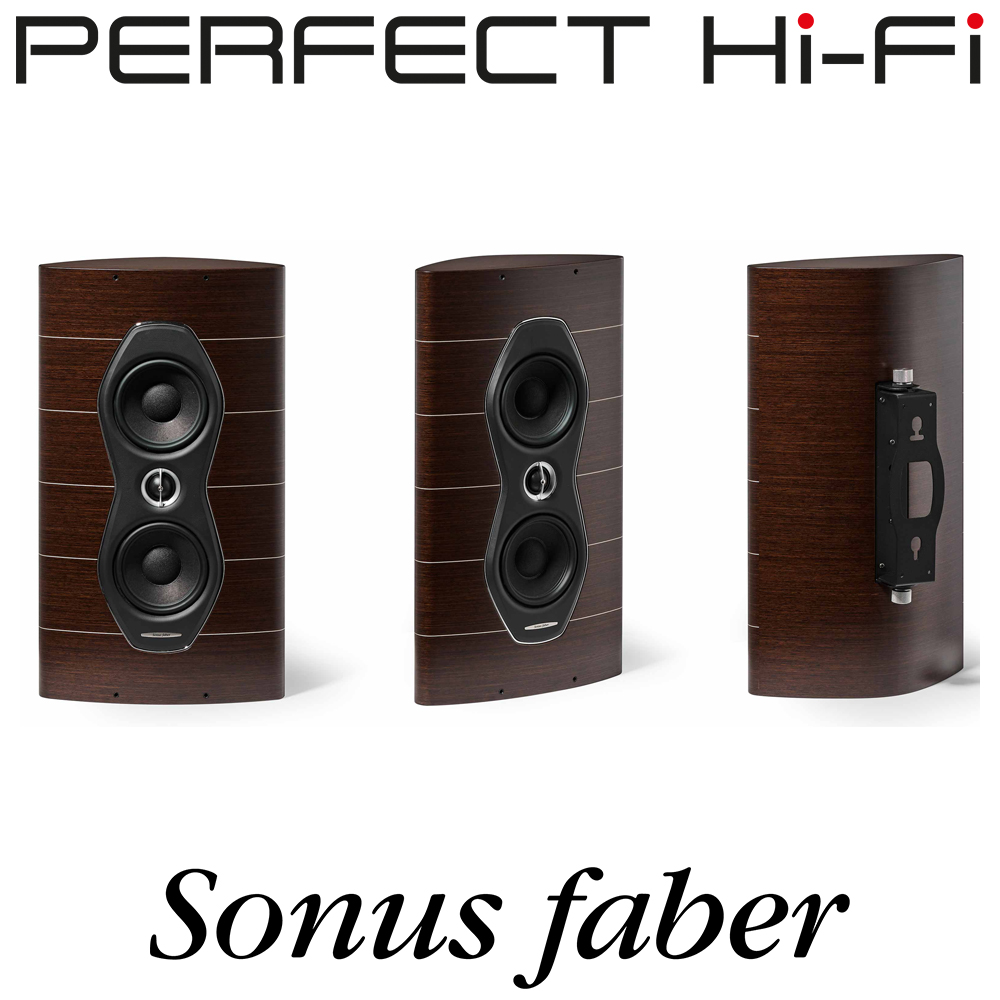

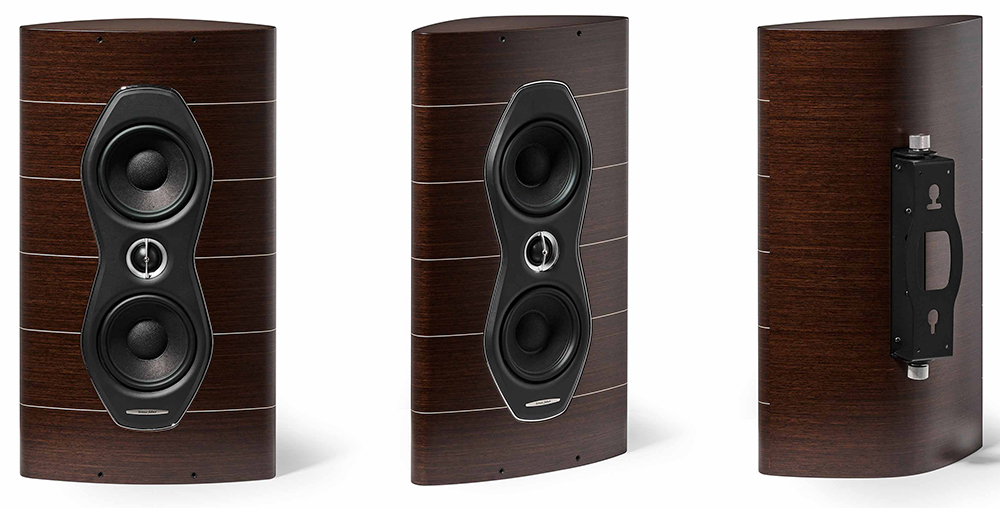

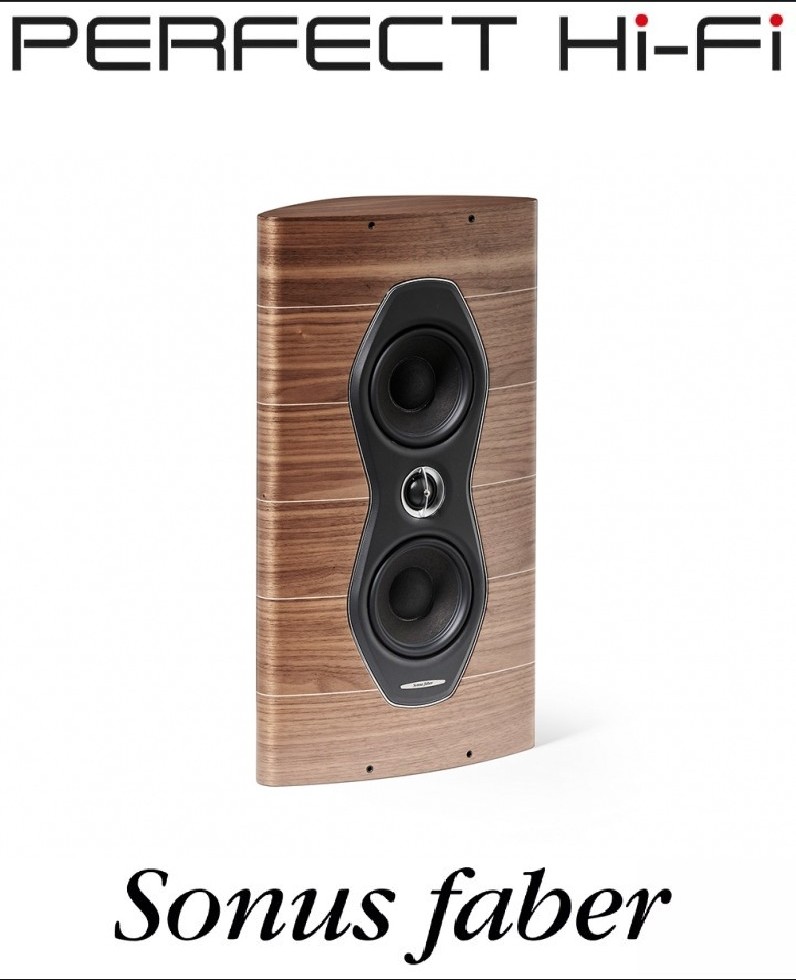

2way, passive radiator, wall mount loudspeaker system.

LOUDSPEAKERS

Tw: H28 XTR3. Neodymium “cup design” motor system with DAD™, Ø 28 mm
Mw: MW15 XTR2-04, CCAW wire on a “eddy current free” voice coil, Ø 150 mm

CROSSOVER

2.500 Hz

FREQUENCY RESPONSE

50 Hz – 35.000 Hz

SENSITIVITY

87 dB SPL (2.83V/1 m)

NOMINAL IMPEDANCE

4 ohm

SUGGESTED AMPLIFIER POWER OUTPUT

35 W – 250 W, without clipping

DIMENSIONS (HXWXD)

562 x 309,3 x 234,5 mm
22.1 x 12.1 x 10.9 in

WEIGHT

9 Kg ea – net weight
19.8 Ib ea – net weight
