Velodyne DB12

The Velodyne DB12 is part of the new Deep Blue (DB) series Sub Woofer platform development based on Velodyne Acoustics technologies with a modern styling, unmatched performance with a dynamic and accurate output. This Platform is a completely new industrial design, new driver technology and a new Amplifier design.

The new DB Sub Woofer line-up is the predecessor of the successful SPL I series, a very small form factor closed box design.

The completely new rigidly braced MDF closed box design with a front firing woofer for impacting performance without any noise from the cabinet. Due to this small form factor it is easy to integrate into you listening set-up. A high excursion driver with massive dual ferrite magnet and optimised internal motor technology using a 4 layer voice coil for maximum output with extremely low distortion, following the Velodyne Acoustics design principles. Superior bass quality, for a deeper, more accurate bass performance. Line-level and speaker-level inputs let you connect this Sub Woofer to just about any home audio system.

You can use the variable crossover and phase control to fine-tune the sub’s output, so the bass will blend in perfectly with the mids and highs coming from your main speakers, tailor the sub’s low-frequency response to the acoustics of your room.

Key Features

• Closed Box Design: Completely new rigidly braced MDF closed box design with a front firing woofer
• 4 Layer Voice Coil: 4 layer voice coil for maximum output with extremely low distortion
• High Excursion Driver: High excursion driver with massive dual ferrite magnet

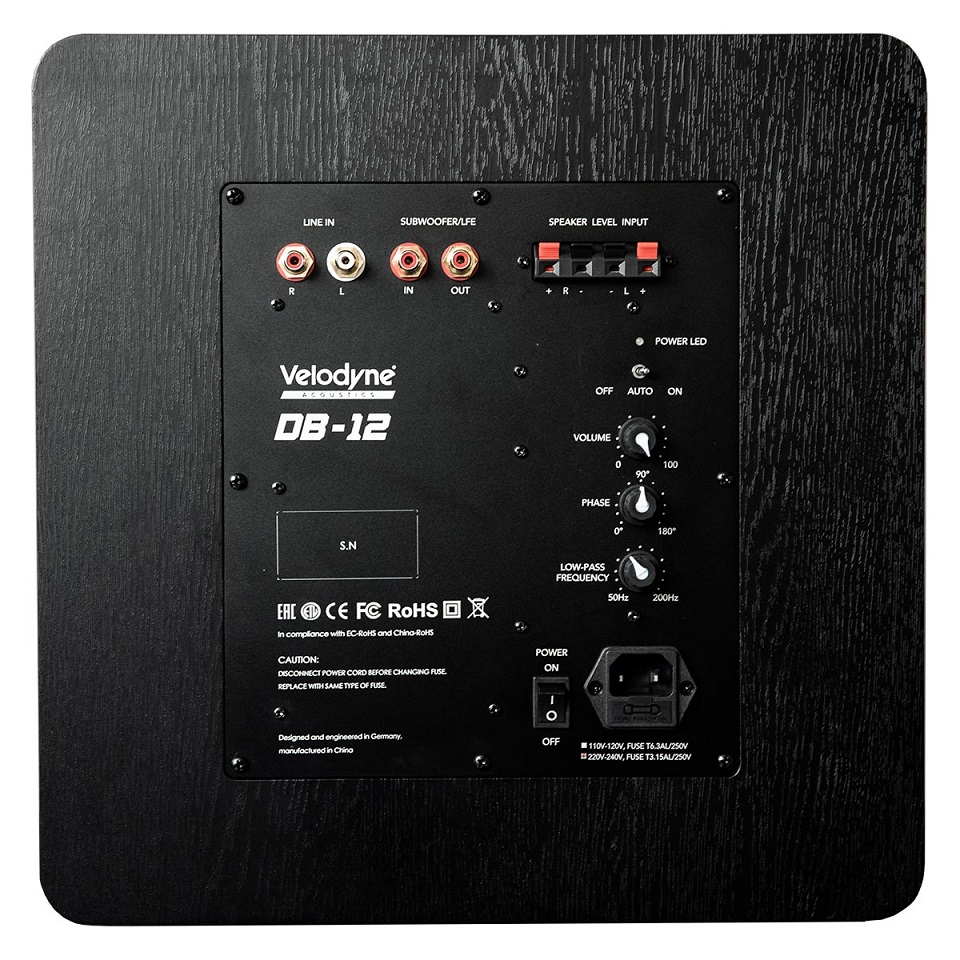

• High Flexibility: Line-level and speaker-level inputs for maximum flexibility

SPECIFICATION :

Driver 12″ forward firing Amplifier Class AB 850 watts dynamic 350 watts RMS power Frequency Response: Overall Frequency Response: (± 3 dB) 15 – 250 Hz 26 – 140 Hz Low Pass Crossover 50 Hz to 180 Hz (12 dB/Octave) Phase 0 to 180 degrees Cabinet Design MDF Closed Box with 52mm / 2” front Baffle Magnet Structure Dual ferrite magnet motor Woofer 12” high excursion double vented basket driver with PP inforced Membrane Voice Coil Four Layer 2,5″ / 65mm Voicecoil Input GoldPlated Line in Stereo RCA, LFE in, Nickel Plated Highlevel Output Gold plated LFE /RCA Power Selector Off / Auto / On Finishes Black Dimensions (W/H/D) (includes feet and connectors) 35 x 37 x 38,8 cm Weight (approx) 13 kg Shipping Weight (approx) 14,8 kg
