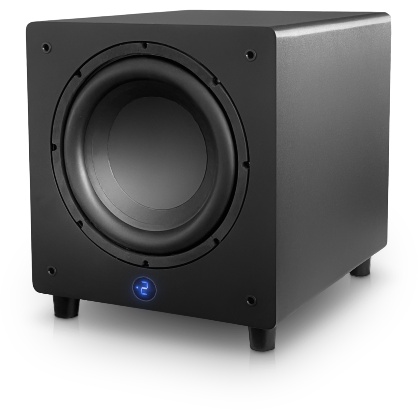

Velodyne Acoustics Impact X
These powerful subwoofers combine efficient front-firing drivers with a down-firing or rear-firing bass reflex port.
The Impact X series creates a lasting impression with amazing low frequency sound. The subwoofers’ attractive MDF enclosure in black and white finish also blends beautifully with modern interiors. The music and home theater experience in specific from the smallest possible package benefits enormously from the completely redesigned 10- and 12-inch drivers, which set new standards in this price range. A highly efficient Class D amplifier, along with core technologies from Velodyne Acoustics, minimizes distortion and makes amazing bass performance possible.
Now, a 15-inch subwoofer also expands the Impact X line. It features a special flow-optimized rear slot design that is used as a bass reflex. With a lower frequency limit of 19 Hertz and 9 DSP modes that also bring room modes under control, it is especially designed for demanding home theater applications and large living rooms.
Features
- Active 10-, 12- and 15-inch drivers of the three models deliver powerful low frequency sound with the bass reflex port on the bottom or back.
- Nine DSP presets adjustable via remote control on the 15-inch model (four on Impact X 10 and 12 inches).
- With 600 watts of maximum power (1,000 watts on the 15-inch model), the classic Class D amplifier provides enough power for the grand home theater experience.
- Anti-clipping circuitry to limit amplifier distortion.
Driver | 12″ front firing driver |
---|---|
Amplifier Class D | 600 watts dynamic 300 watt RMS |
Overall Frequency Response: (± 3 dB) | 29 – 180 Hz |
Overall Frequency Response: (± 10 dB) | 23 – 250 Hz |
Low Pass Crossover | 50 Hz to 180 Hz (12 dB/Octave) |
Phase | 0 / 180 degrees |
Cabinet Design | 20mm MDF |
Magnet Structure | Dual ferrite magnet motor |
Woofer | 12″ high excursion double vented basket driver with reinforced paper Membrane |
Voice Coil | Four Layer 2″ / 52mm Voicecoil |

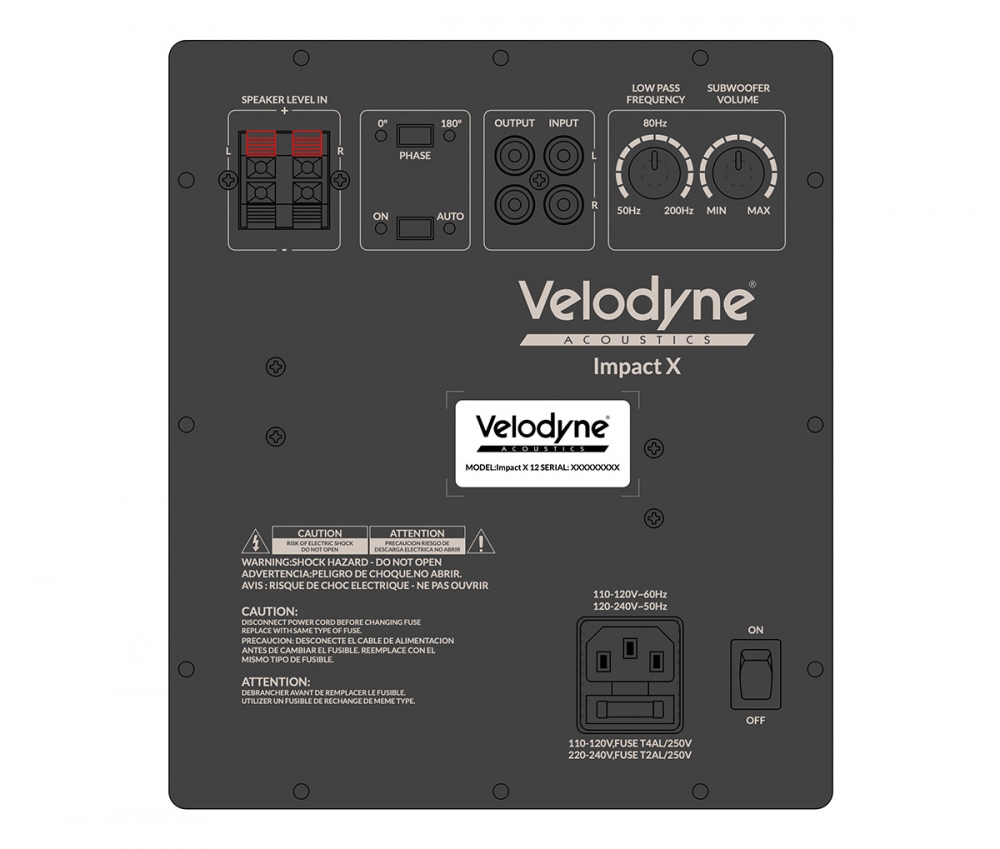

Input | Gold plated Stereo/LFE RCA, Nickel plated High level in |
Output | Gold plated Stereo/LFE RCA |
Power Selector | Off / Auto / On |
Finishes | Black/white |
Dimensions (W/H/D) (includes feet and connectors) | 36cm x 42cm x 51cm |
Weight (approx) | 18kg |
Shipping Weight (approx) | 20kg |
